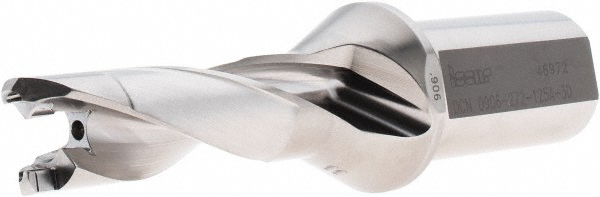

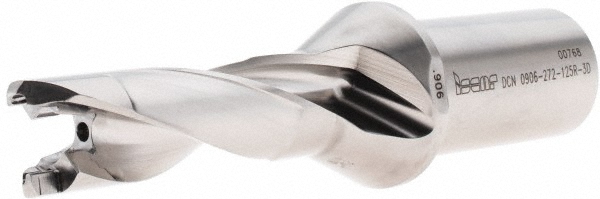

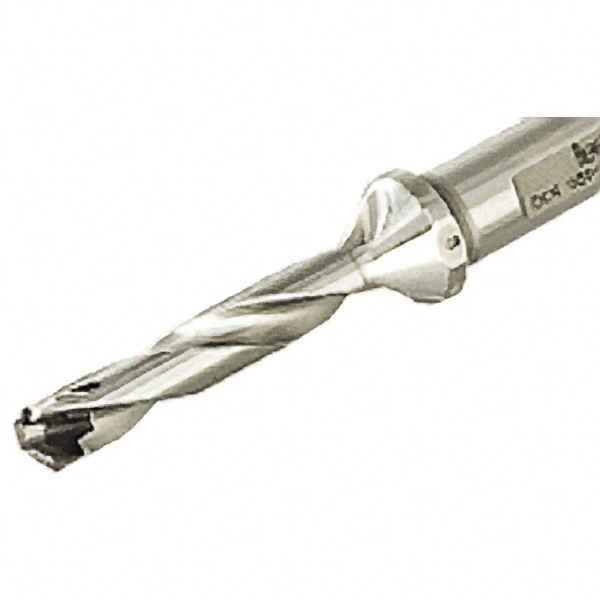

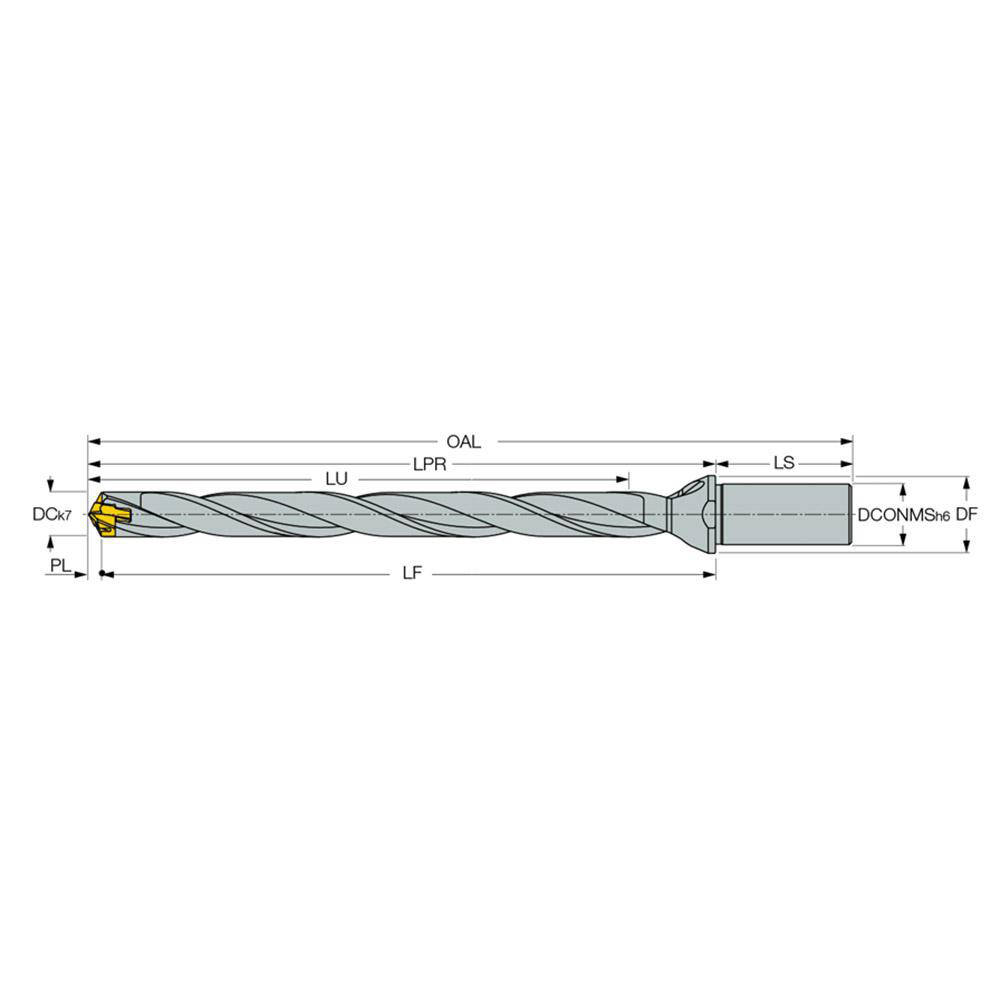

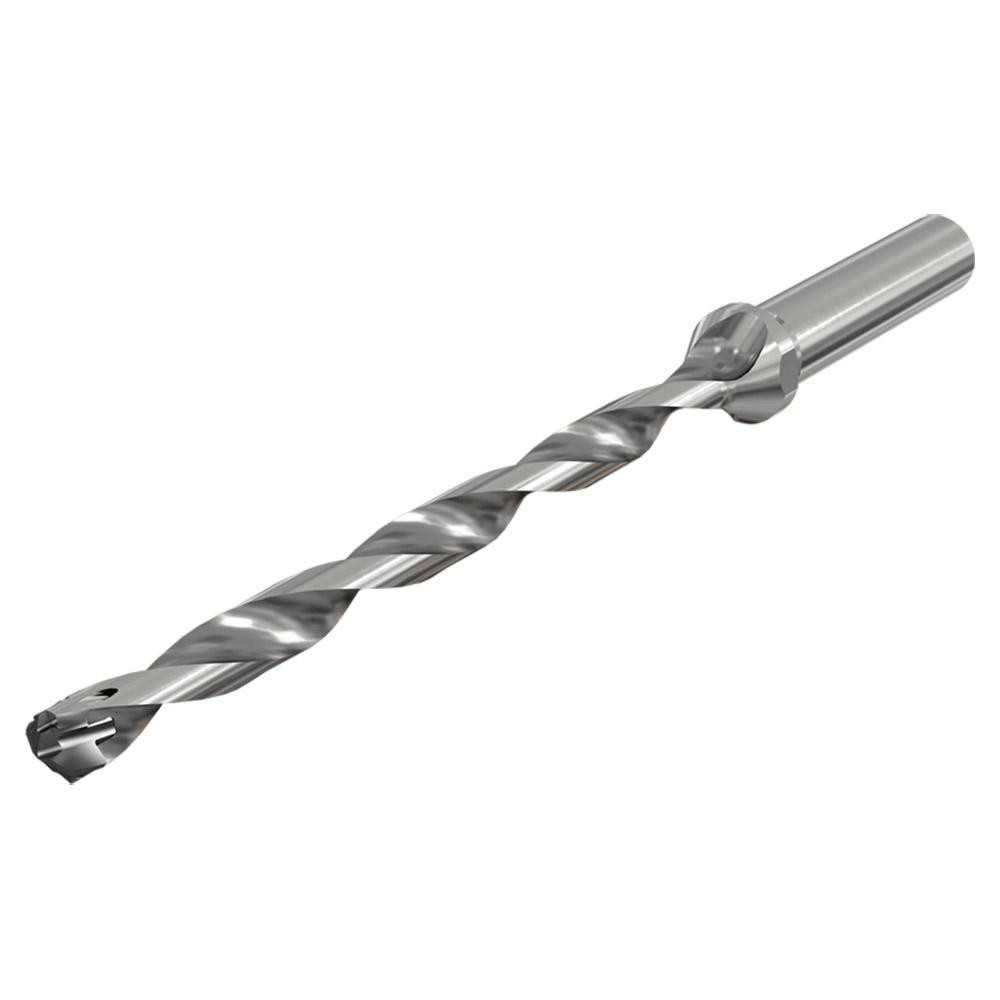

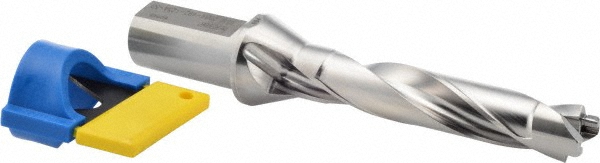

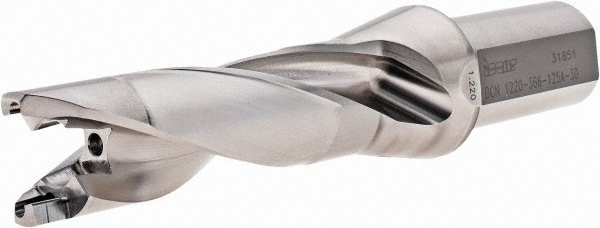

Uses ICP Inserts, 19.84 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.2200 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.2560 |
| Maximum Drill Depth (Inch) | 14-55/64 |
| Maximum Drill Depth (Decimal Inch) | 14.8600 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 8.0000+ |
| Compatible Insert Style | ICP |
| Overall Length (mm) | 19.84 |
| Series | DCN |
| Toolholder Style | DCN |
| Flute Length (Decimal Inch) | 14.8600 |
| Body Length (Decimal Inch) | 17.48 |
| Shank Length (Decimal Inch) | 2.3600 |
| Tool Application | Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| MSC Number | MSC# 15888167 |
