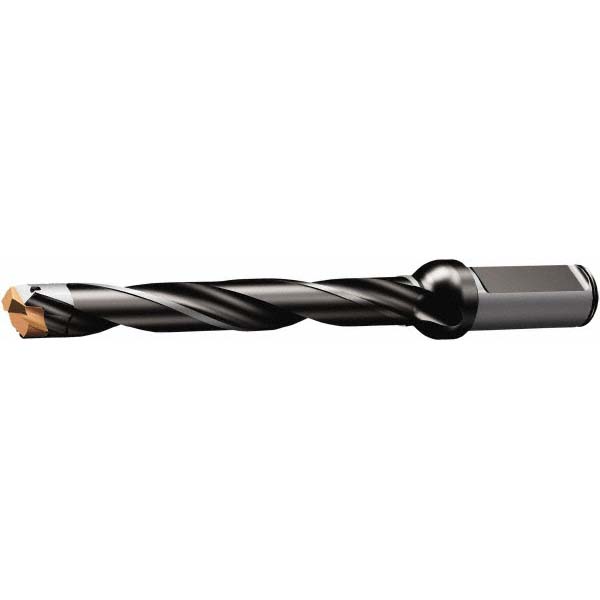

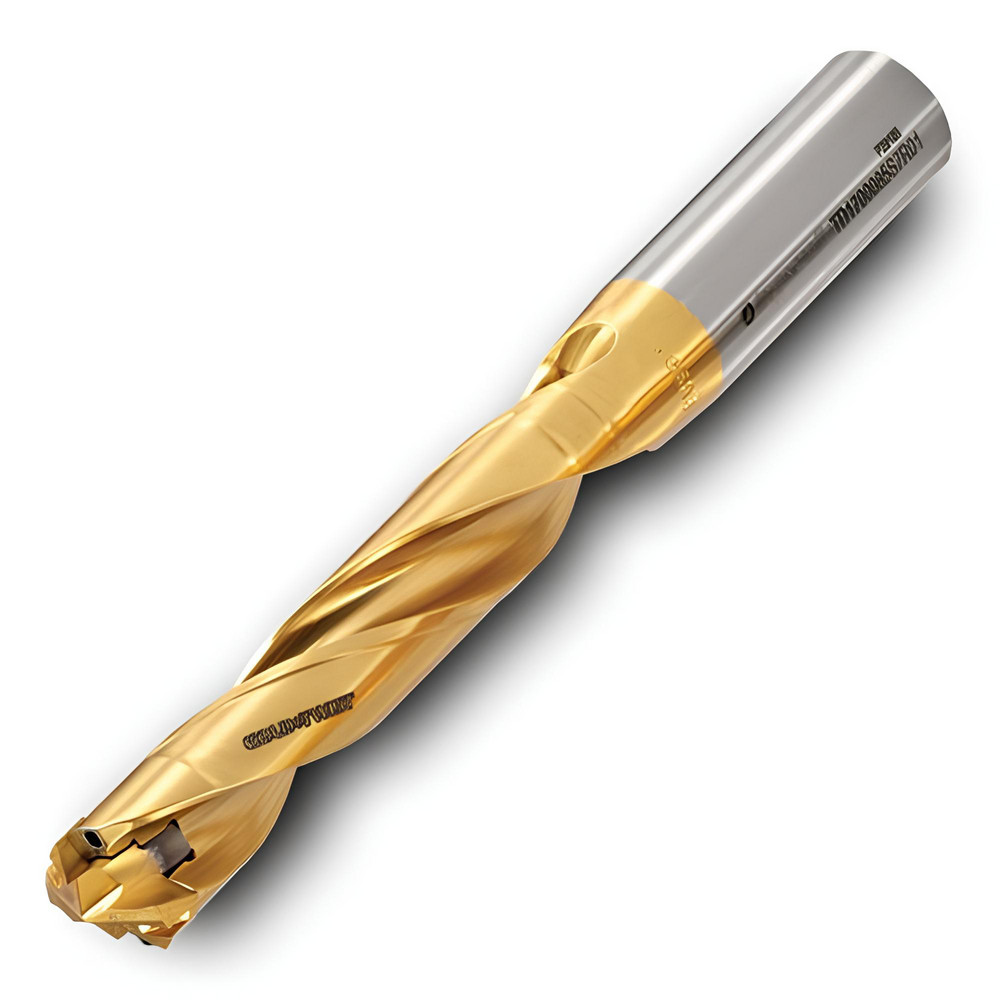

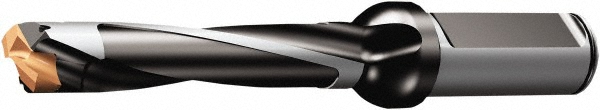

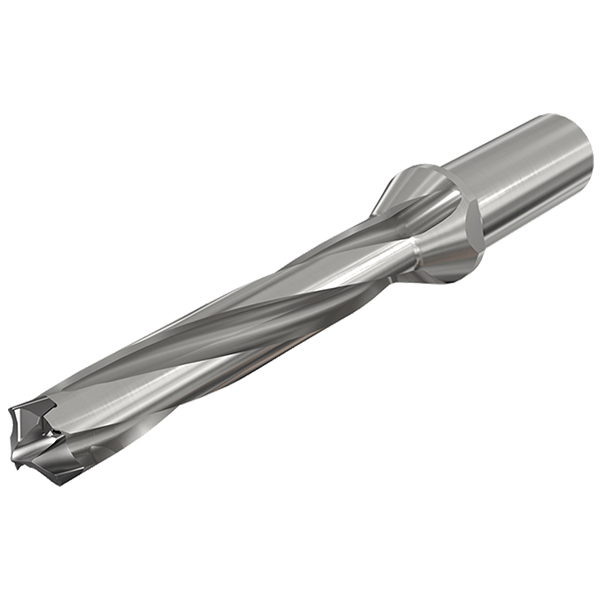

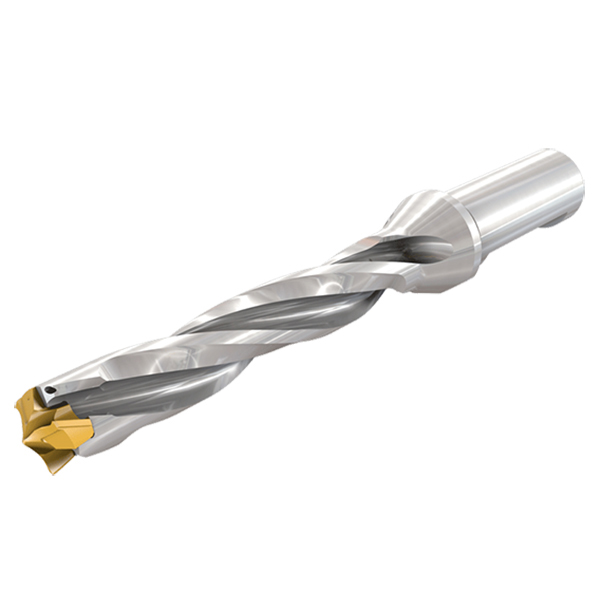

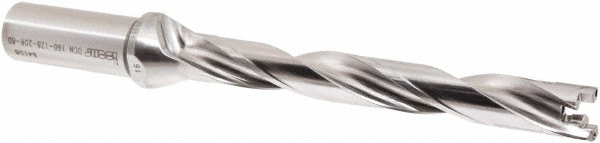

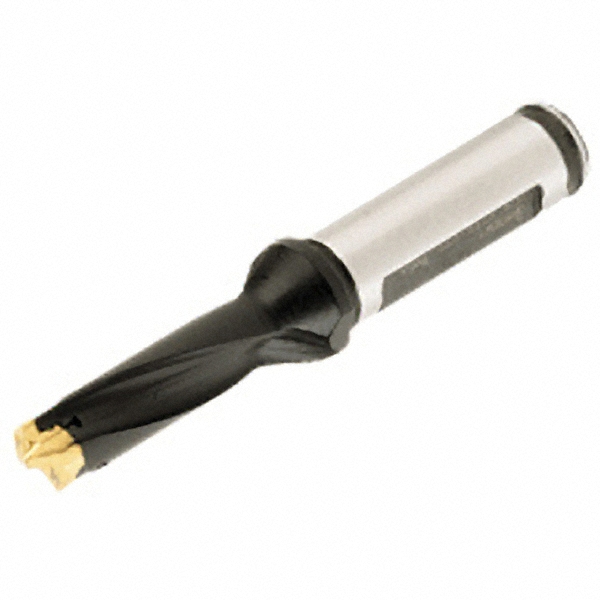

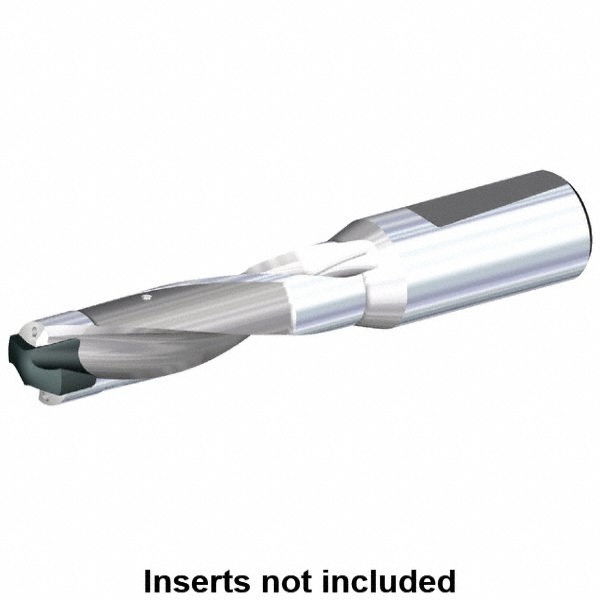

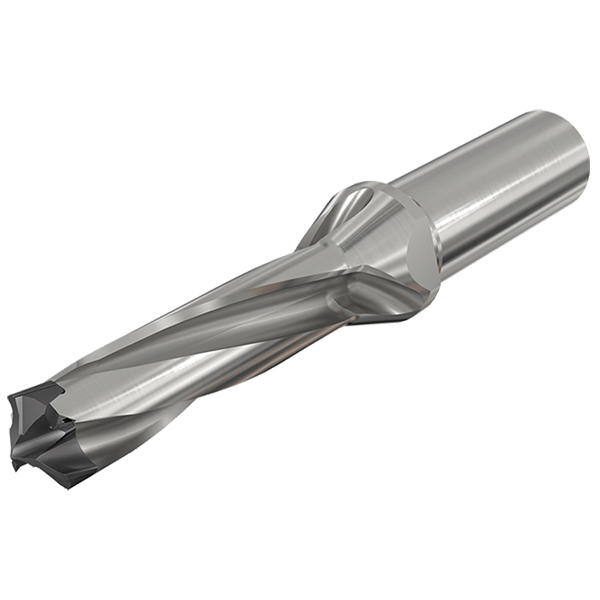

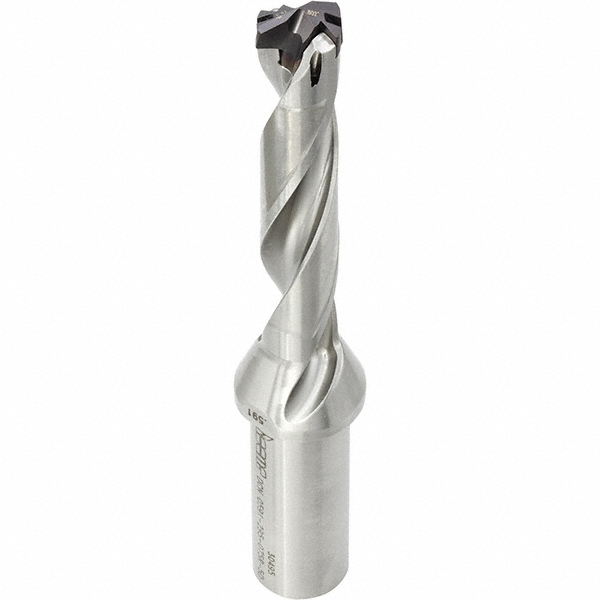

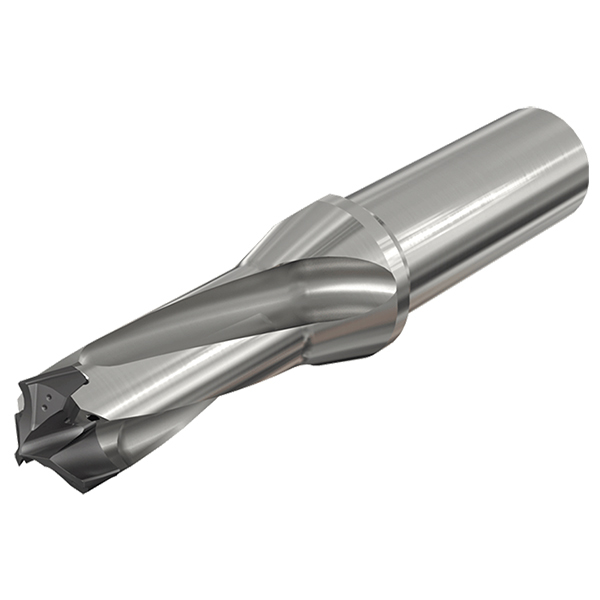

Uses H3P Inserts, Seat Size 16, 107.3 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
|---|---|
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 16.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.6654 |
| Maximum Drill Depth (mm) | 32.00 |
| Maximum Drill Depth (Decimal Inch) | 1.2598 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Seat Size | 16 |
| Shank Diameter (mm) | 20.00 |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.5000 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | H3P |

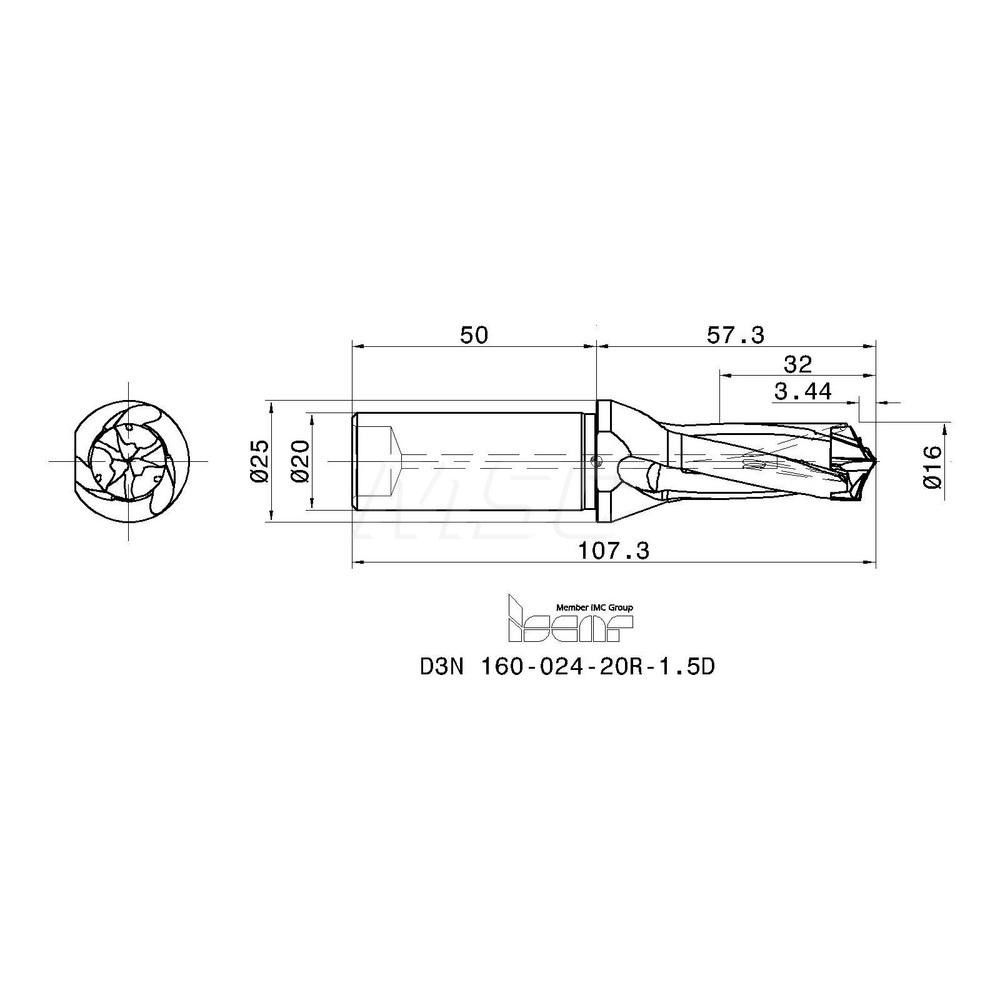

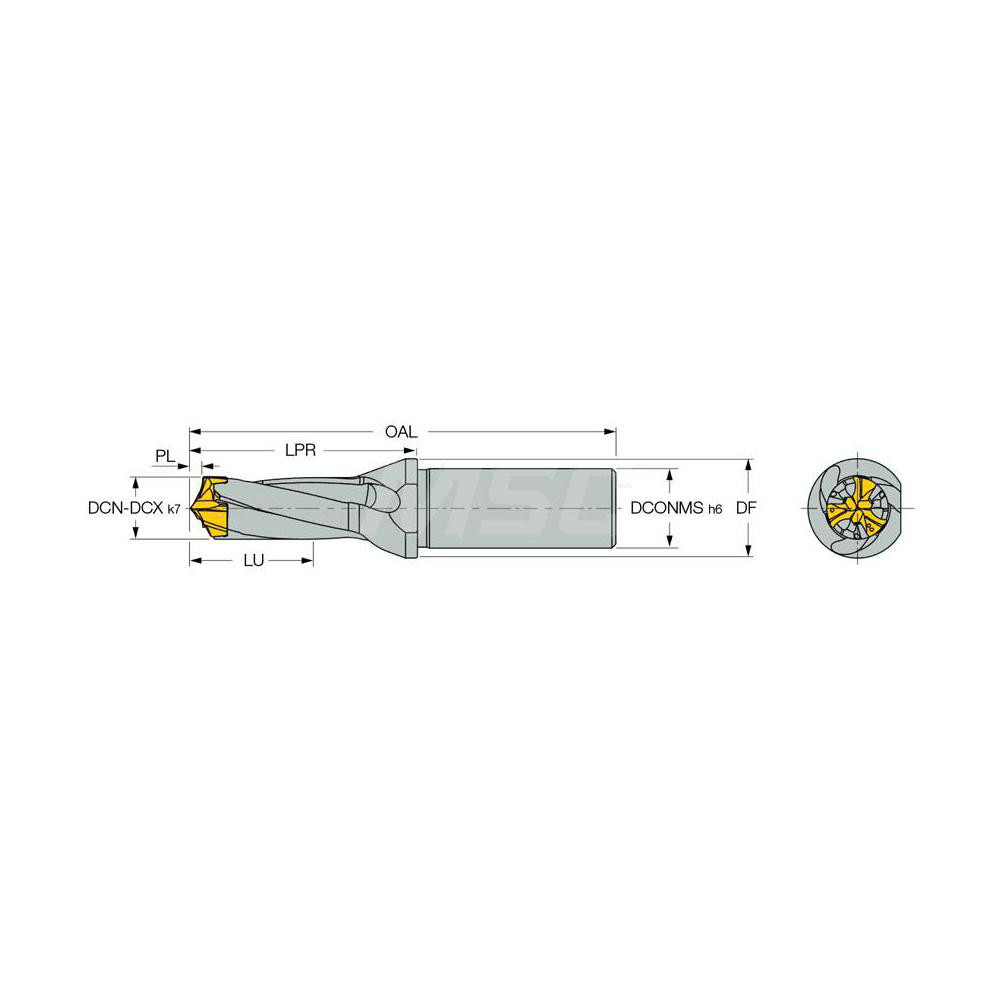

| Overall Length (mm) | 107.3 |
| Overall Length (Decimal Inch) | 4.2244 |
| Series | LogIQ3Cham |
| Toolholder Style | D3N |
| Body Length (Decimal Inch) | 2.2559 |
| Body Length (mm) | 57.30 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 15111420 |
