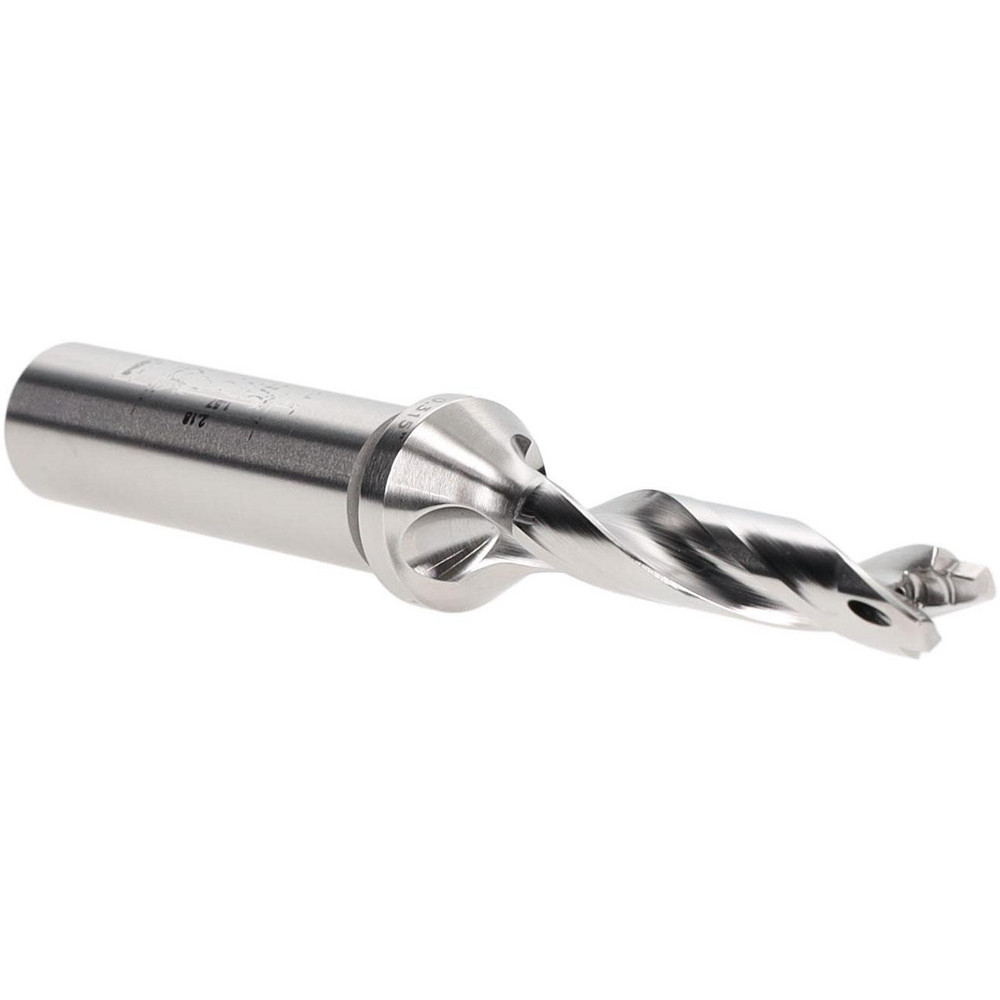

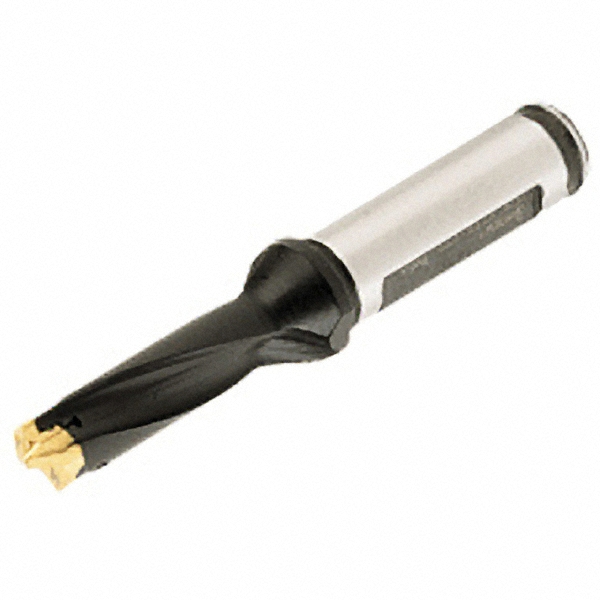

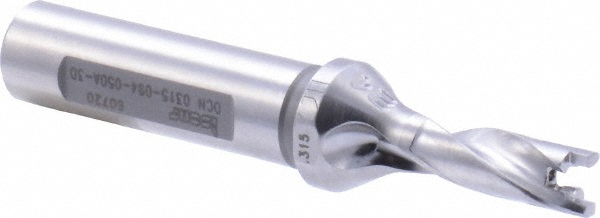

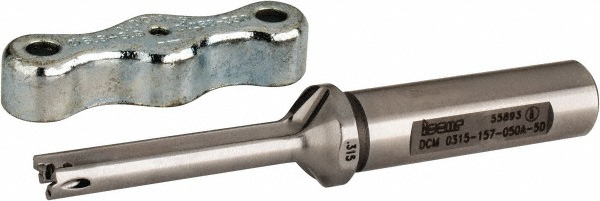

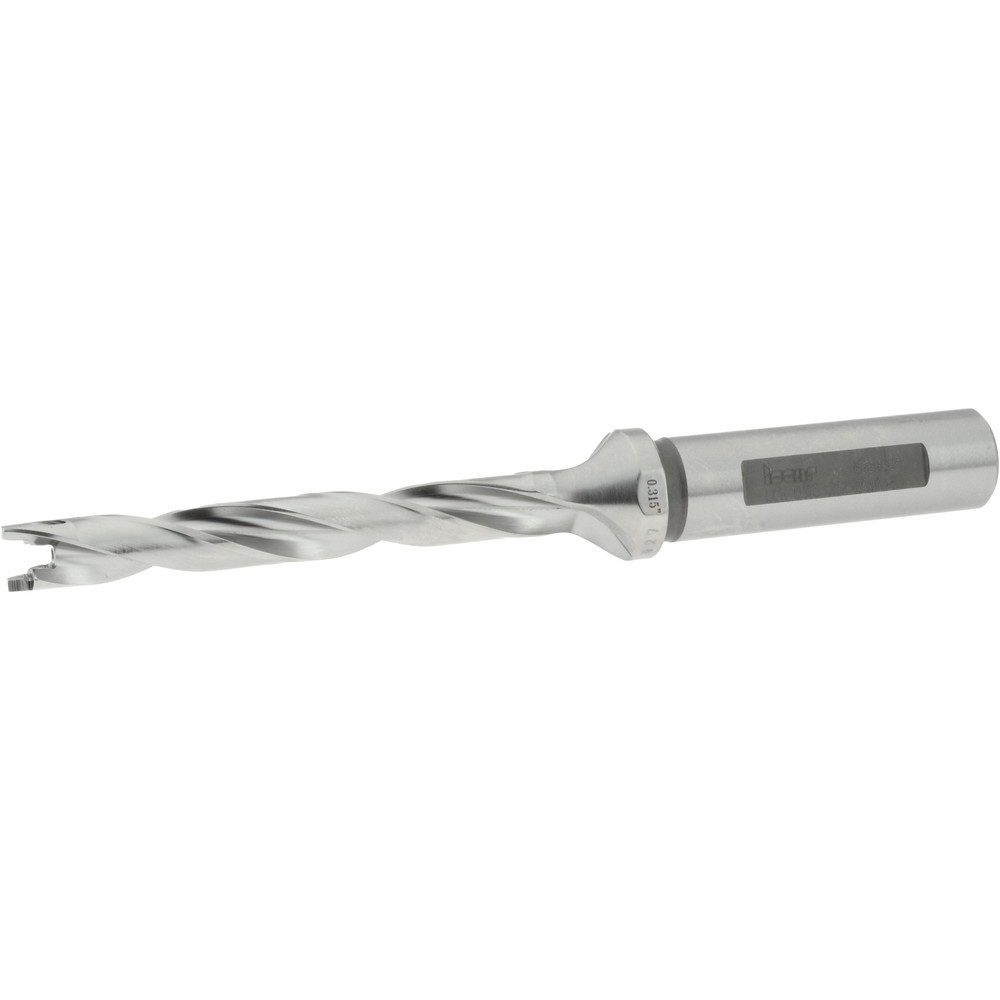

Uses FCP/ICK/ICK-2M/ICM/ICP/iCP-2M Inserts, Seat Size 8, 92.46 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.3150 |
|---|---|
| Minimum Drill Diameter (mm) | 8.00 |
| Maximum Drill Diameter (mm) | 8.41 |
| Maximum Drill Diameter (Decimal Inch) | 0.3310 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 39.88 |
| Maximum Drill Depth (Decimal Inch) | 1.5700 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Seat Size | 8 |
| Shank Diameter (mm) | 8.00 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |

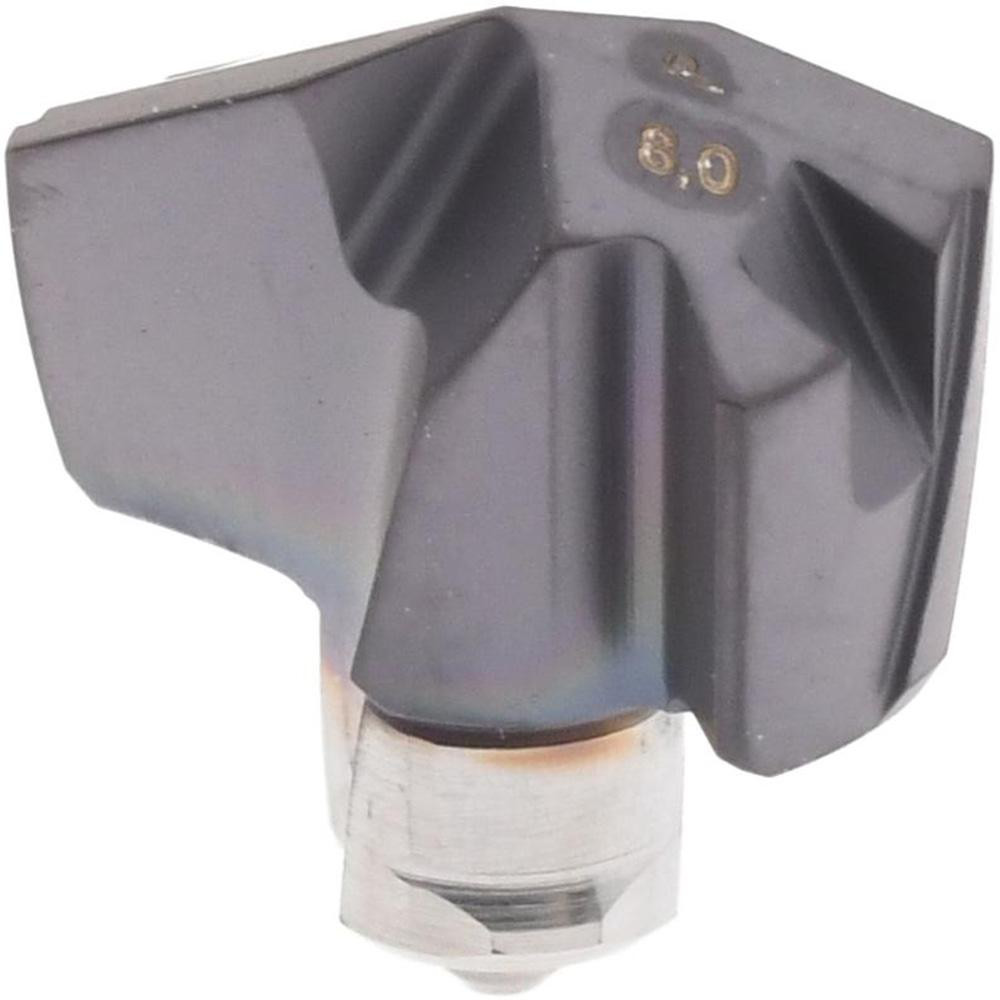

| Compatible Insert Style | ICK; iCP-2M; FCP; ICM; ICK-2M; ICP |
| Overall Length (mm) | 92.46 |
| Overall Length (Decimal Inch) | 3.64 |
| Series | UniSumoCham |
| Toolholder Style | DCNS |
| Body Length (Decimal Inch) | 2.22 |
| Body Length (mm) | 56.39 |
| Shank Length (Decimal Inch) | 1.4200 |
| Shank Length (mm) | 36.07 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91247783 |
