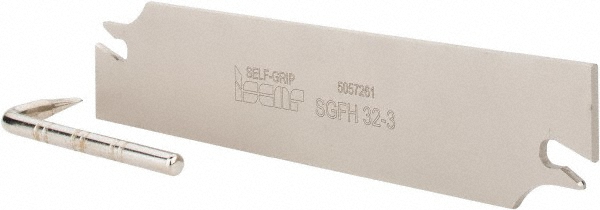

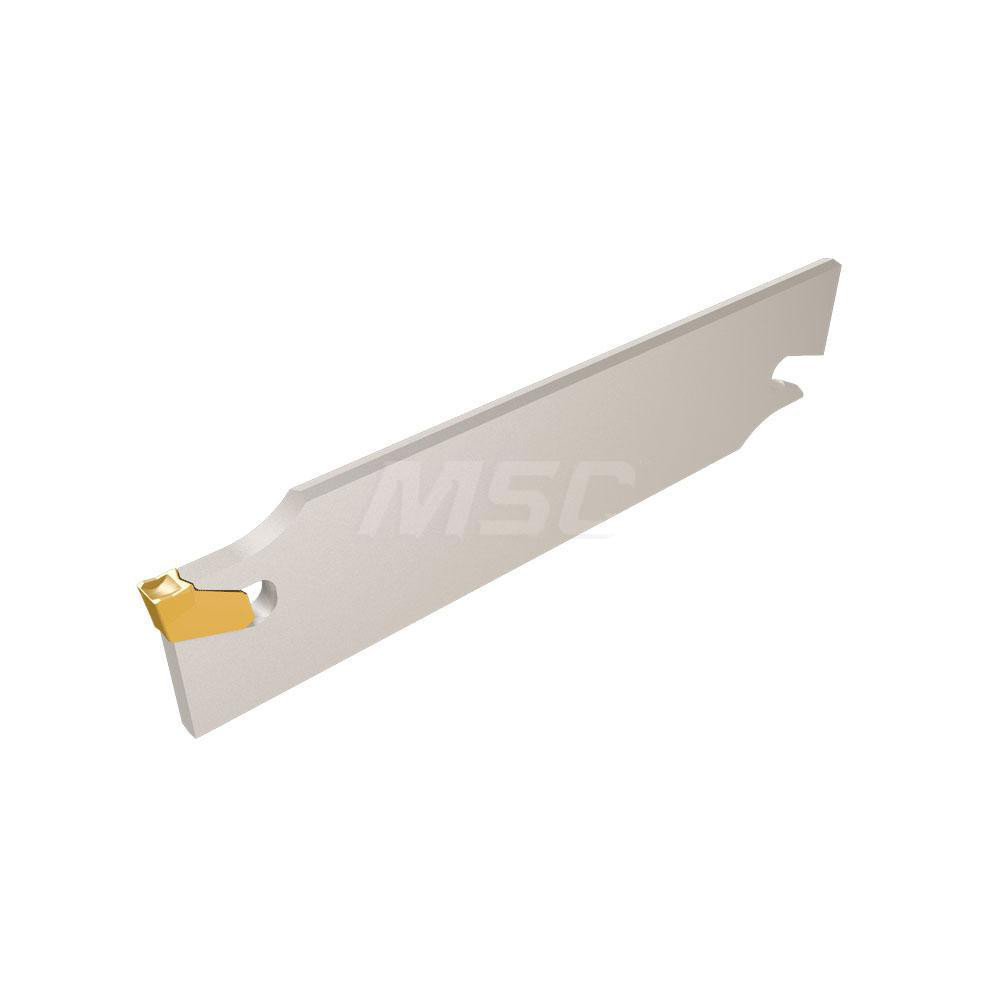

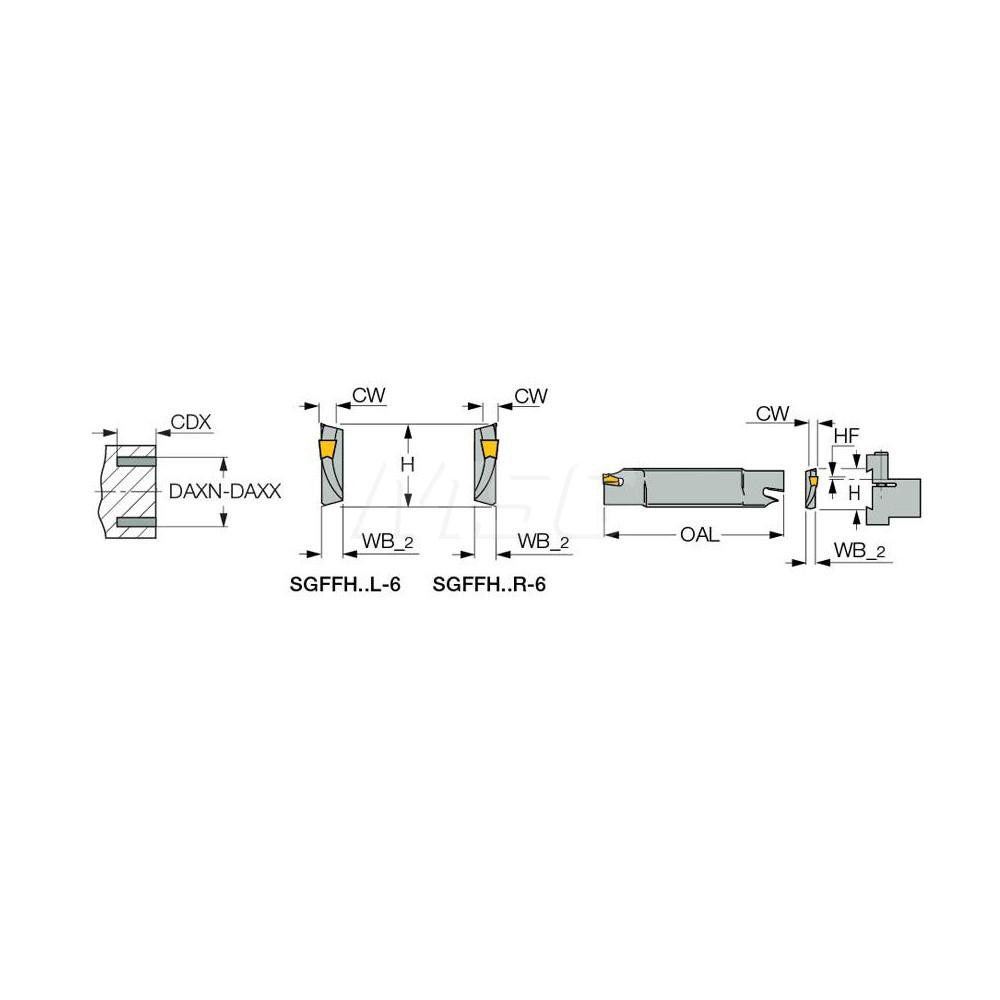

32mm High x 5.2mm Wide x 150mm OAL, 3mm Insert Width, Series Self Grip
| End Type | Double |
|---|---|
| Cutting Direction | Right Hand |
| Hand | Right Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (Decimal Inch) | 0.2047 |
| Blade Width (mm) | 5.20 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Blade Overall Length (mm) | 150.00 |
| Blade Style | SGFFH |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 6.3000 |
| Series | Self Grip |
| Insert Style | GFF-N |
| Cutting Tool Application | Grooving; Turning; Parting |
| Insert Width (mm) | 3.00 |
| Standards | ISO 13399 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 4.7200 |
| Minimum Insert Width (Decimal Inch) | 0.1181 |
| Minimum Insert Width (mm) | 3.00 |
| Maximum Insert Width (Decimal Inch) | 0.1180 |
| Insert Width | 0.1181 |
| UNSPSC Code | 23241600 |
| Country of Origin | Israel |
| MSC Number | MSC# 60817103 |
