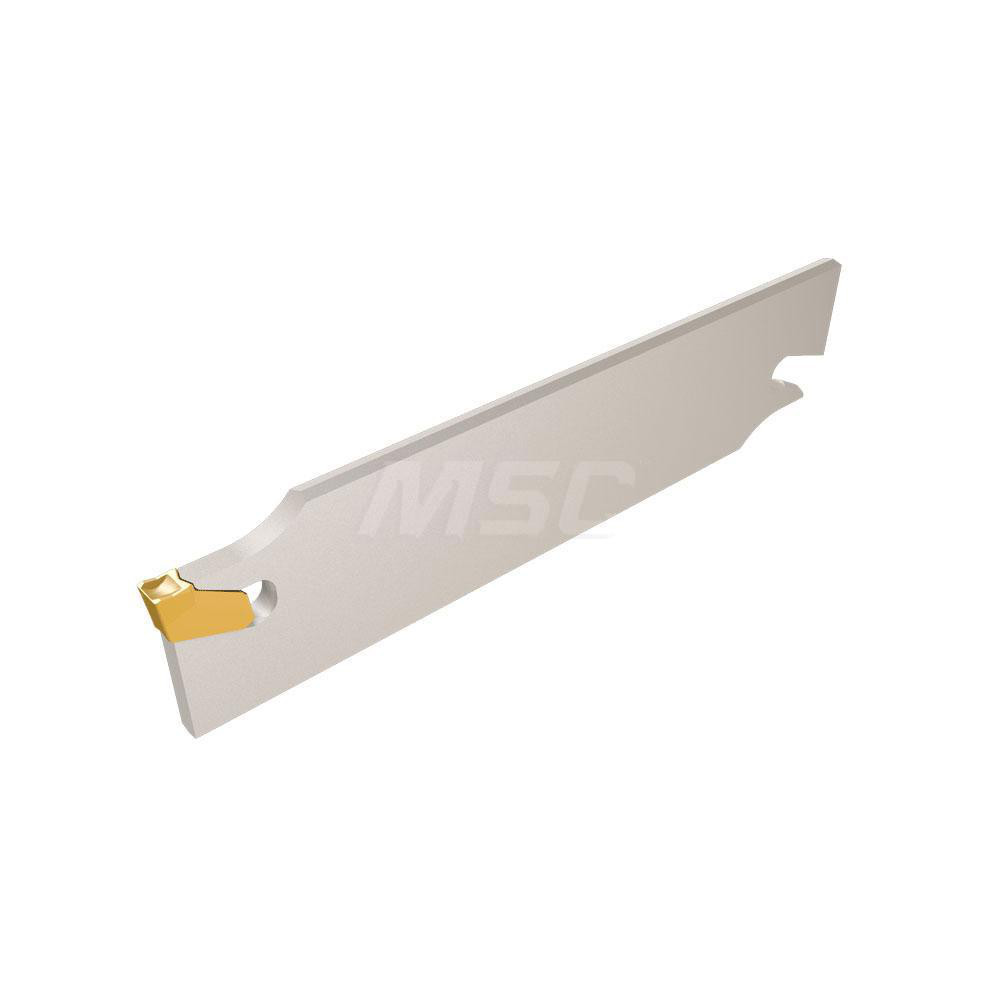

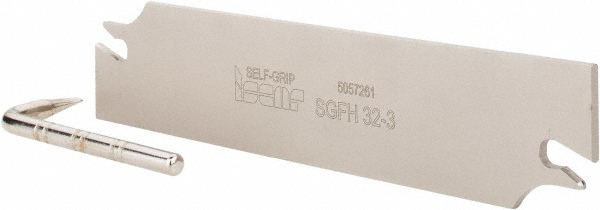

32mm High x 2.4mm Wide x 150mm OAL, 3mm Insert Width, Series Self Grip
| End Type | Double |
|---|---|
| Cutting Direction | Right Hand |
| Hand | Right Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (Decimal Inch) | 0.0945 |
| Blade Width (mm) | 2.40 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Blade Overall Length (mm) | 150.00 |
| Blade Style | SGFH |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 3.9400 |
| Series | Self Grip |
| Insert Style | GF.. 3 |
| Cutting Tool Application | Grooving; Turning; Parting |
| Insert Width (mm) | 3.00 |
| Standards | ISO 13399 |
| Cutting Height (mm) | 24.80 |
| Cutting Height (Decimal Inch) | 0.9764 |
| Minimum Insert Width (Decimal Inch) | 0.1063 |
| Minimum Insert Width (mm) | 2.70 |
| Maximum Insert Width (mm) | 3.53 |
| Maximum Insert Width (Decimal Inch) | 0.1390 |
| Manufacturers Catalog Number | SGFH 32-3 |
| Insert Width | 0.1181 |
| UNSPSC Code | 23241600 |
| Country of Origin | Israel |
| undefined | undefined |
| Pros | No Pros |
| Cons | No Cons |
| MSC Number | MSC# 60821188 |
