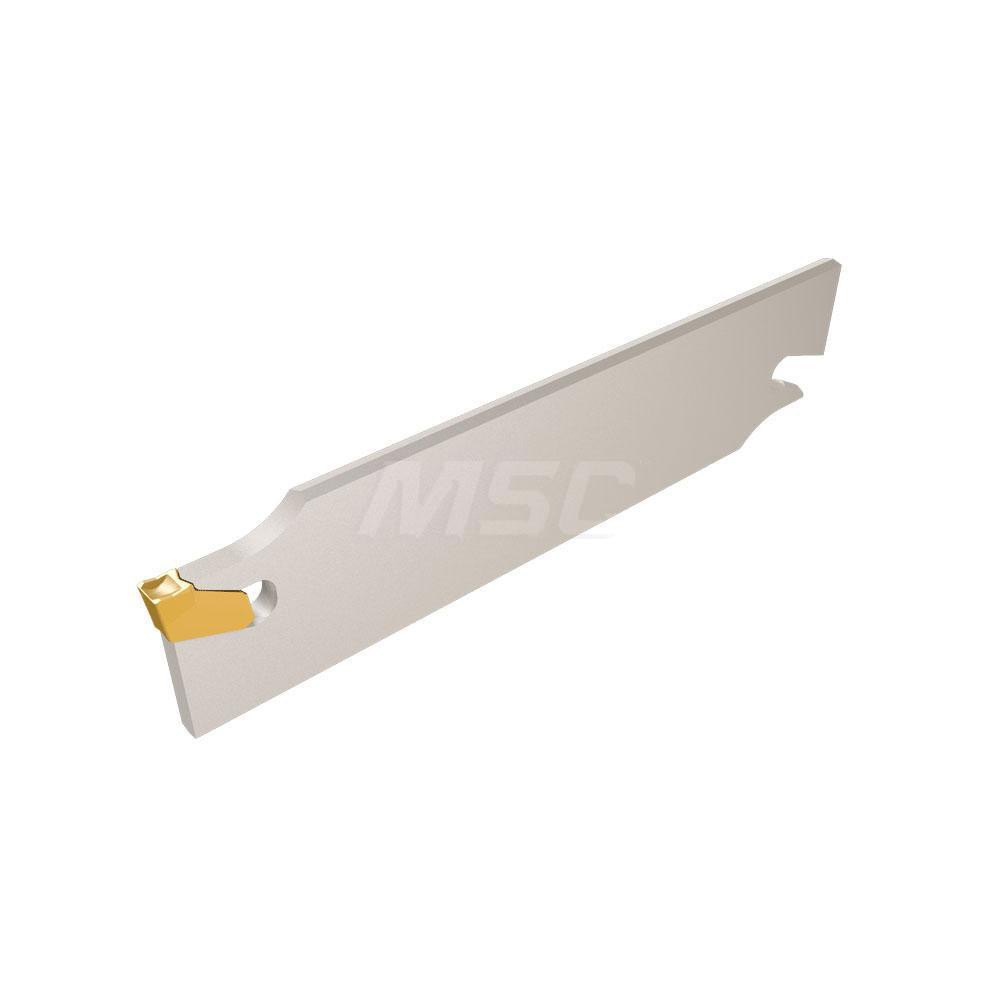

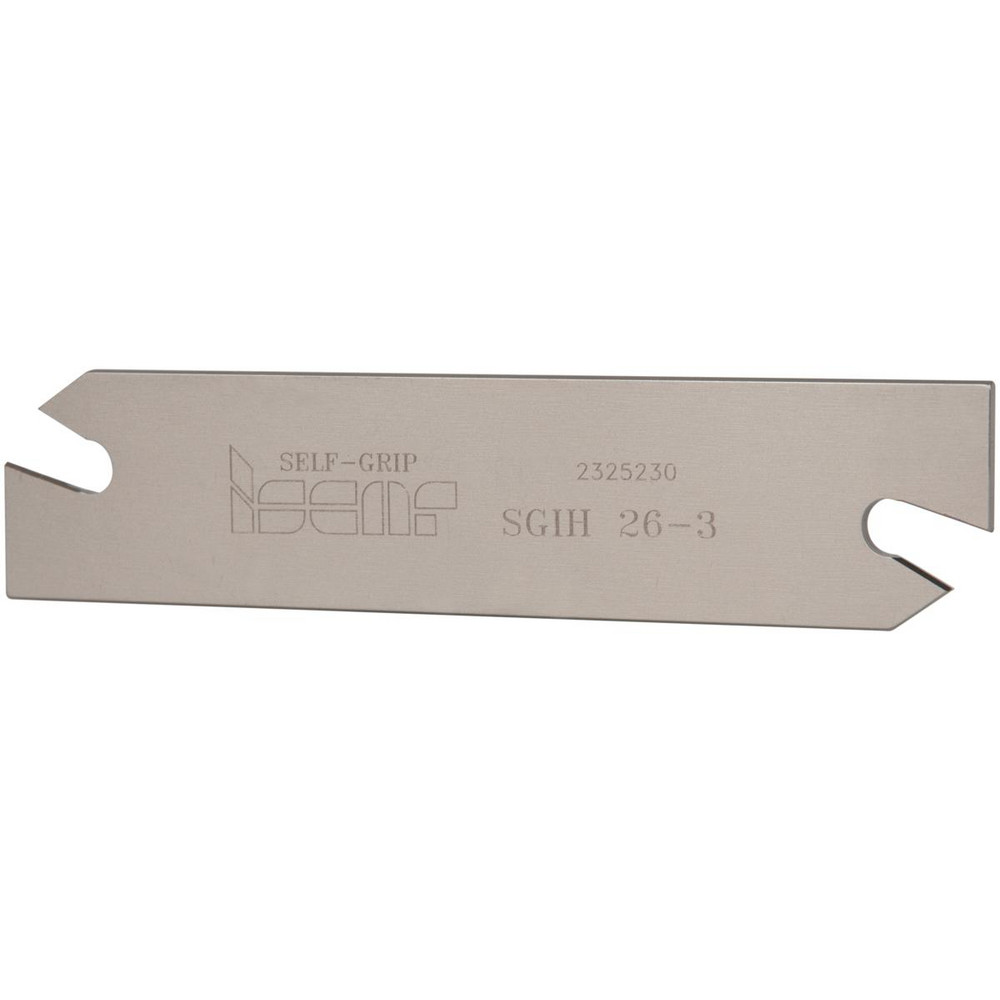

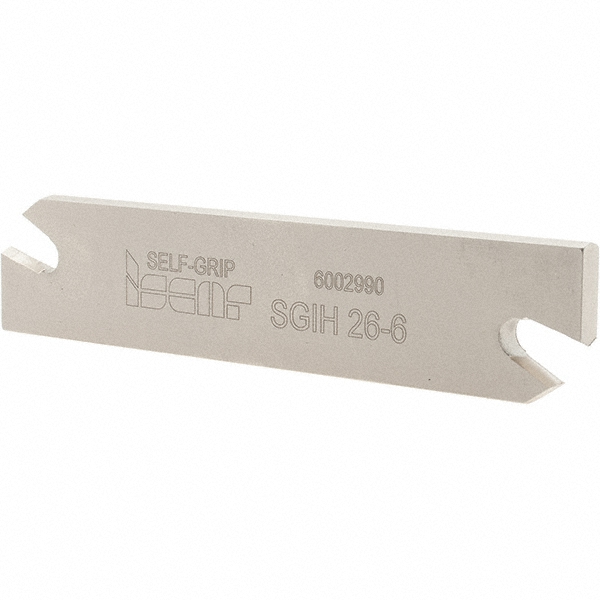

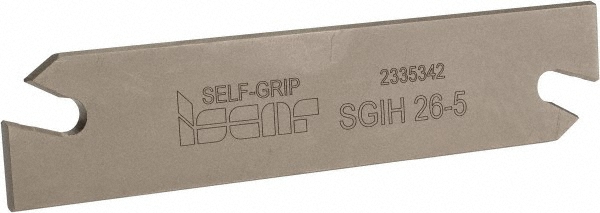

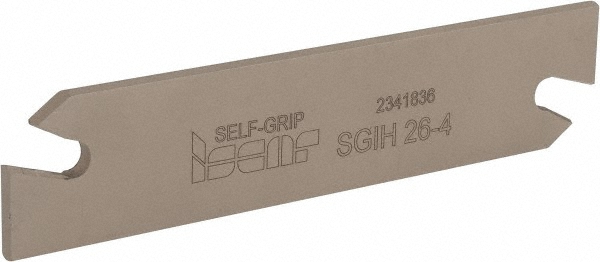

26mm High x 5.2mm Wide x 110mm OAL, 1/4" Insert Width, Series Self Grip
| End Type | Double |
|---|---|
| Cutting Direction | Right Hand |
| Hand | Right Hand |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (Decimal Inch) | 0.2047 |
| Blade Width (mm) | 5.20 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Overall Length (mm) | 110.00 |
| Blade Style | SGIH |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 3.1500 |
| Series | Self Grip |
| Tool Block Style | SGTBR |

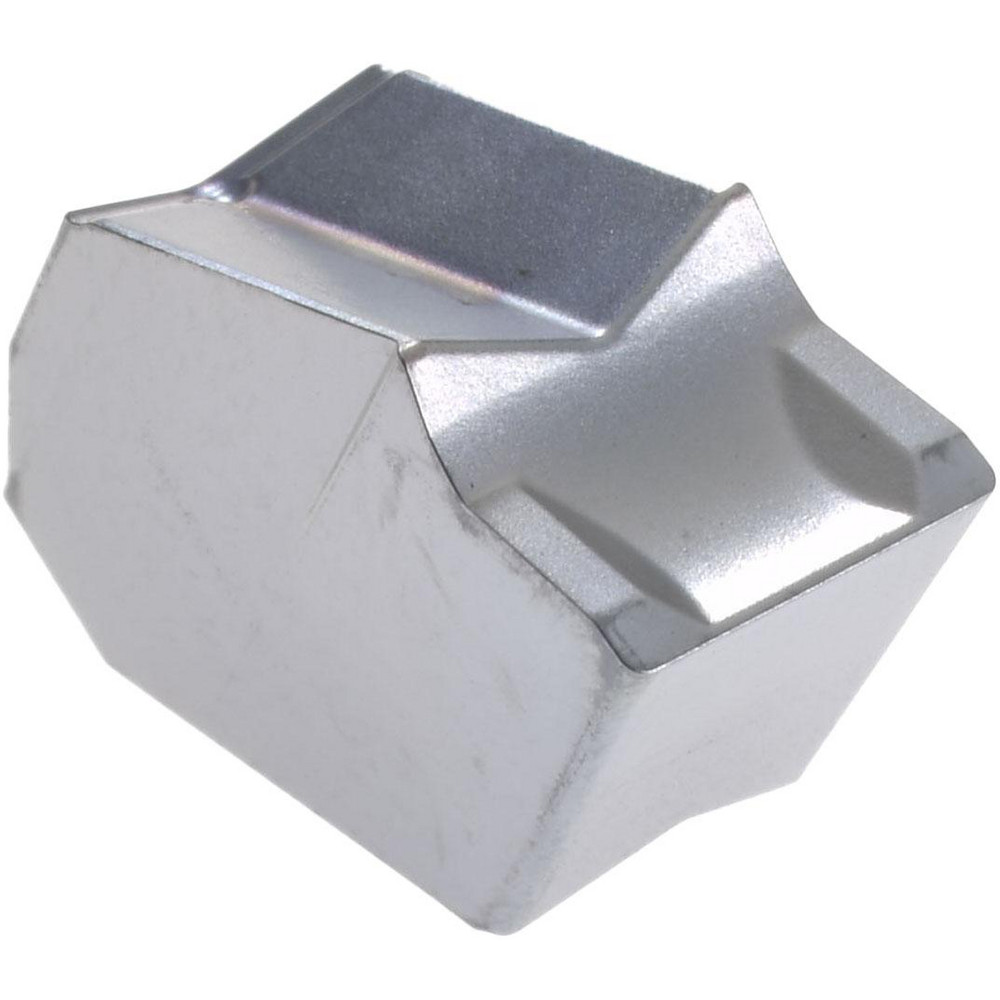

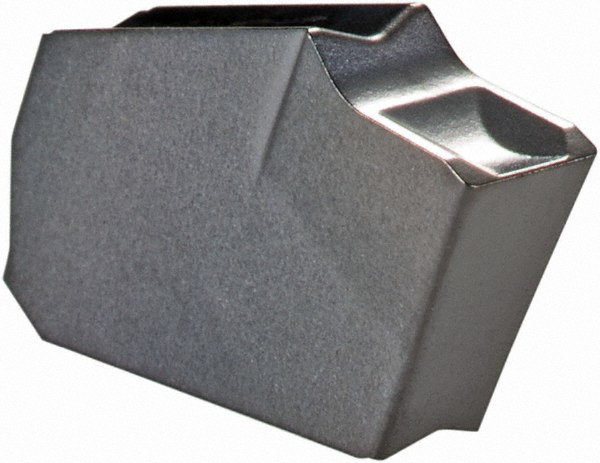

| Insert Style | GT.. 6 |
| Cutting Tool Application | Cut-Off |
| Cutting Height (mm) | 21.40 |
| Cutting Height (Decimal Inch) | 0.8425 |
| Minimum Insert Width (Decimal Inch) | 0.2520 |
| Minimum Insert Width (mm) | 6.40 |
| Maximum Insert Width (mm) | 6.40 |
| Maximum Insert Width (Decimal Inch) | 0.2520 |

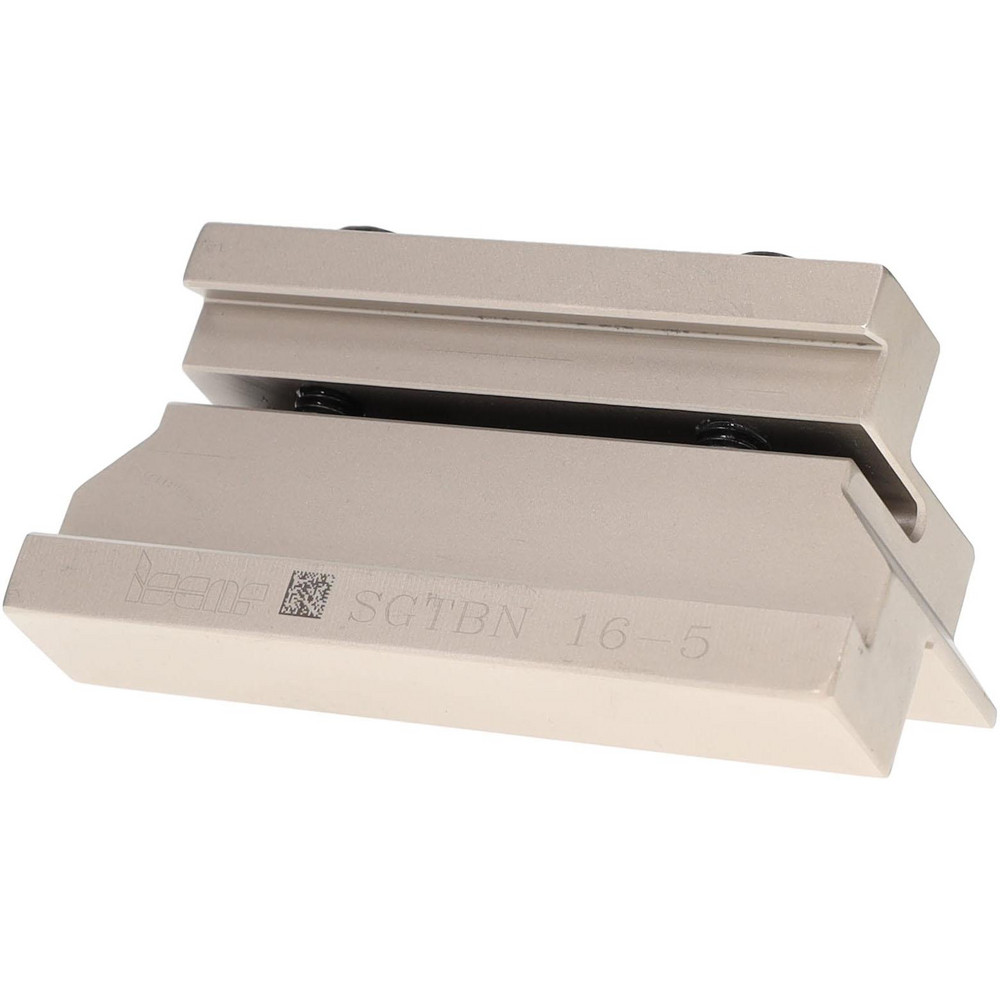

| Complete Tool Block/Toolholder Style Compatibility | SGTBR 16-5; SGTBR 25-6; SGTBR 19-5 |
| Insert Width | 0.2500 |
| UNSPSC Code | 23241600 |
| Country of Origin | Israel |
| MSC Number | MSC# 08689291 |
