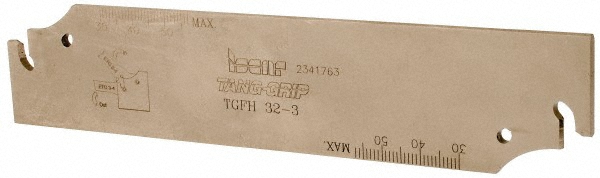

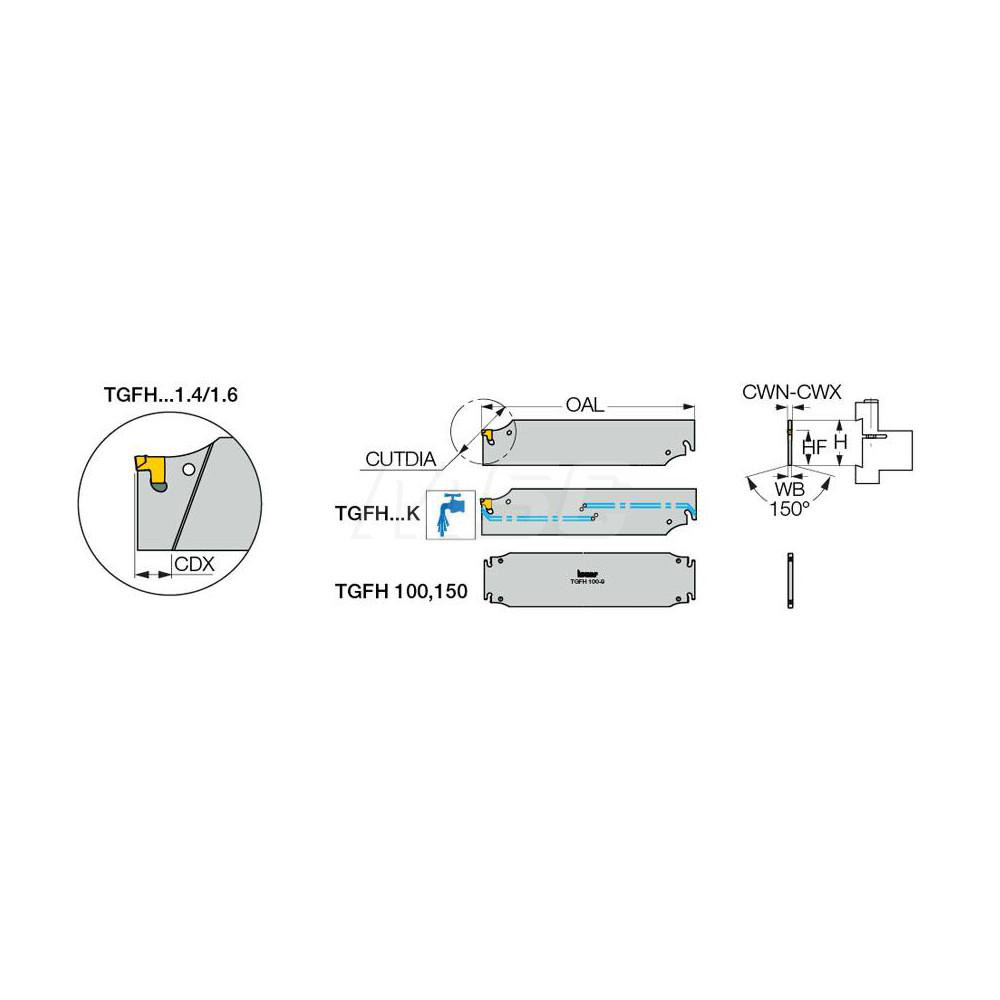

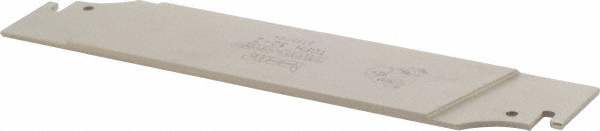

32mm High x 2.5mm Wide x 150mm OAL
| End Type | Double |
|---|---|
| Cutting Direction | Neutral |
| Hand | Right Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (Decimal Inch) | 0.0980 |
| Blade Width (mm) | 2.50 |
| Blade Overall Length (Decimal Inch) | 5.9060 |
| Blade Overall Length (mm) | 150.00 |
| Blade Style | TGFH |
| Compatible Insert Style | TAG |
| Compatible Insert Size Code | 3 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 3.9400 |
| Series | Sumo Grip; Tang-Grip |
| Insert Style | TAG 3.. |
| Cutting Tool Application | Grooving; Turning; Parting |
| Standards | ISO 13399 |
| Cutting Height (mm) | 24.80 |
| Cutting Height (Decimal Inch) | 0.9764 |
| Minimum Insert Width (Decimal Inch) | 0.1102 |
| Minimum Insert Width (mm) | 2.80 |
| Maximum Insert Width (mm) | 3.50 |
| Maximum Insert Width (Decimal Inch) | 0.1378 |
| Manufacturers Catalog Number | TGFH 32-3 |
| UNSPSC Code | 23241600 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 59548602 |
