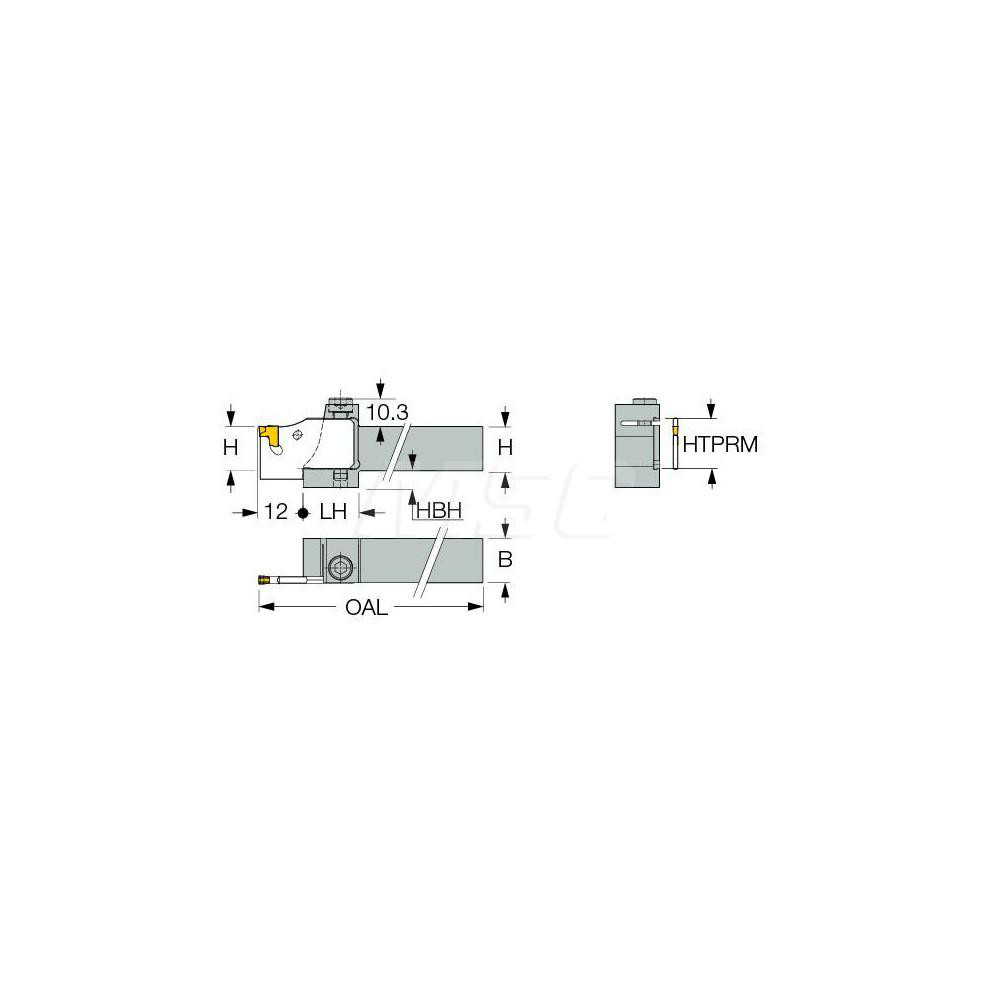

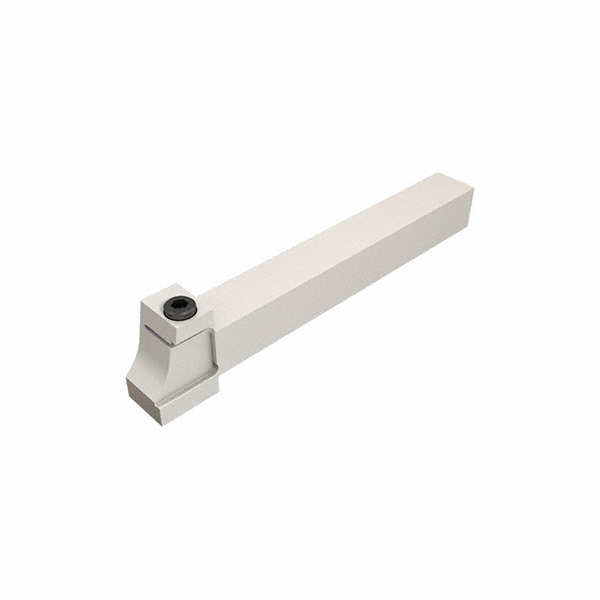

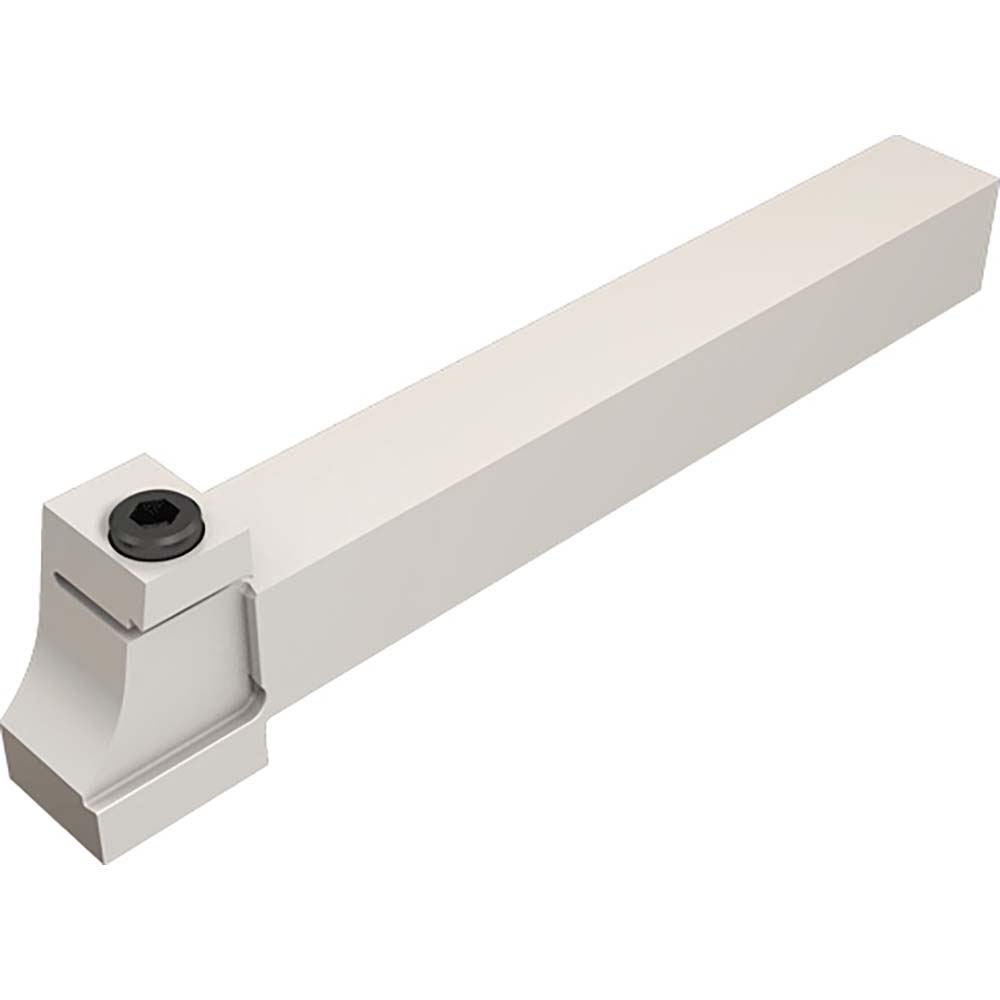

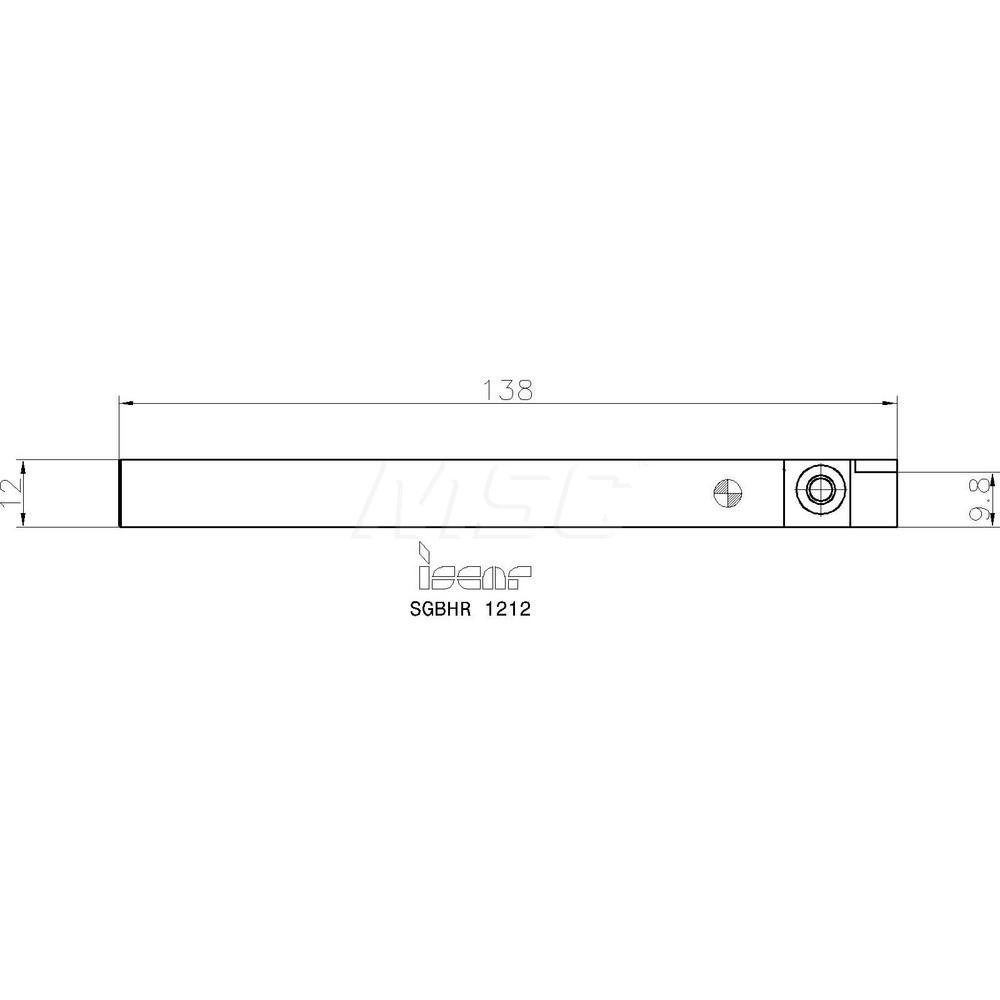

12mm Shank Height, 12mm Shank Width, Series Self-Grip
| Tool Block Style | SGBH |
|---|---|
| Compatible Blade Height (mm) | 19.00 |
| Compatible Blade Height (Decimal Inch) | 0.7480 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Series | Self-Grip |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Shoulder Height (mm) | 8.00 |
| Reversible | No |
| Complete Blade Compatibility | SGB 19-1.6; TGFH 19-2S; SGB 19-3; TGFH 19-3S; SGB 19-1.2; SGB 19-2; SGB 19L-4 |
| Cutting Tool Application | Grooving; Turning; Parting |
| Modular | No |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |

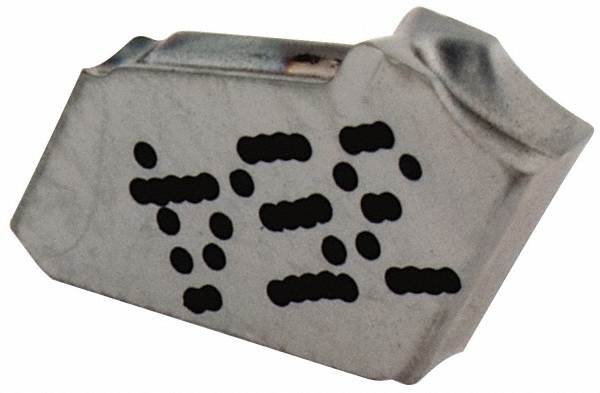

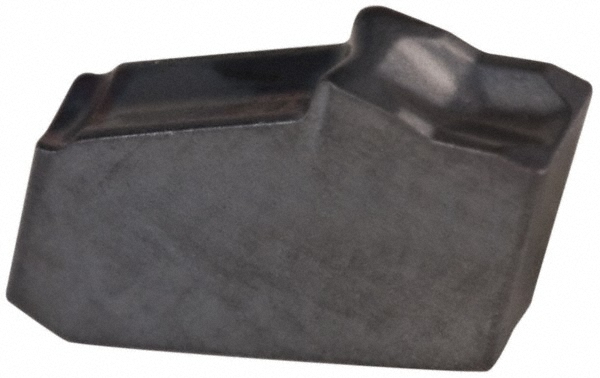

| Complete Insert Compatibility | GFN 1.6; GFN 1.6A; GFR 1.6 - 8D; GFL 1.6 - 8D; GFL 1.6J - 6D; GFL 1.6JS-15D; GFR 1.6S - 8D; GFR 1.6JS-15D; GFR 1.6 -15D; GFR 1.6JS- 6D; GFL 1.6 -15D; GFN 1.6J; GFL 1.6JS- 6D |
| Head Length Projection (mm) | 20.00 |
| Coolant Through | No |
| UNSPSC Code | 23242100 |
| Country of Origin | Israel |
| MSC Number | MSC# 52733375 |
