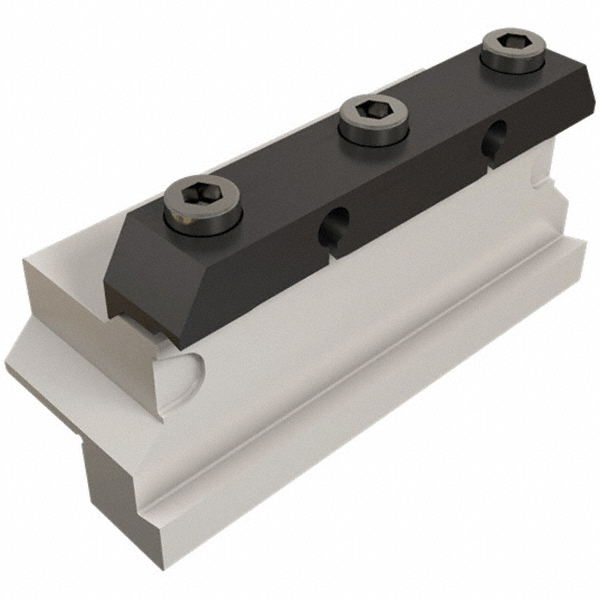

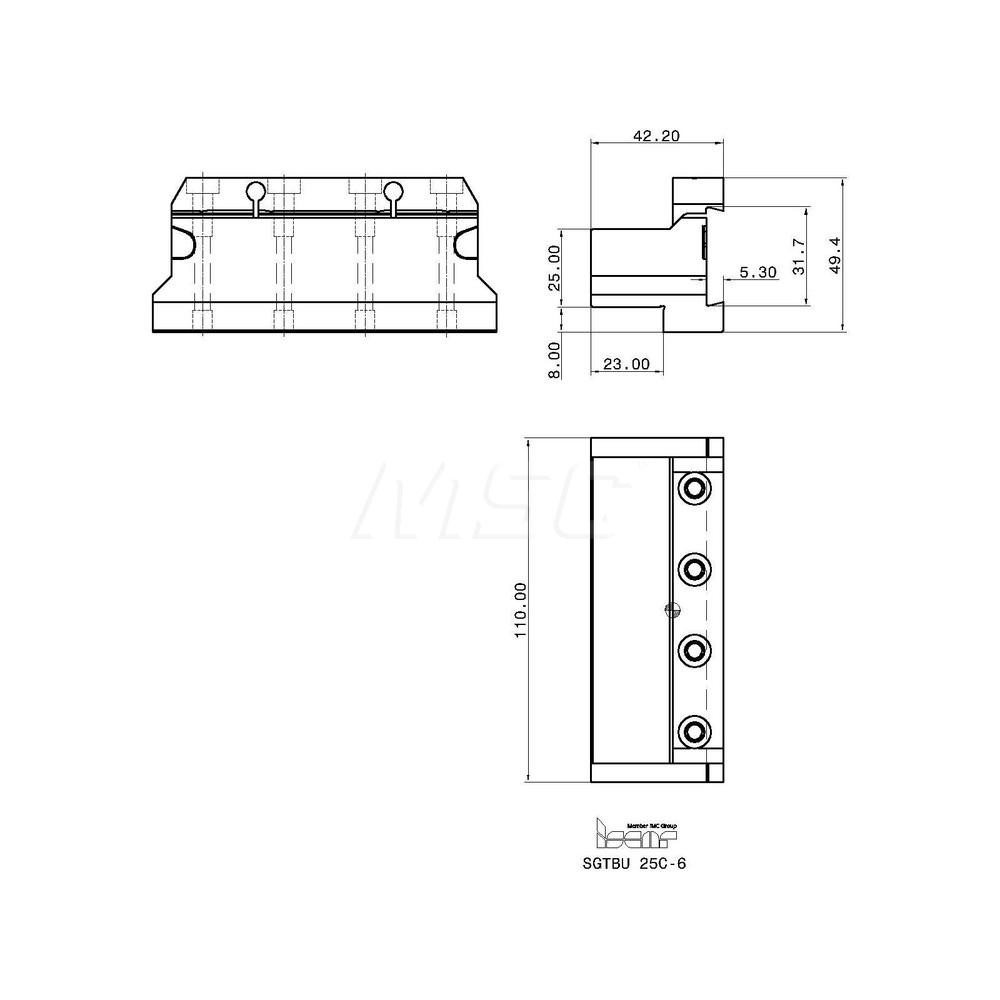

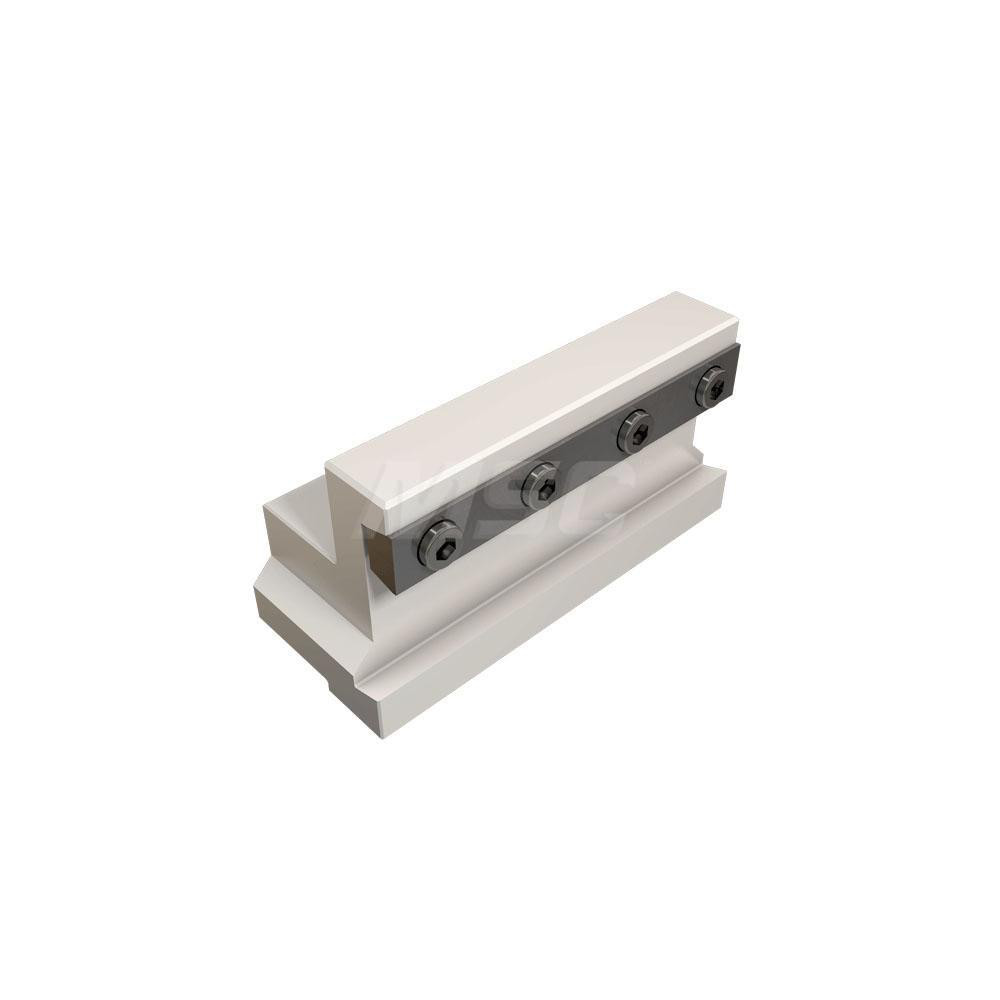

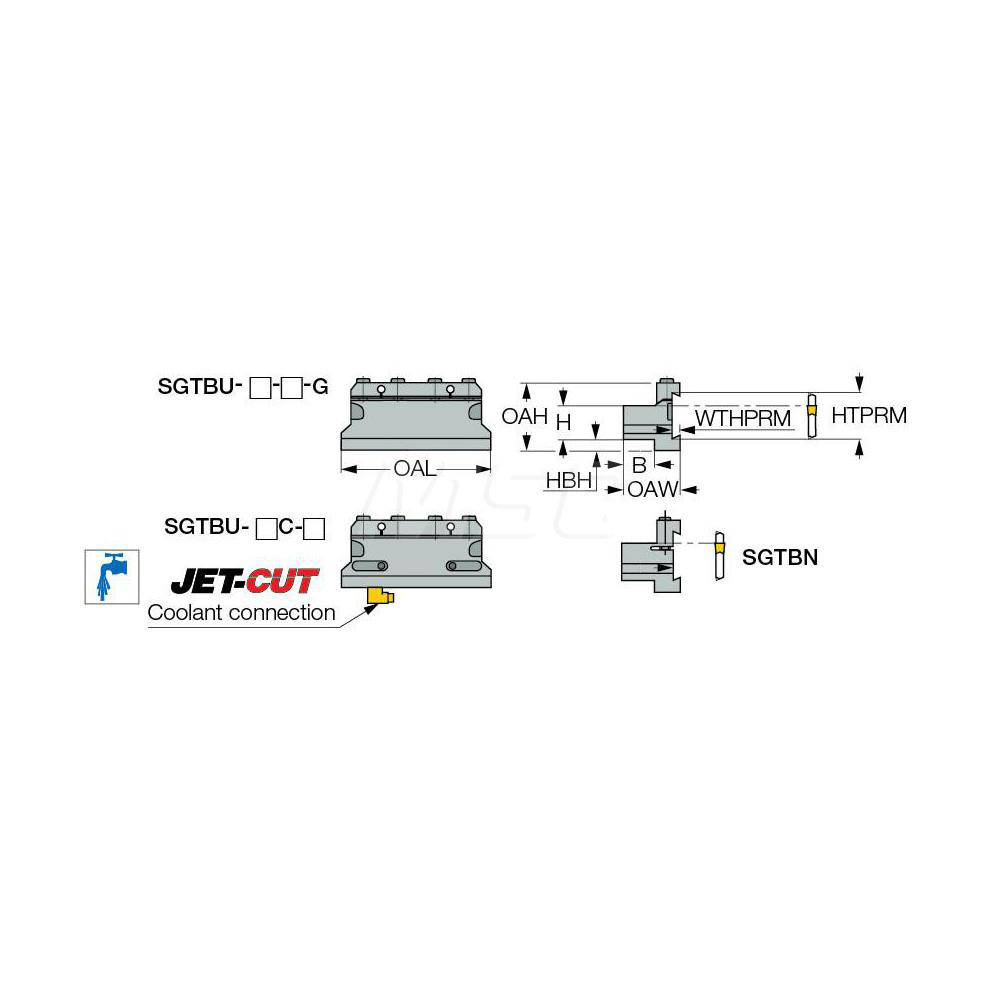

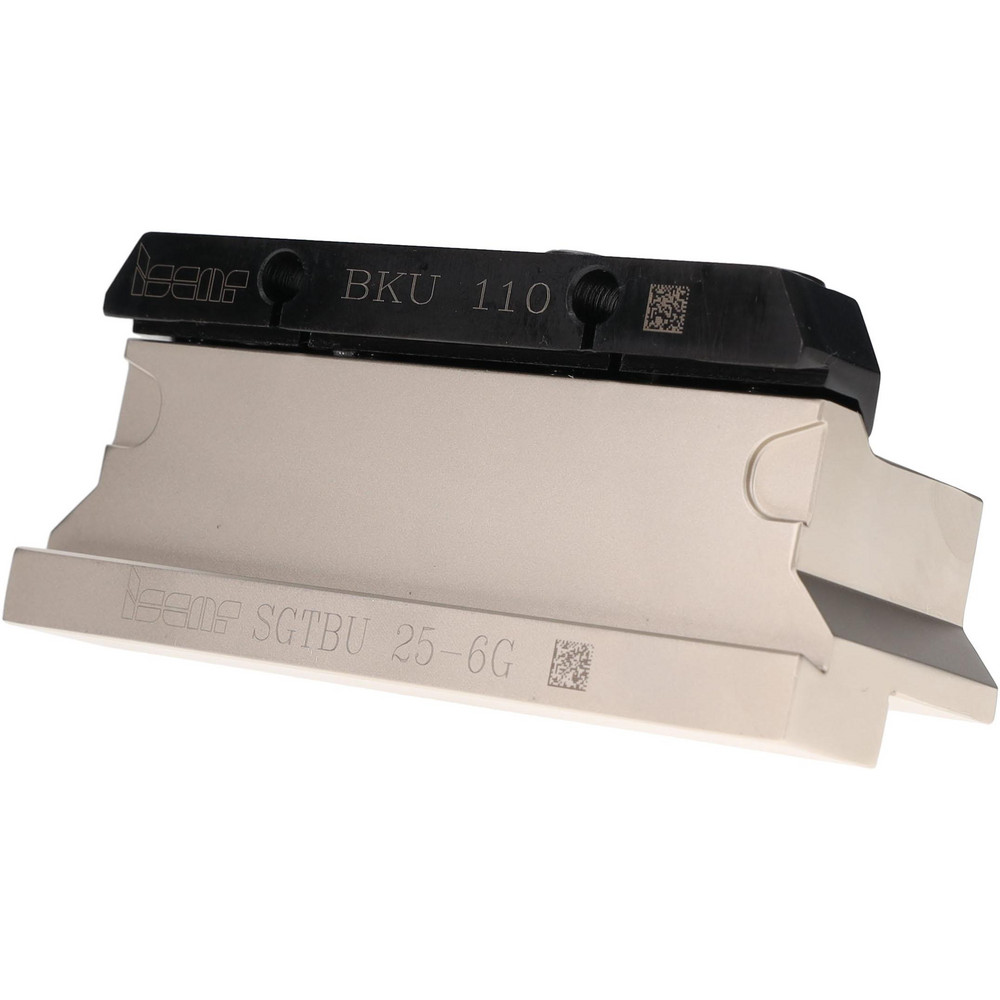

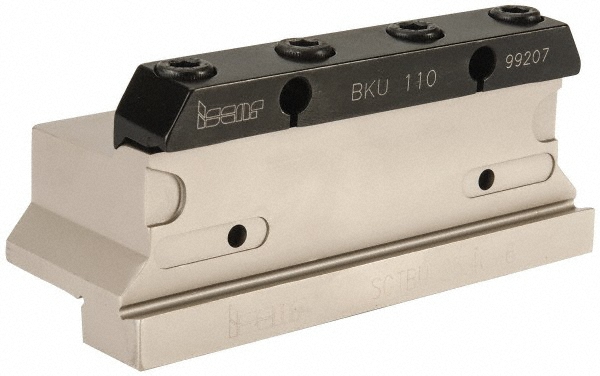

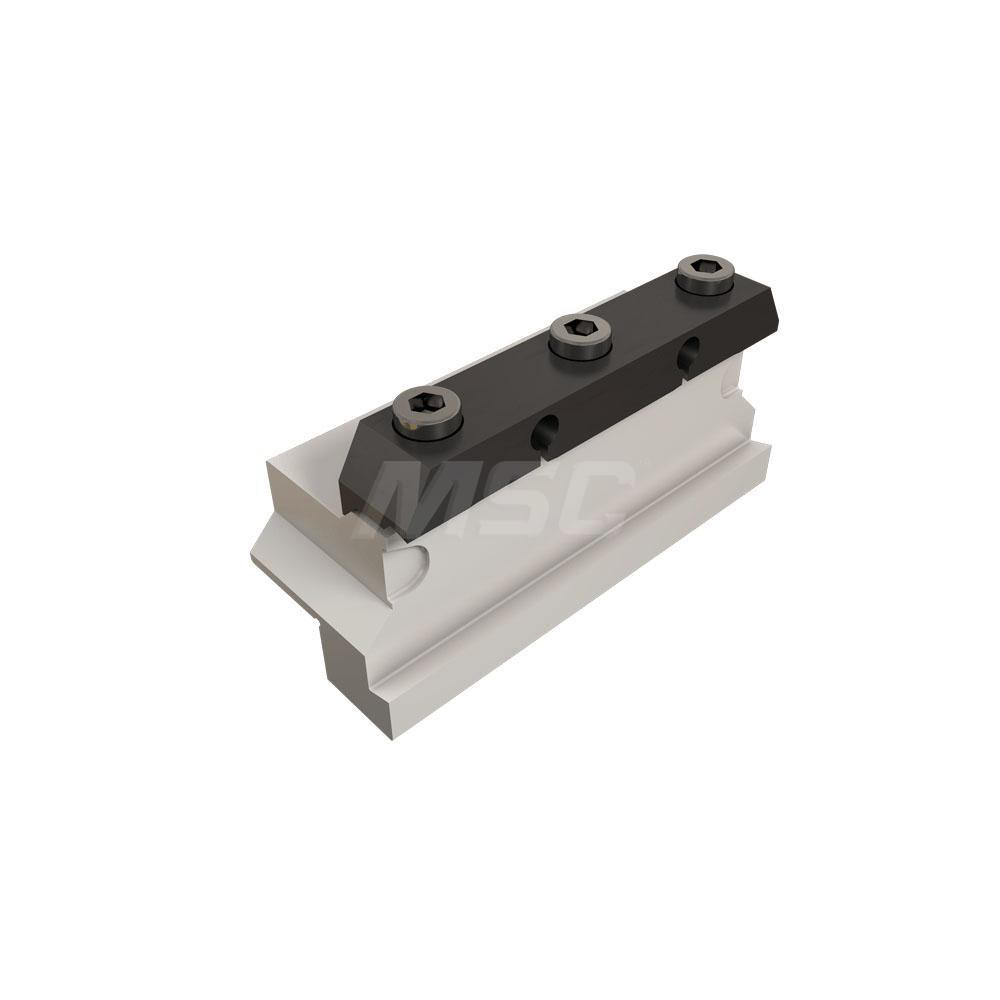

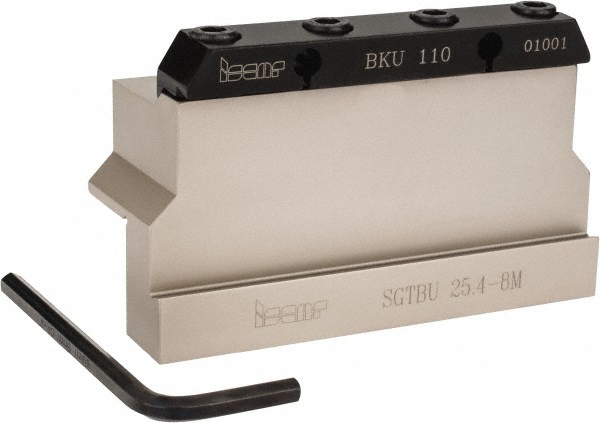

25mm Shank Height, 23mm Shank Width, Through Coolant, Series Tool Blocks
| Tool Block Style | SGTBU |
|---|---|
| Compatible Blade Height (mm) | 32.00 |
| Compatible Blade Height (Decimal Inch) | 1.2598 |
| Compatible Blade Width (mm) | 5.30 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width (mm) | 23.00 |
| Shank Width (Decimal Inch) | 0.9055 |
| Series | Tool Blocks |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.00 |
| Overall Height (Decimal Inch) | 50.00 |
| Overall Width (mm) | 42.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 1.6535 |
| Shoulder Height (mm) | 7.80 |
| Reversible | No |

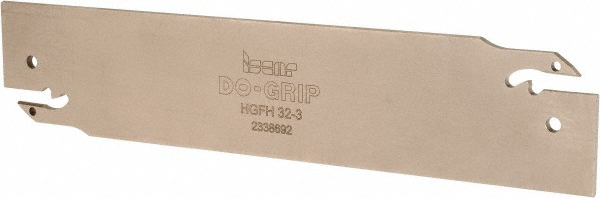

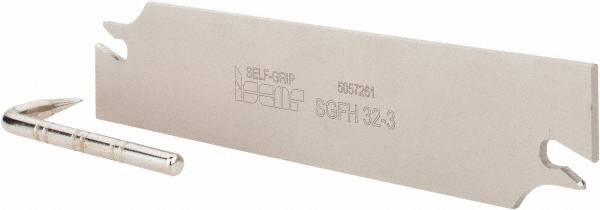

| Complete Blade Compatibility | SGFFA 25-L-2; CGHN 32-3D; CGHN 32-4D; SGFFH 35-L-2; SGFFH 60-L-2; CGHN 32-5D; CGHN 32-6D; DGFH 32-1.4; DGFH 32-3; DGFH 32-4; SGFFH 35-R-2; SGFFA 30-L-2; CGHR 32-P8DG; DGFH 32-2; SGFFA 35-L-2; CGHL 32-P8DG; SGFFA 25-R-2; SGFFH 45-L-2; SGFFA 30-R-2; SGFFH 45-R-2; DGFH 32C-3 |
| Cutting Tool Application | Grooving; Turning; Parting |
| Modular | No |

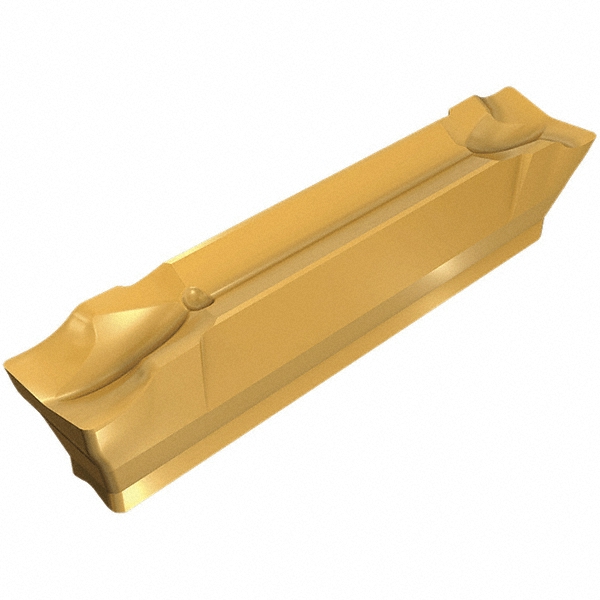

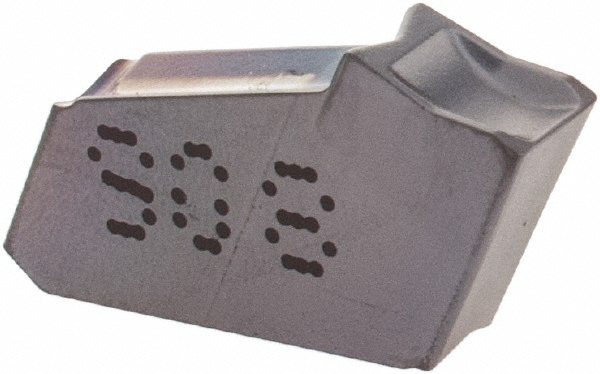

| Complete Insert Compatibility | GIF 3.98-0.20; GIF 3.74-0.20; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.00E-0.40; GIM 3; GIM 4C; GIM 3C; GIM 4; GIM 3.2; GIM 4J; GIF 3.48-0.20; GIM 3J; GIF 3.56-0.20 |
| Head Length Projection (mm) | 110.00 |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 4.3307 |
| UNSPSC Code | 23242100 |
| Country of Origin | Israel |
| MSC Number | MSC# 60824505 |
