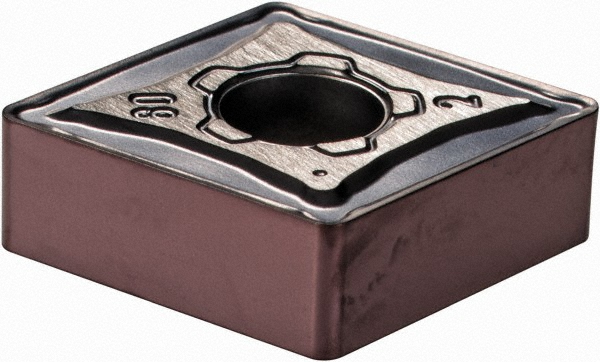

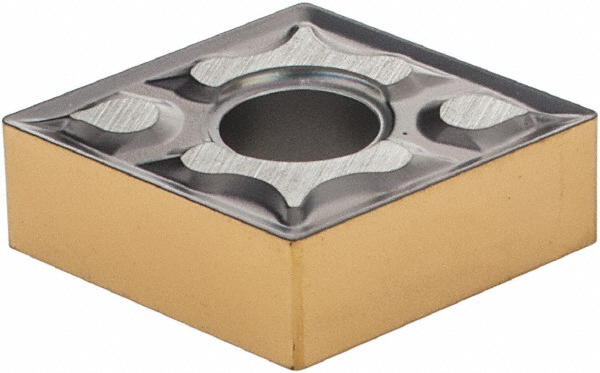

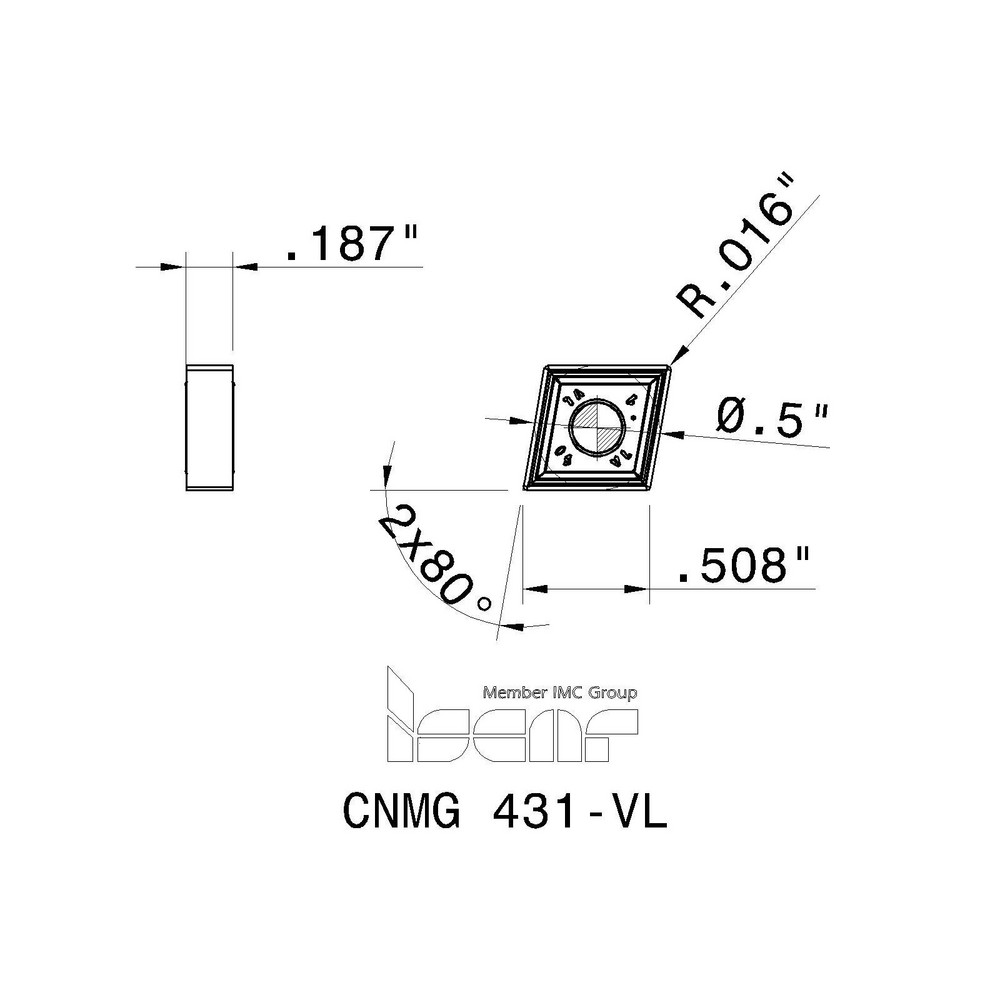

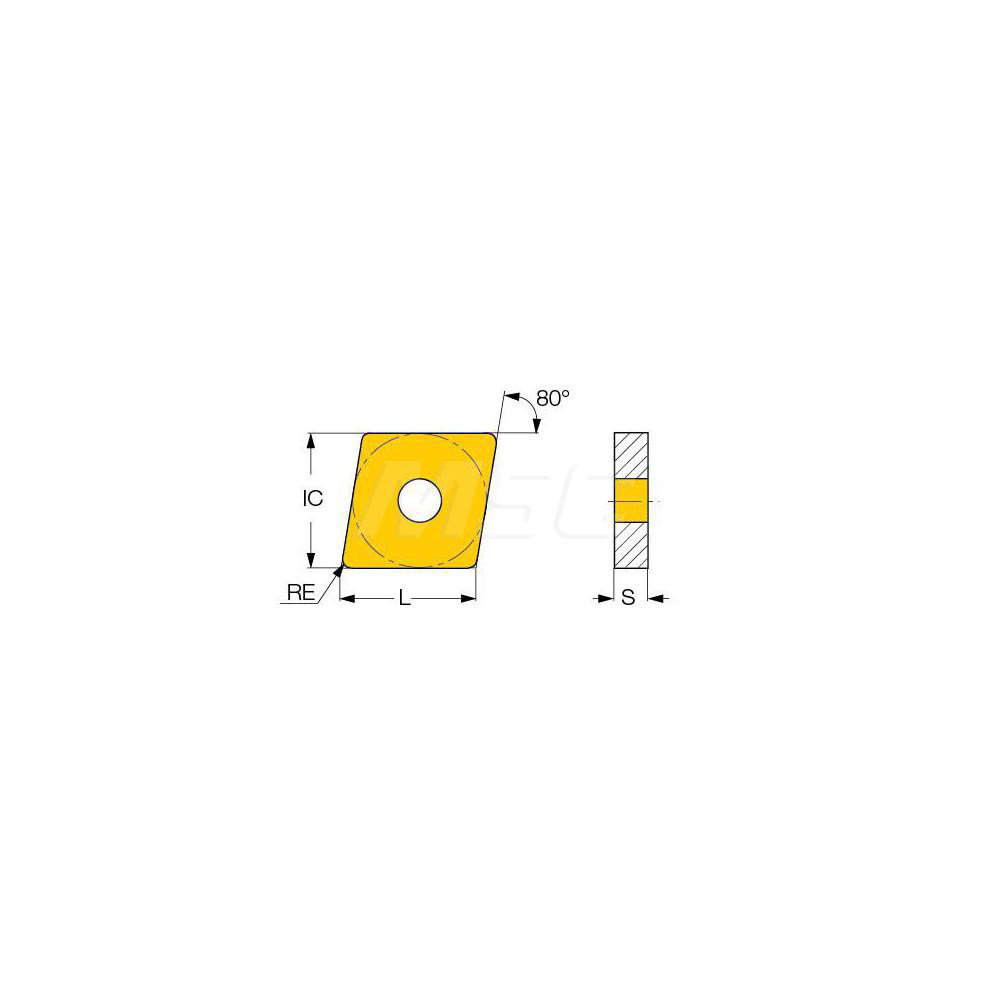

AlTiN Finish, Right Hand, 12.90 mm Long, 12.70 mm Inscribed Circle, 0.40 mm Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series Isoturn
| Insert Style | CNMG |
|---|---|
| ISO Size Code | 120404 |
| ANSI Size Code | 431 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Insert Material | Carbide |
| Manufacturer Grade | IC806 |
| Coating/Finish | AlTiN |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Insert Thickness | 4.76 |
| Insert Hand | Right Hand |
| Series | Isoturn |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| ISO Insert Code | CNMG120404 |
| ANSI Insert Code | CNMG431 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Insert Length (Decimal Inch) | 0.5080 |
| Insert Length (mm) | 12.90 |
| Primary Workpiece Material Code | S |
| Iso Code | CNMG 431-VL |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | 5567594 |
| Proprietary Coating Designation | SumoTec |
| Chip Breaker | VL |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 38829875 |
