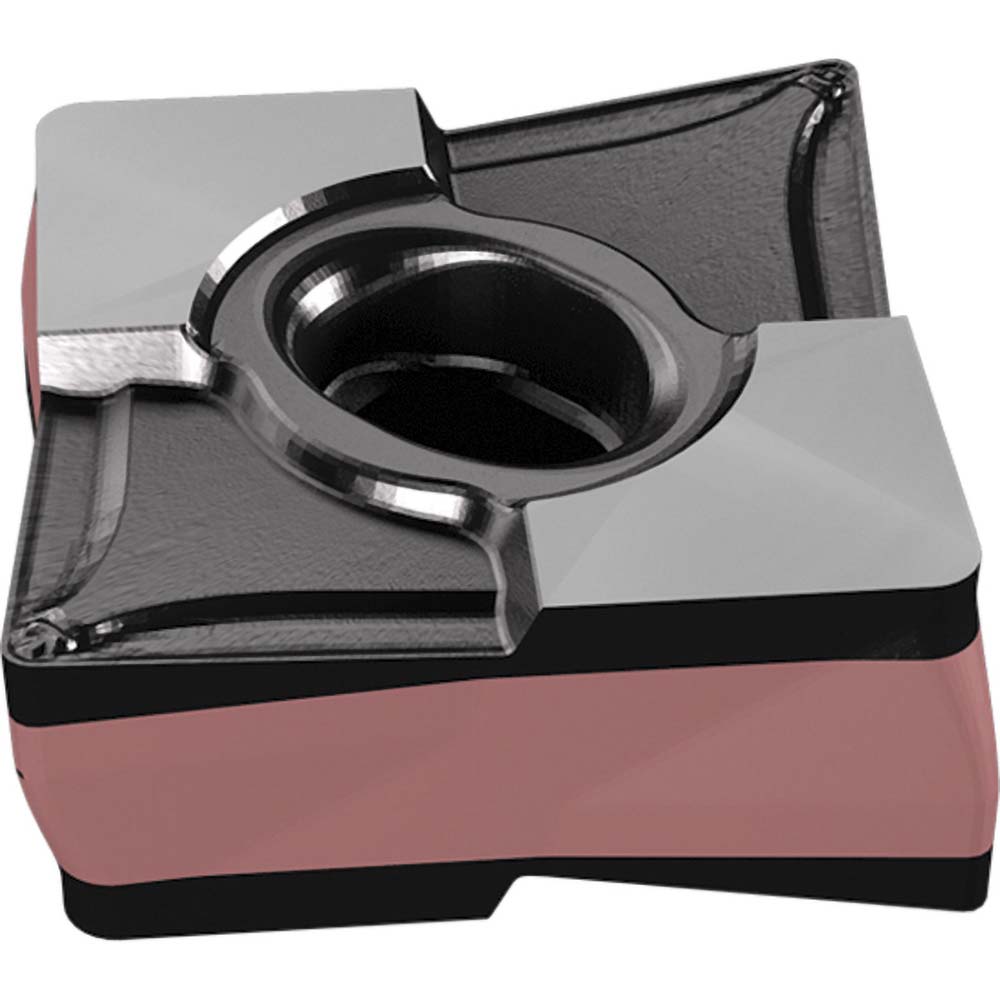

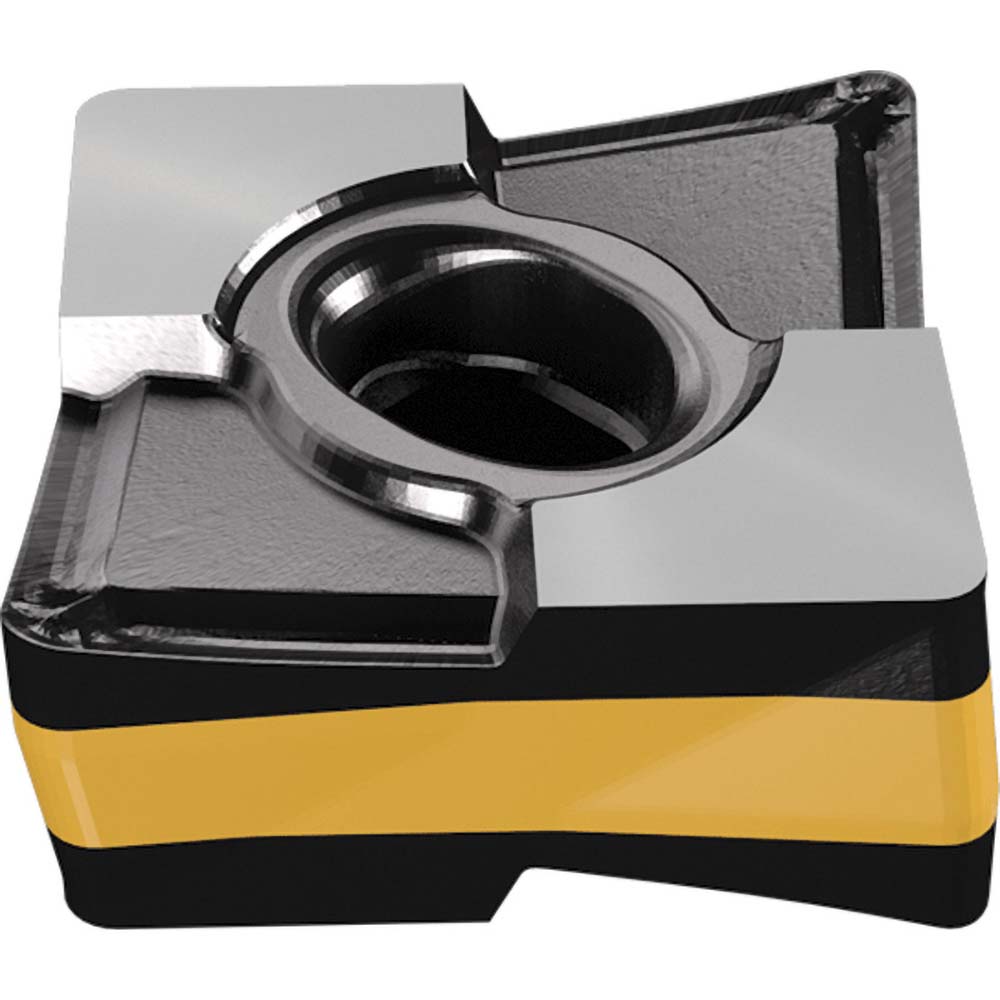

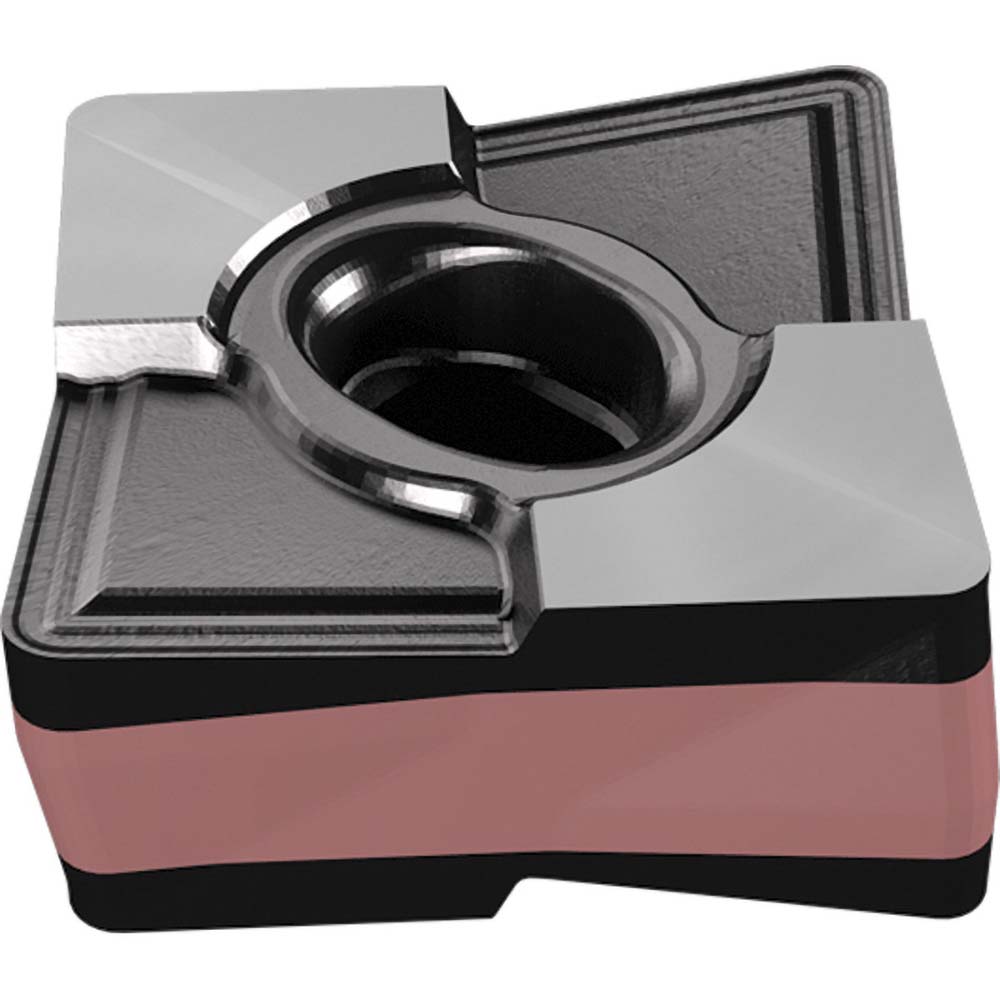

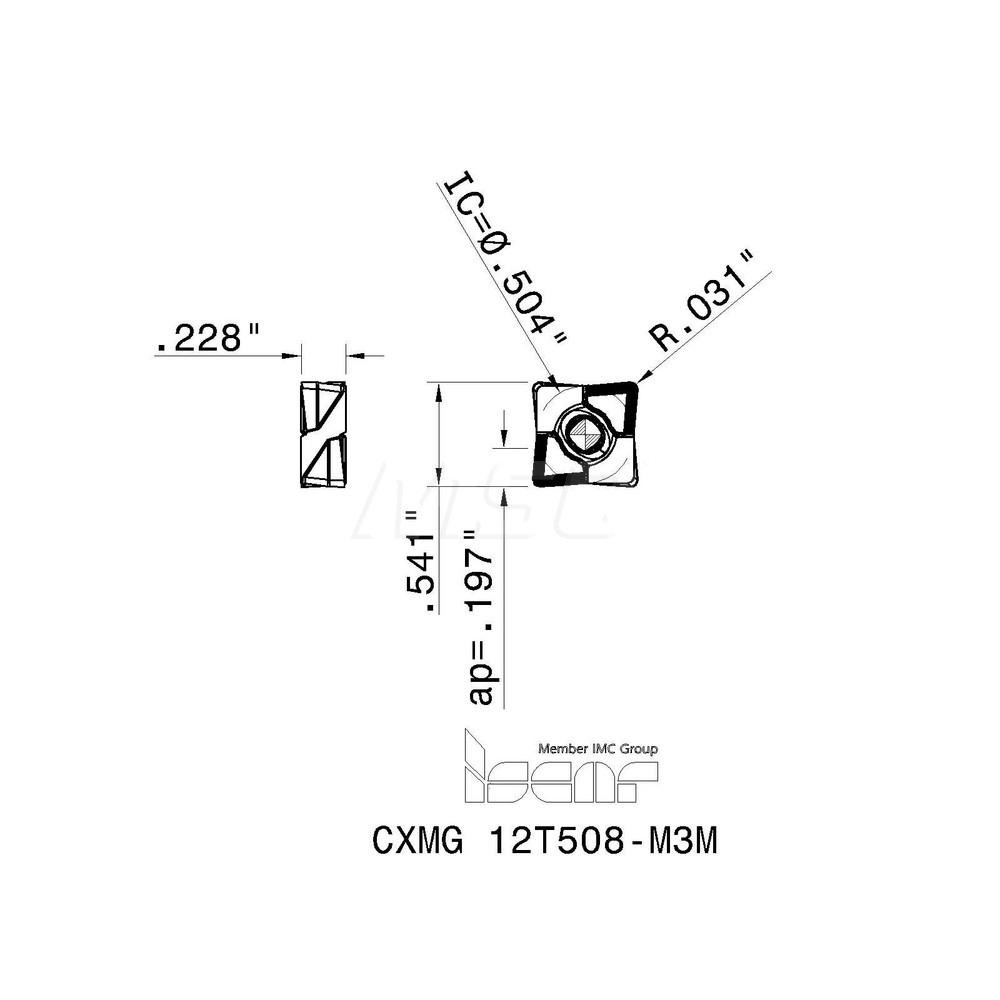

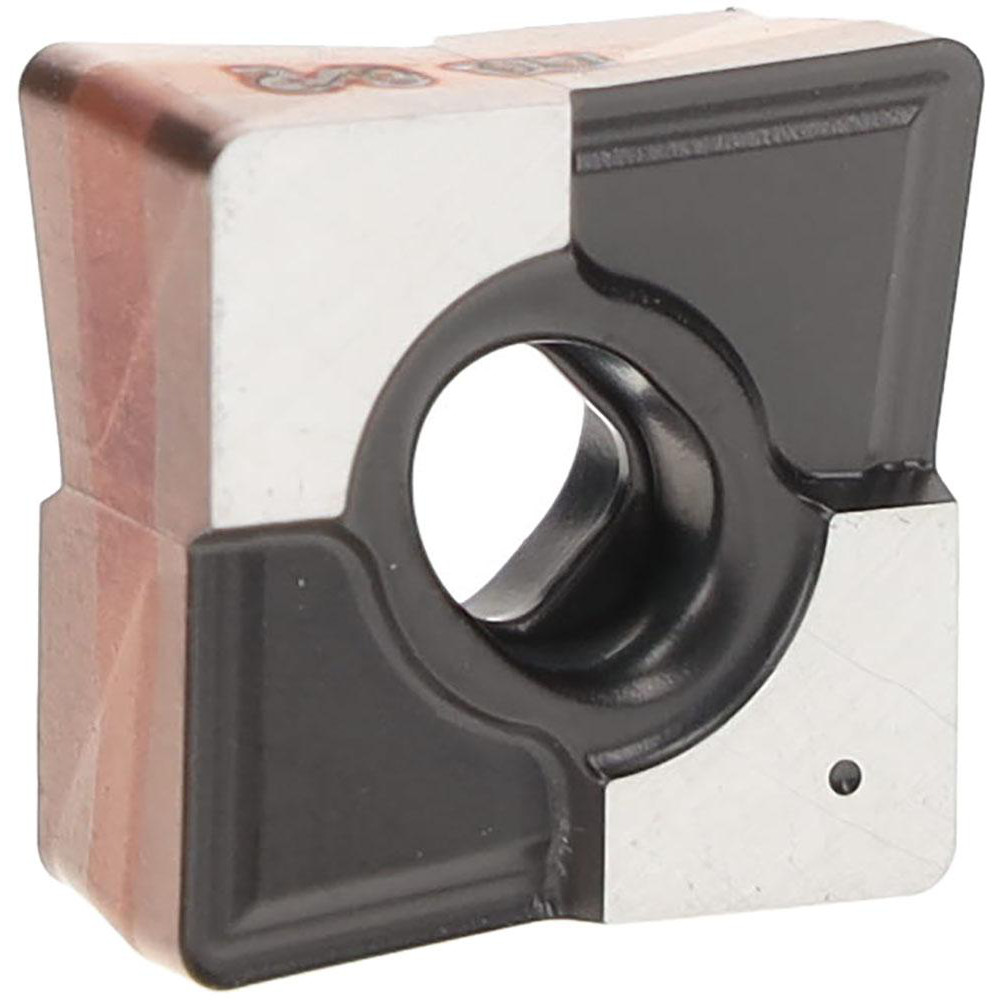

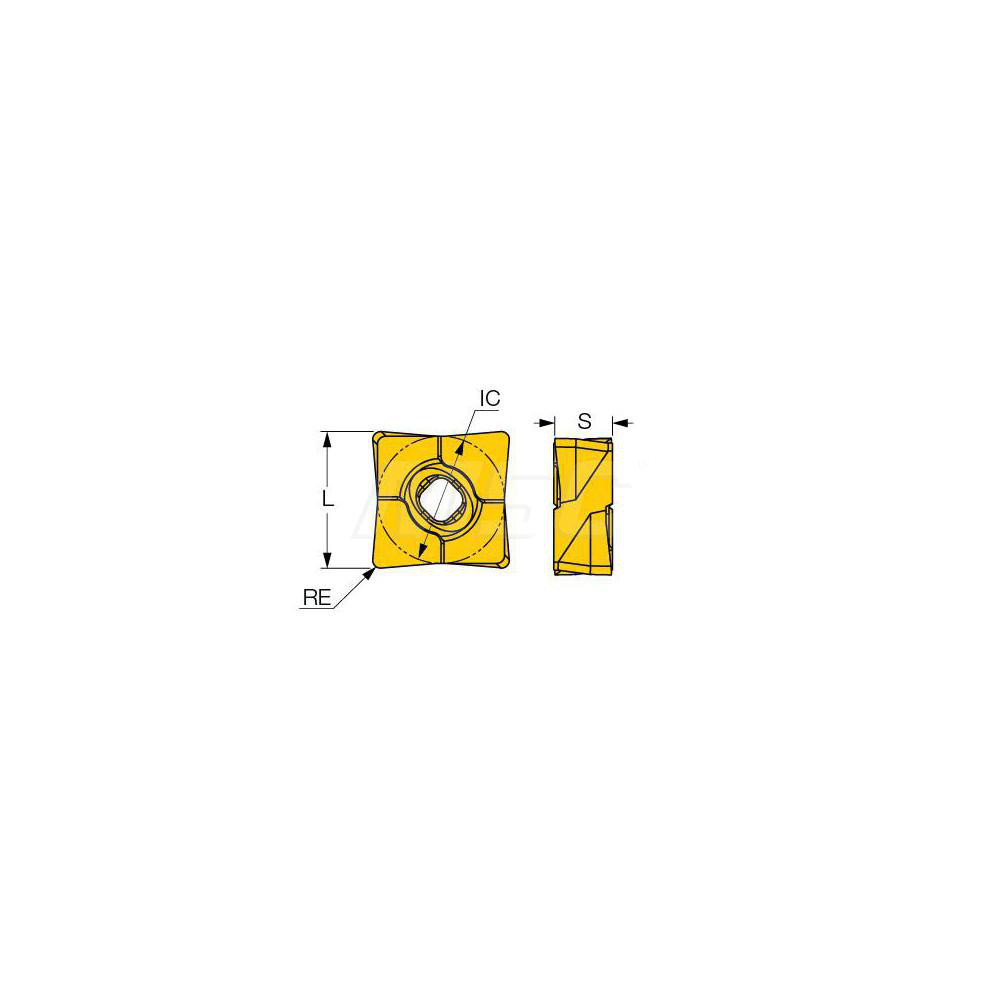

AlTiN Finish, 0.54 mm Long, 0.80 mm Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series Logiq4turn
| Insert Style | CXMG |
|---|---|
| ISO Size Code | 12T508 |
| ANSI Size Code | 12T508 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.4920 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Manufacturer Grade | IC806 |
| Coating/Finish | AlTiN |
| Insert Thickness (Decimal Inch) | 0.2280 |
| Insert Thickness | 5.79 |
| Series | Logiq4turn |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| ISO Insert Code | CXMG12T508 |
| ANSI Insert Code | CXMG12T508 |
| Clearance Code | X |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (mm) | 0.54 |
| Primary Workpiece Material | Superalloy; Titanium |
| Primary Workpiece Material Code | S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | M3M |
| UNSPSC Code | 23242105 |
| Insert Size Code | 508 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 16421448 |
