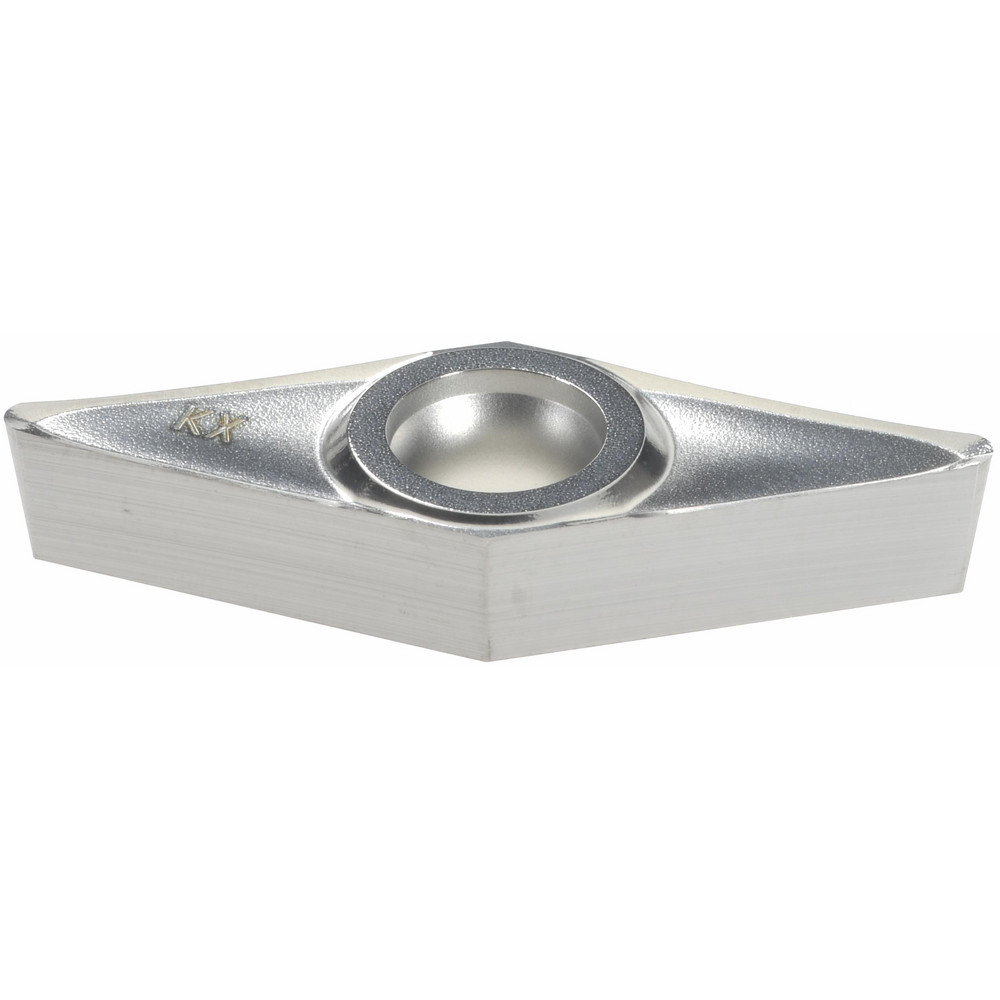

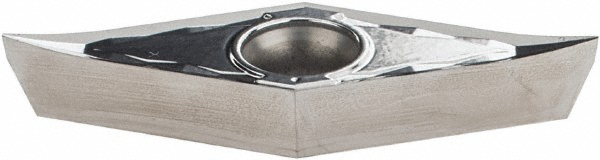

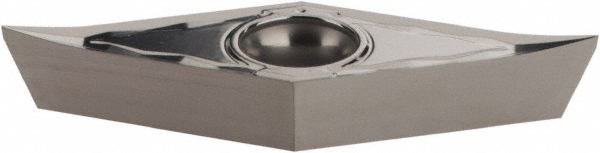

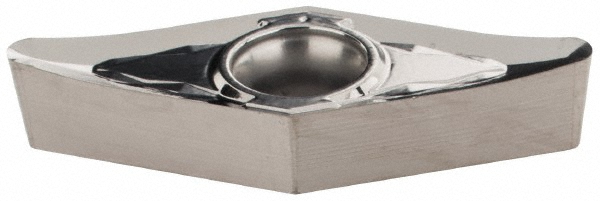

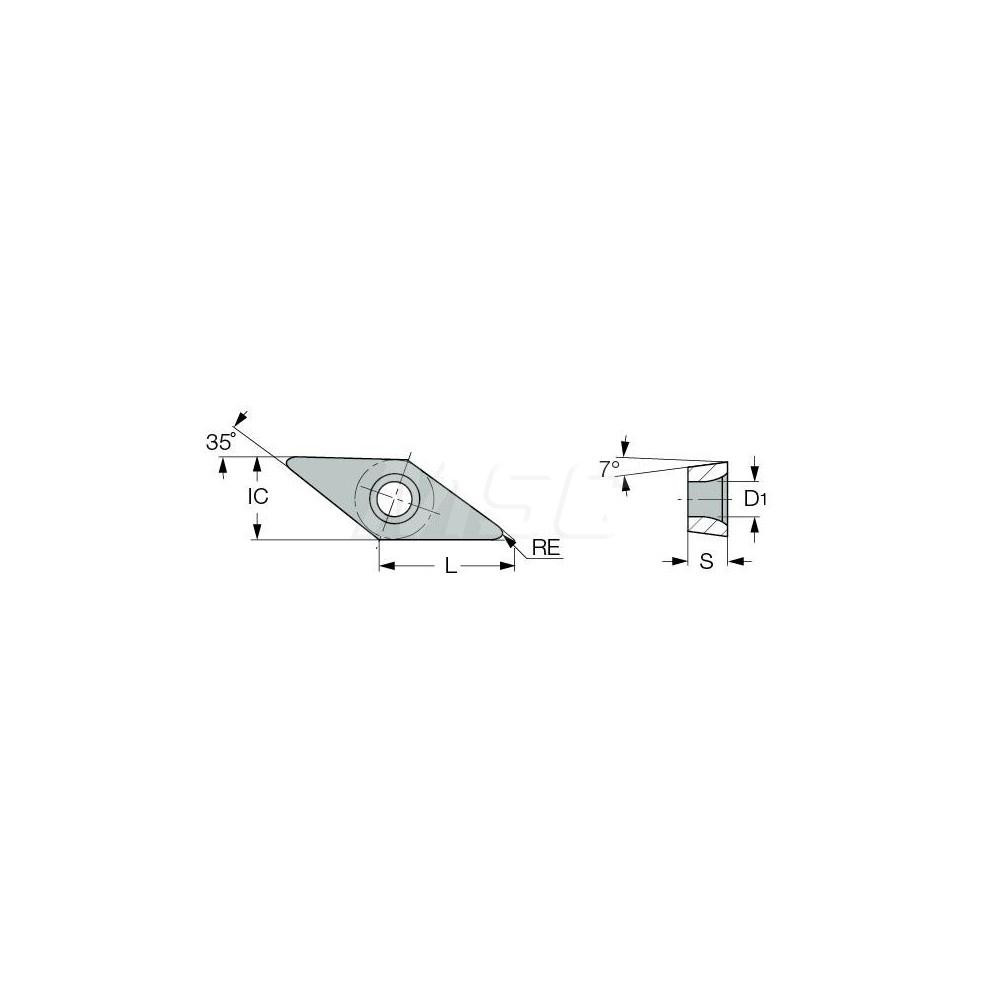

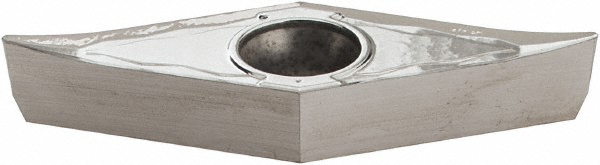

Bright/No Finish, 16.60 mm Long, 35 deg V - Diamond (Rhombic) 35-Deg, Series Isoturn

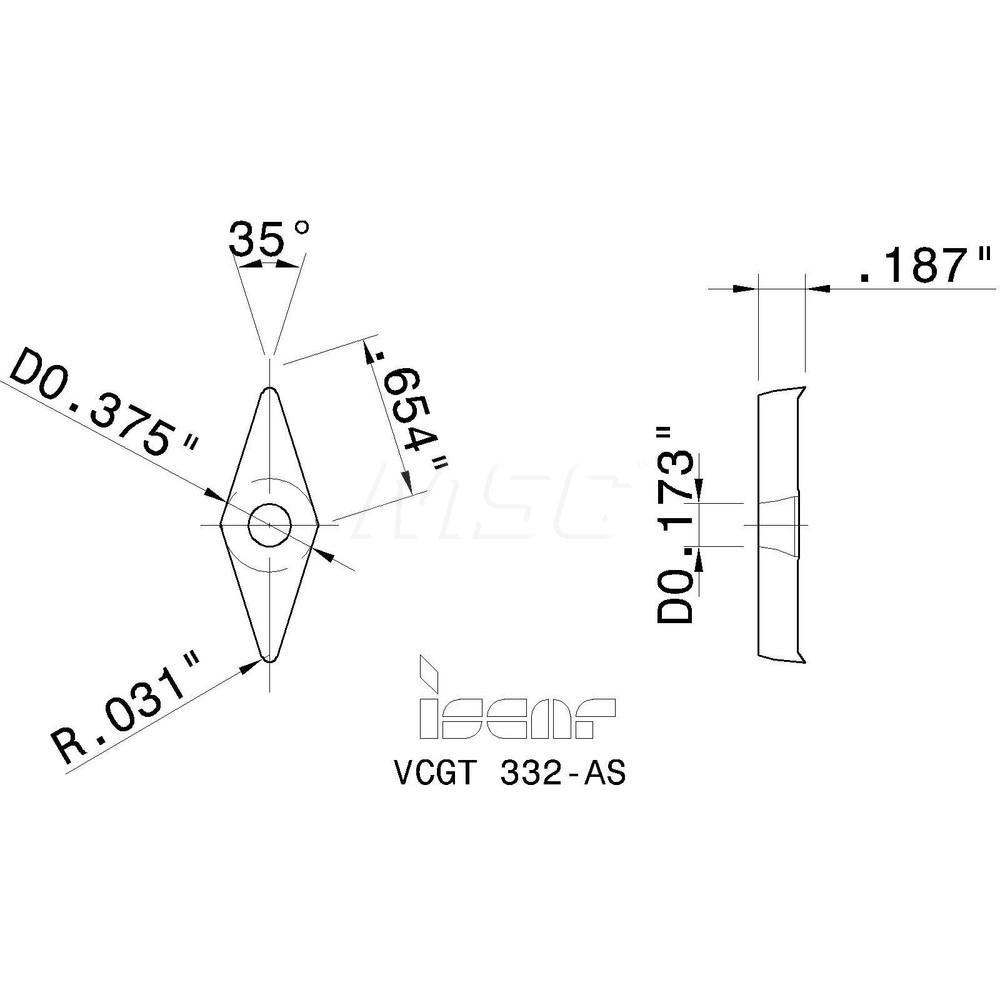

| Insert Style | VCGT |
|---|---|
| ISO Size Code | 160408 |
| ANSI Size Code | 332 |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Included Angle | 35 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Manufacturer Grade | IC20 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 7 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Thickness (Inch) | 3/16 |
| Series | Isoturn |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Finishing |
| Side Clearance | Positive |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| ISO Insert Code | VCGT160408 |
| ANSI Insert Code | VCGT332 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6535 |
| Insert Length (mm) | 16.60 |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Hard Material; N |
| Secondary Workpiece Material Code | H; N |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Material Grade | C3; C2 |
| Chip Breaker | AS |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
| Country of Origin | South Korea |
| Pros | No Pros |
| Cons | No Cons |
| Ease of Use | 4 |
| Value | 4 |
| MSC Number | MSC# 52741667 |
