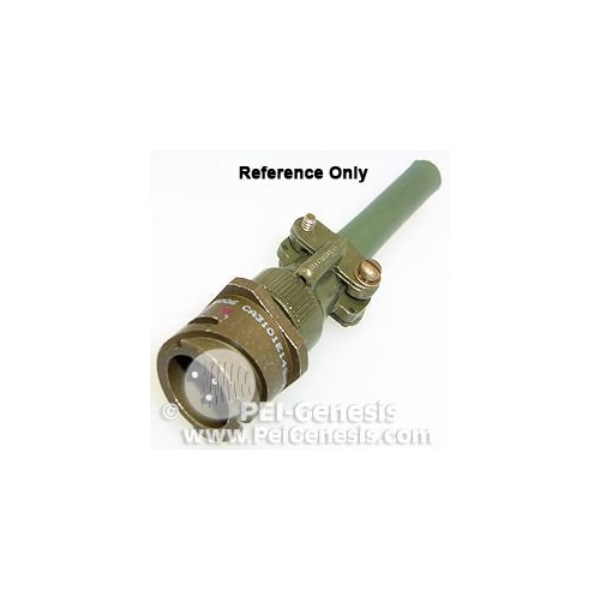

C02998 2001 SB81824
| Contact Plating | Silver |
|---|---|
| Shell Plating | Olive Drab Cadmium |
| Operating Voltage DC | 700 |
| Contact Mating Life | 500 |
| Shell Material | Aluminum Alloy |
| Shielding | Yes |
| Service Rating | A |
| Termination Method | Solder |
| No. of Contacts | 37 |
| Contact Material | Copper Alloy |
| Insert Material | Neoprene |
| Operating Voltage AC V RMS Max | 500 |
| Insert Rotation/Keying | W |
| Connector Style | Receptacle |
| Contact Size | 37#15 |
| Rotation Angle | 80 |
| Insert Arrangement | 28 to 21 |
| Endbell Type | Cable Clamp |
| Mounting Type | Cable |
| Orientation | Straight |
| Connector Type | Circular |
| Sealing | IP67 |
| Specification | VG95234 |
| Shell Color | Olive Drab |
| Contact Style | Pin |
| Contacts Supplied | Yes |
| Amperage Rating | 22A |
| Grommet & Seals Material | Polychloroprene |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Package Quantity | 1 |
