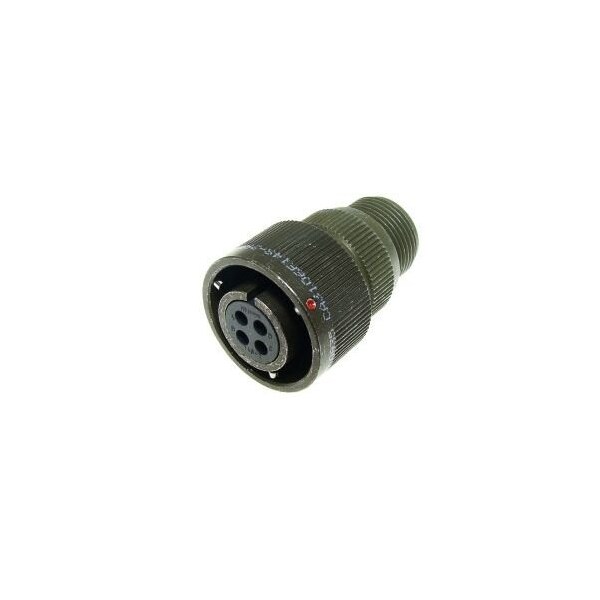

Conector hembra de alta calidad y durabilidad para aplicaciones industriales. El CAB 2C 28 SKT PLUG de Itt Cannon ofrece un rendimiento excepcional y una conexión segura. Compatible con diversos sistemas y equipos eléctricos.
| Item | Pin & Sleeve Plug |
|---|---|
| Crimp Wire Gauge | 8, 10 |
| Shielding | Yes |
| No. of Contacts | 2 |
| Shell Color | Olive Drab |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Contact Material | Alloy |
| Termination Method | Crimp |
| Contact Size | 1#0 |
| Insert Arrangement | 20-23 |
| Contact Style | Pin |
| Shell Material | Aluminum Alloy |
| Contact Plating | Silver |
| Operating Voltage DC | 700 |
| Contacts Supplied | Yes |
| Connector Style | Plug |
| Contact Mating Life | 500 |
| Specification | VG95234 |
| Mounting Type | Cable |
| Insert Material | Neoprene |
| Connector Type | Circular |
| Shell Plating | Olive Drab Cadmium |
| Service Rating | A |
| Orientation | Straight |
| Operating Voltage AC V RMS Max | 500 |
| Grommet & Seals Material | Polychloroprene |
| Package Quantity | 1 |
