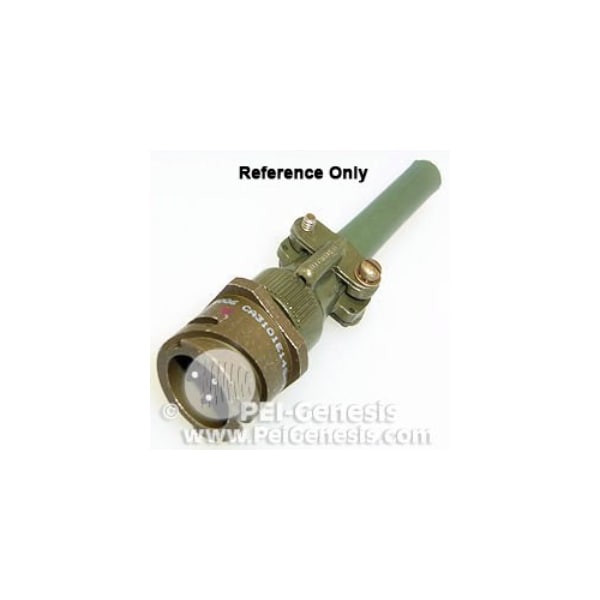

CANCA3101E24A28SBF80F42
| Shell Plating | Olive Drab Cadmium |
|---|---|
| Contact Size | 28#15 |
| Connector Type | Circular |
| Amperage Rating | 22A |
| Contact Style | Pin |
| Contacts Supplied | Yes |
| Shell Material | Aluminum Alloy |
| Grommet & Seals Material | Polychloroprene |
| Specification | VG95234 |
| Crimp Wire Gauge | 18,16 |
| Contact Material | Copper Alloy |
| Shell Color | Olive Drab |
| Contact Mating Life | 500 |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Insert Arrangement | 24A28 |
| Mounting Type | Cable |
| Insert Material | Neoprene |
| Service Rating | I |
| Shielding | Yes |
| Operating Voltage DC | 250 |
| No. of Contacts | 28 |
| Operating Voltage AC V RMS Max | 200 |
| Termination Method | Crimp |
| Connector Style | Receptacle |
| Contact Plating | Silver |
| Package Quantity | 1 |
