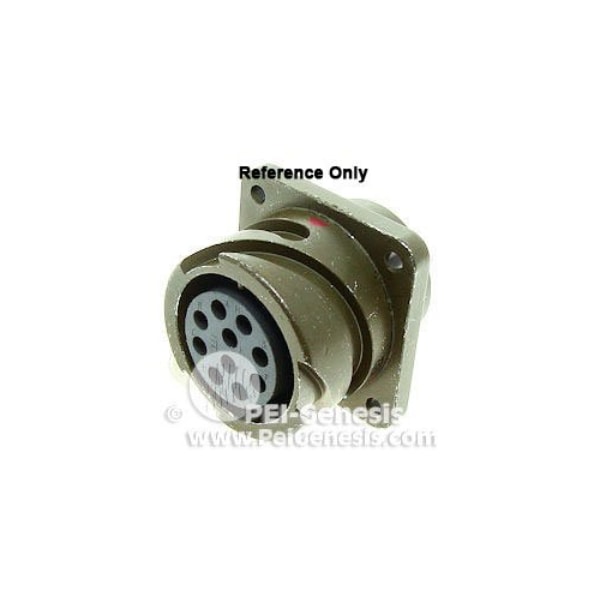

CANCA3102E2410SWBF80F0
| Sealing | IP67 |
|---|---|
| Insert Rotation/Keying | W |
| Contacts Supplied | No |
| Shell Color | Olive Drab |
| Mounting Type | Box - Front Mount - Thru Holes |
| Contact Mating Life | 500 |
| Amperage Rating | 135A |
| Contact Material | Copper Alloy |
| Shell Material | Aluminum Alloy |
| Contact Size | 4#8 |
| Crimp Wire Gauge | 8, 10 |
| Shielding | Yes |
| Rotation Angle | 80 |
| Specification | VG95234 |
| Operating Voltage DC | 1,250 |
| Connector Type | Circular |
| No. of Contacts | 4 |
| Service Rating | A |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Shell Plating | Olive Drab Cadmium |
| Insert Arrangement | 24 to 10 |
| Operating Voltage AC V RMS Max | 500 |
| Contact Plating | Silver |
| Connector Style | Receptacle |
| Termination Method | Crimp |
| Insert Material | Neoprene |
| Contact Style | Pin |
| Grommet & Seals Material | Polychloroprene |
| Package Quantity | 1 |
