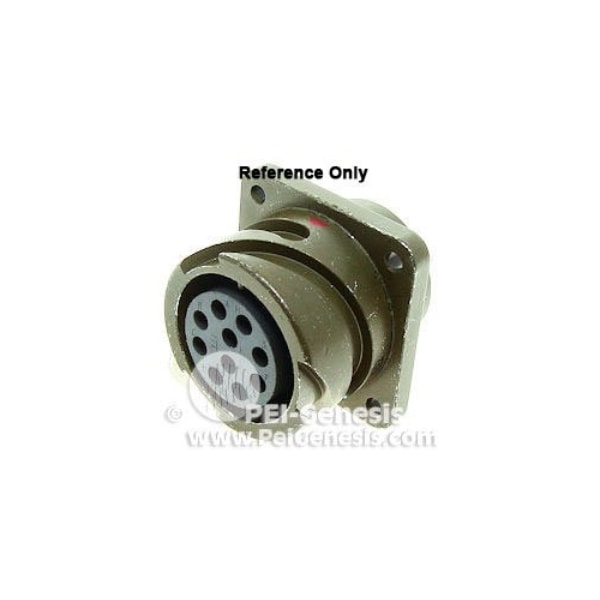

CANCA3102E2411PZBF80F0
| Rotation Angle | 325 |
|---|---|
| Insert Arrangement | 24 to 11 |
| Service Rating | A |
| Insert Rotation/Keying | Z |
| Termination Method | Crimp |
| Crimp Wire Gauge | 12, 14, 8, 10 |
| Mounting Type | Box - Front Mount - Thru Holes |
| Contact Plating | Silver |
| Operating Voltage AC V RMS Max | 500 |
| Amperage Rating | 41A & 74A |
| Sealing | IP67 |
| Contact Material | Copper Alloy |
| Connector Type | Circular |
| Grommet & Seals Material | Polychloroprene |
| Contact Size | 4#8 |
| Shell Color | Olive Drab |
| No. of Contacts | 9 |
| Shell Plating | Olive Drab Cadmium |
| Contacts Supplied | No |
| Contact Mating Life | 500 |
| Connector Style | Receptacle |
| Shielding | Yes |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Specification | VG95234 |
| Insert Material | Neoprene |
| Operating Voltage DC | 700 |
| Contact Style | Pin |
| Shell Material | Aluminum Alloy |
| Package Quantity | 1 |
