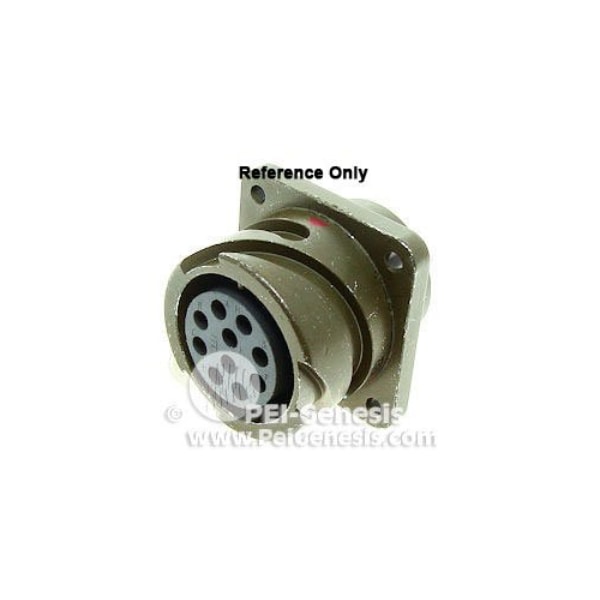

CB 23C 24 38 212 1616 PIN
| Service Rating | A |
|---|---|
| Termination Method | Crimp |
| Grommet & Seals Material | Polychloroprene |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Rotation Angle | 80 |
| Contact Style | Pin |
| Connector Type | Circular |
| Operating Voltage AC V RMS Max | 500 |
| No. of Contacts | 23 |
| Specification | VG95234 |
| Shell Material | Aluminum Alloy |
| Shielding | Yes |
| Insert Rotation/Keying | W |
| Insert Arrangement | 32 to 6 |
| Insert Material | Neoprene |
| Shell Plating | Olive Drab Cadmium |
| Contact Material | Copper Alloy |
| Contacts Supplied | Yes |
| Sealing | IP67 |
| Connector Style | Receptacle |
| Contact Plating | Silver |
| Amperage Rating | 22A & 41A & 74A & 135A |
| Contact Size | 16#15,2#25,3#60/100,2#160 |
| Shell Color | Olive Drab |
| Crimp Wire Gauge | 18,16,14,12,10,8,4 |
| Contact Mating Life | 500 |
| Operating Voltage DC | 700 |
| Mounting Type | Box - Front Mount - Thru Holes |
| Package Quantity | 1 |
