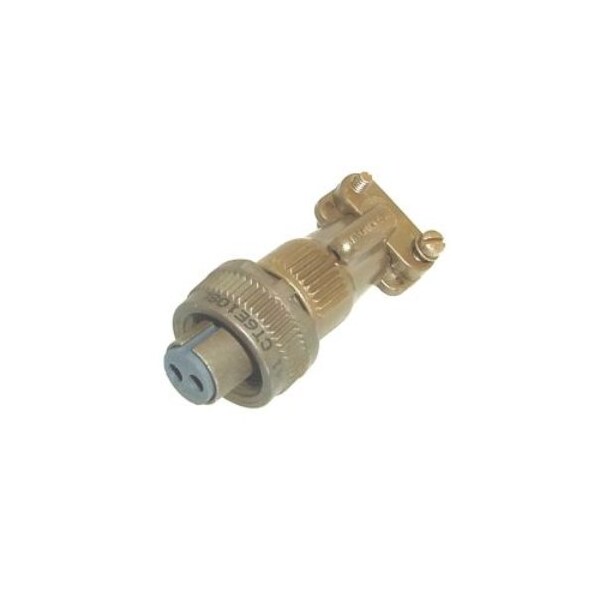

ER 2C 216S SKT PLUG
| Sealing | No |
|---|---|
| Grommet & Seals Material | Silicone |
| Termination Method | Solder |
| Shell Color | Olive Drab |
| Contacts Supplied | Yes |
| Amperage Rating | 13A |
| Contact Style | Pin |
| No. of Contacts | 2 |
| Shielding | Yes |
| Insert Rotation/Keying | Normal |
| Service Rating | A |
| Contact Mating Life | 2,000 |
| Operating Voltage AC V RMS Max | 500 |
| Shell Material | Aluminum Alloy |
| Operating Temperature °F (°C) | -55 C to + 125 C (-67 F to + 257 F) |
| Contact Material | Copper Alloy |
| Operating Voltage DC | 700 |
| Specification | MIL-DTL-5015 Type |
| Insert Material | Neoprene |
| Shell Plating | Olive Drab Cadmium |
| Connector Type | Circular |
| Contact Plating | Silver |
| Contact Size | 2#16 |
| Insert Arrangement | 10SL-4 |
| Connector Style | Plug |
| Mounting Type | Cable |
| Package Quantity | 1 |
