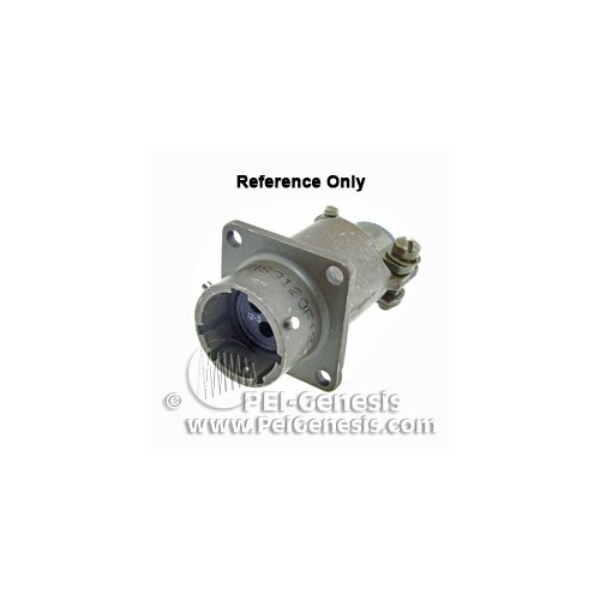

El conector de pines KPSE 15C 1420 116 PIN RECP de Itt Cannon proporciona una conexión segura y confiable en aplicaciones técnicas. Fabricado con materiales de alta calidad para garantizar un rendimiento óptimo.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Operating Voltage AC V RMS Max | 600 |
| Insert Material | Neoprene |
| Shielding | Yes |
| No. of Contacts | 15 |
| Contact Material | Alloy |
| Crimp Wire Gauge | 20, 22, 24, 16, 18 |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Contact Mating Life | 500 |
| Shell Color | Black |
| Insert Rotation/Keying | W |
| Shell Plating | Black Zinc Cobalt |
| Mounting Type | Mount Holes |
| Contacts Supplied | Yes |
| Contact Size | 1#16, 14#20 |
| Service Rating | I |
| Grommet & Seals Material | Neoprene |
| Termination Method | Crimp |
| Sealing | IP67 |
| Rotation Angle | 17 |
| Connector Style | Receptacle |
| Connector Type | Circular |
| Contact Plating | 50 microinches Gold Plate on Activated Area |
| Contact Style | Pin |
| Insert Arrangement | 14 to 15 |
| Operating Voltage DC | 850 |
| Shell Material | Aluminum Alloy |
| Package Quantity | 1 |
