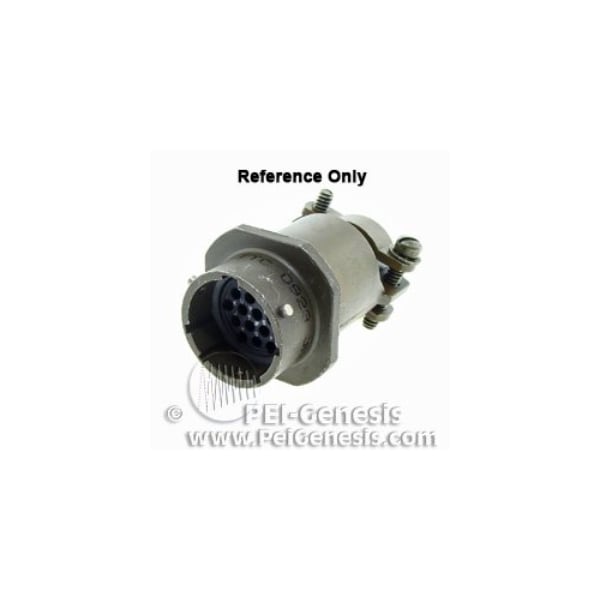

kpse 15c 1420 116 skt recp
| Termination Method | Crimp |
|---|---|
| Grommet & Seals Material | Neoprene |
| Shell Material | Aluminum Alloy |
| Amperage Rating | 13A |
| Contact Style | Socket |
| Endbell Type | Cable Clamp |
| Orientation | Straight |
| Operating Voltage AC V RMS Max | 1,000 |
| Connector Style | Receptacle |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Shielding | Yes |
| Shell Plating | Olive Drab Cadmium |
| Contact Mating Life | 500 |
| Service Rating | I |
| No. of Contacts | 15 |
| Contacts Supplied | No |
| Connector Type | Circular |
| Shell Color | Olive Drab |
| Insert Arrangement | 14 to 15 |
| Operating Voltage DC | 1,275 |
| Contact Size | 14#20, 1#16 |
| Insert Material | Neoprene |
| Mounting Type | Cable |
| Crimp Wire Gauge | 16, 22, 24, 20, 18 |
| Package Quantity | 1 |
