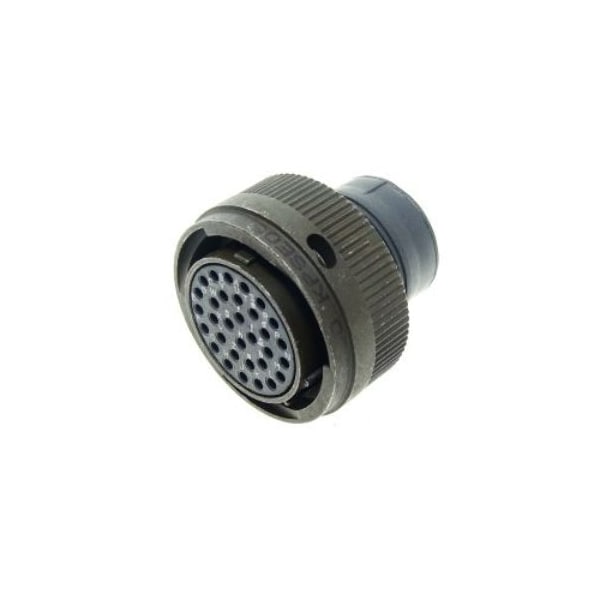

KPSE 19C 1920 SKT PLUG
| Amperage Rating | 13A |
|---|---|
| Shell Color | Olive Drab |
| Termination Method | Crimp |
| Contact Style | Socket |
| Insert Material | Neoprene |
| Sealing | IP67 |
| Connector Style | Plug |
| Connector Type | Circular |
| Mounting Type | Cable |
| No. of Contacts | 19 |
| Contact Plating | 50 microinches Gold Plate |
| Shell Plating | Olive Drab Cadmium |
| Contact Material | Copper Alloy |
| Operating Voltage AC V RMS Max | 600 |
| Contact Size | 19#20 |
| Contacts Supplied | No |
| Insert Rotation/Keying | Normal |
| Service Rating | I |
| Contact Mating Life | 500 |
| Crimp Wire Gauge | 22, 24, 20 |
| Specification | MIL-DTL-26482 |
| Grommet & Seals Material | Neoprene |
| Shell Material | Aluminum Alloy |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Shielding | Yes |
| Operating Voltage DC | 850 |
| Insert Arrangement | 14 to 19 |
| Package Quantity | 1 |
