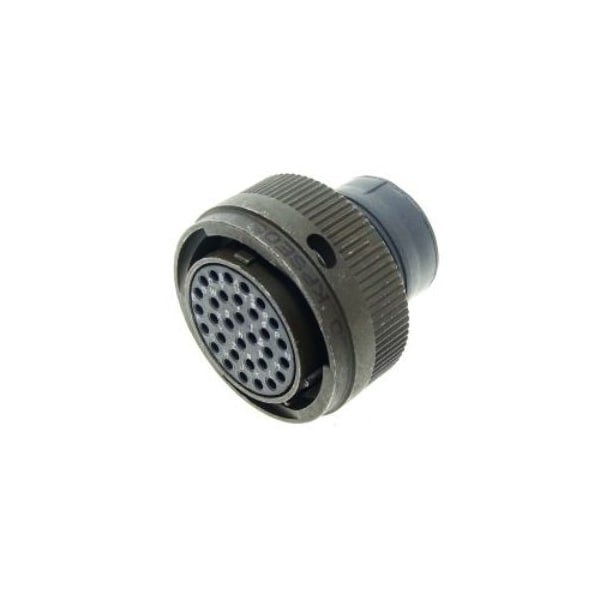

El conector macho KPSE 26C 2620 de Itt Cannon es una pieza de alta calidad que garantiza una conexión segura y confiable. Diseñado para aplicaciones técnicas exigentes, este conector es la opción perfecta para tus proyectos.
| Item | Pin & Sleeve Plug |
|---|---|
| Contact Size | 26#20 |
| Service Rating | I |
| Termination Method | Crimp |
| Insert Material | Neoprene |
| Contact Mating Life | 500 |
| Sealing | IP67 |
| Insert Arrangement | 16-26 |
| Crimp Wire Gauge | 20, 22, 24 |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Operating Voltage AC V RMS Max | 600 |
| Shell Material | Aluminum Alloy |
| Shell Color | Olive Drab |
| Shell Plating | Olive Drab Cadmium |
| Orientation | Straight |
| Shielding | Yes |
| Contact Style | Socket |
| No. of Contacts | 26 |
| Endbell Type | Compression Nut |
| Mounting Type | Cable |
| Contacts Supplied | No |
| Operating Voltage DC | 850 |
| Connector Type | Circular |
| Grommet & Seals Material | Neoprene |
| Connector Style | Plug |
| Package Quantity | 1 |
