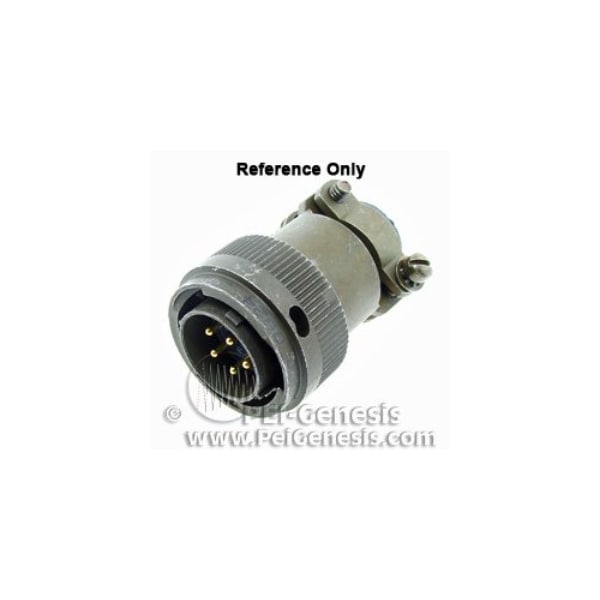

KPT 06 CLASS A 1020 PIN A71
| Contact Size | 10#20 |
|---|---|
| Shielding | Yes |
| Insert Arrangement | 45270 |
| Mounting Type | Cable |
| Contact Material | Copper Alloy |
| Amperage Rating | 13A |
| Insert Material | Neoprene |
| Operating Voltage AC V RMS Max | 600 |
| Contact Plating | Gold |
| Insert Rotation/Keying | Normal |
| Termination Method | Solder |
| Shell Material | Aluminum Alloy |
| Operating Voltage DC | 850 |
| Contacts Supplied | Yes |
| Grommet & Seals Material | Neoprene |
| Sealing | Unsealed |
| Contact Style | Pin |
| Shell Color | Nickel |
| Connector Type | Circular |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| No. of Contacts | 10 |
| Specification | MIL-DTL-26482 |
| Connector Style | Plug |
| Contact Mating Life | 500 |
| Service Rating | I |
| Shell Plating | Nickel |
| Package Quantity | 1 |
