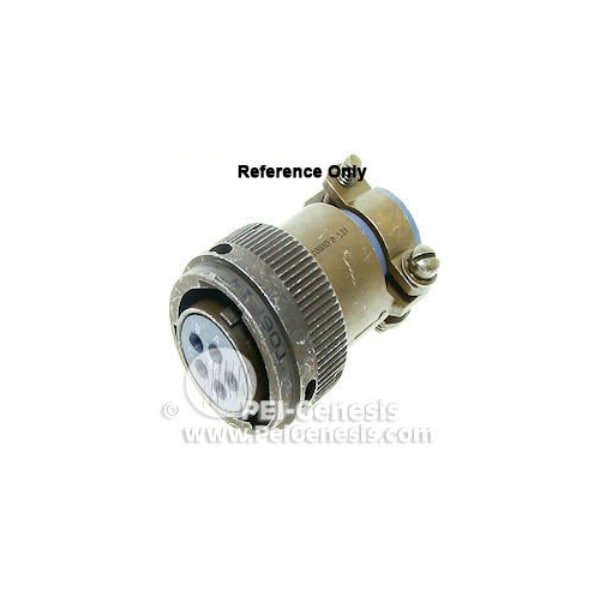

KPT 06 CLASS F 2116 SKT
| Connector Style | Plug |
|---|---|
| Contact Material | Copper Alloy |
| Shell Color | Olive Drab |
| Connector Type | Circular |
| No. of Contacts | 21 |
| Contact Size | 21#16 |
| Grommet & Seals Material | Neoprene |
| Contact Mating Life | 500 |
| Shell Material | Aluminum Alloy |
| Endbell Type | Cable Clamp |
| Orientation | Straight |
| Rotation Angle | 135 |
| Sealing | IP67 |
| Contact Plating | 50 microinches Gold Plate on Activated Area |
| Contact Style | Socket |
| Contacts Supplied | Yes |
| Amperage Rating | 13A |
| Insert Rotation/Keying | X |
| Operating Voltage DC | 1,275 |
| Service Rating | II |
| Shielding | Yes |
| Operating Voltage AC V RMS Max | 1,000 |
| Insert Material | Neoprene |
| Insert Arrangement | 22 to 21 |
| Termination Method | Solder |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Shell Plating | Olive Drab Cadmium |
| Mounting Type | Cable |
| Package Quantity | 1 |
