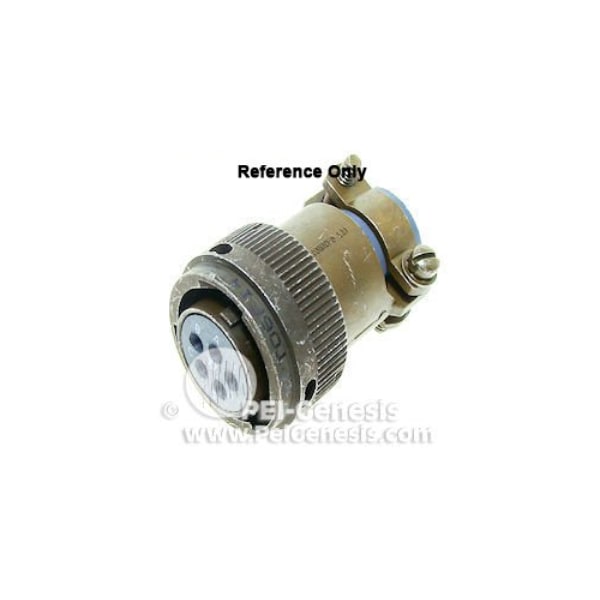

KPT 06 CLASS J 5520 PIN X
| Insert Rotation/Keying | X |
|---|---|
| Service Rating | I |
| Mounting Type | Cable |
| Operating Voltage AC V RMS Max | 600 |
| Contact Material | Copper Alloy |
| Contact Size | 27#20, 14#16 |
| Contact Mating Life | 500 |
| No. of Contacts | 41 |
| Contact Plating | 50 microinches Gold Plate on Activated Area |
| Shell Material | Aluminum Alloy |
| Amperage Rating | 13A |
| Orientation | Straight |
| Endbell Type | Gland Sealed - Cable Clamp |
| Grommet & Seals Material | Neoprene |
| Termination Method | Solder |
| Shell Color | Olive Drab |
| Shell Plating | Olive Drab Cadmium |
| Rotation Angle | 142 |
| Insert Material | Neoprene |
| Contacts Supplied | Yes |
| Sealing | IP67 |
| Connector Style | Plug |
| Operating Voltage DC | 850 |
| Shielding | Yes |
| Contact Style | Pin |
| Insert Arrangement | 22 to 41 |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Connector Type | Circular |
| Package Quantity | 1 |
