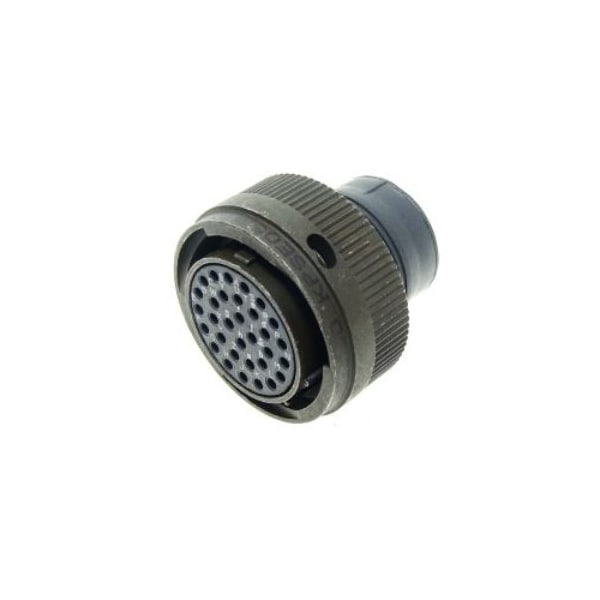

El conector hembra KPT 19C 1920 de Itt Cannon es una pieza de alta calidad y confiabilidad para tus necesidades de conexión. Fabricado con los mejores estándares y materiales para garantizar un rendimiento óptimo en aplicaciones industriales y comerciales.
| Item | Pin & Sleeve Plug |
|---|---|
| Contact Style | Socket |
| Mounting Type | Cable |
| Contact Plating | 50 microinches Gold Plate on Activated Area |
| Sealing | IP67 |
| Contact Material | Alloy |
| Grommet & Seals Material | Neoprene |
| Contact Size | 18#20 |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Contacts Supplied | Yes |
| Operating Voltage DC | 850 |
| Shell Material | Aluminum Alloy |
| Shell Plating | Olive Drab Cadmium |
| No. of Contacts | 18 |
| Insert Arrangement | 14-18 |
| Orientation | Straight |
| Service Rating | I |
| Operating Voltage AC V RMS Max | 600 |
| Endbell Type | Clamp |
| Shell Color | Olive Drab |
| Contact Mating Life | 500 |
| Connector Type | Circular |
| Shielding | Yes |
| Termination Method | Solder |
| Connector Style | Plug |
| Insert Material | Neoprene |
| Package Quantity | 1 |
