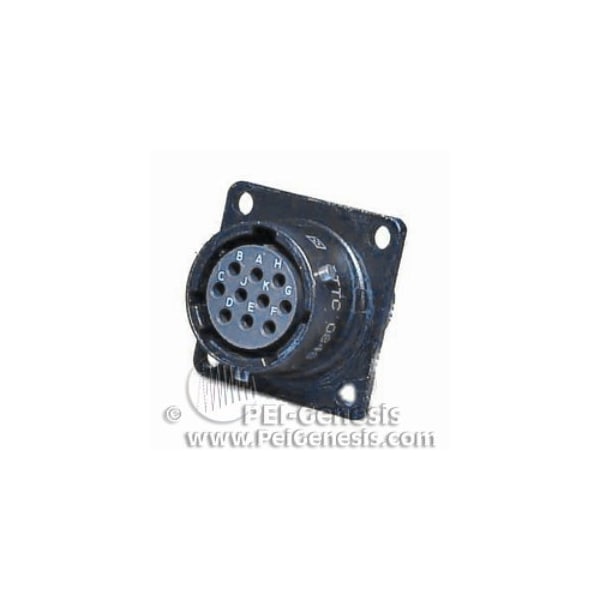

KPT 21C 2116 PIN RECP
| Mounting Type | Box - Front Mount - Thru Holes |
|---|---|
| Shell Material | Aluminum Alloy |
| Insert Material | Neoprene |
| Shell Plating | Black Zinc Cobalt |
| Connector Style | Receptacle |
| Contact Style | Pin |
| Operating Voltage AC V RMS Max | 1,000 |
| Amperage Rating | 13 A |
| Contact Size | 21#16 |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Insert Arrangement | 22-21 |
| Shell Color | Black |
| No. of Contacts | 21 |
| Operating Voltage DC | 1,275 |
| Service Rating | II |
| Package Quantity | 1 |
