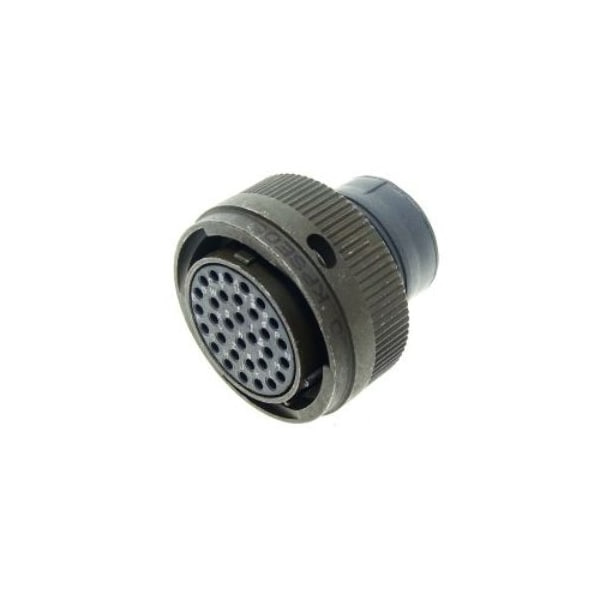

KPT 5C 516 SKT PLUG
| Rotation Angle | 92 |
|---|---|
| Shell Plating | Olive Drab Cadmium |
| Operating Voltage DC | 1,275 |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Service Rating | II |
| Grommet & Seals Material | Neoprene |
| Termination Method | Solder |
| Contact Plating | 50 microinches Gold Plate on Activated Area |
| Contact Mating Life | 500 |
| Insert Material | Neoprene |
| Contact Style | Socket |
| Operating Voltage AC V RMS Max | 1,000 |
| Contacts Supplied | Yes |
| Shielding | Yes |
| Shell Material | Aluminum Alloy |
| Shell Color | Olive Drab |
| Insert Arrangement | 14 to 5 |
| Connector Type | Circular |
| Contact Material | Copper Alloy |
| Insert Rotation/Keying | X |
| Mounting Type | Cable |
| Amperage Rating | 13A |
| No. of Contacts | 5 |
| Connector Style | Plug |
| Contact Size | 5#16 |
| Package Quantity | 1 |
