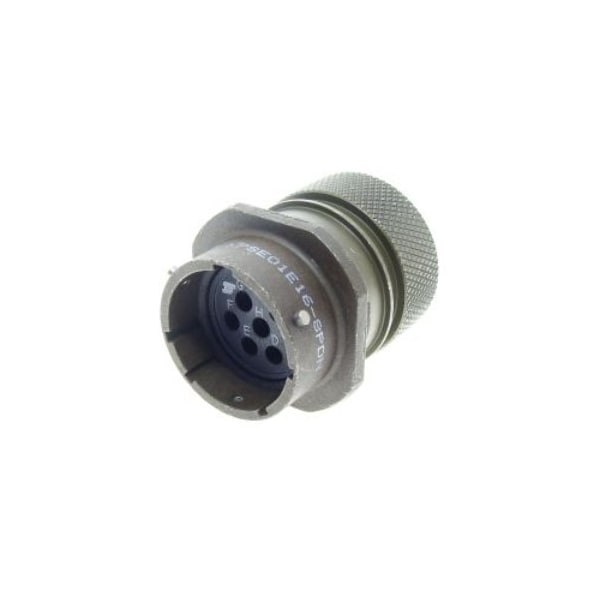

KPT 6C 620 PIN RECP
| Connector Type | Circular |
|---|---|
| Connector Style | Receptacle |
| Termination Method | Solder |
| Contact Material | Copper Alloy |
| No. of Contacts | 6 |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Contact Mating Life | 500 |
| Operating Voltage DC | 850 |
| Rotation Angle | 90 |
| Contacts Supplied | Yes |
| Insert Material | Neoprene |
| Insert Rotation/Keying | W |
| Insert Arrangement | 45205 |
| Contact Size | 6#20 |
| Shell Material | Aluminum Alloy |
| Service Rating | I |
| Mounting Type | Cable |
| Shielding | Yes |
| Contact Plating | 50 microinches Gold Plate on Activated Area |
| Amperage Rating | 13 A |
| Shell Color | Olive Drab |
| Shell Plating | Olive Drab Cadmium |
| Grommet & Seals Material | Neoprene |
| Contact Style | Pin |
| Operating Voltage AC V RMS Max | 600 |
| Package Quantity | 1 |
