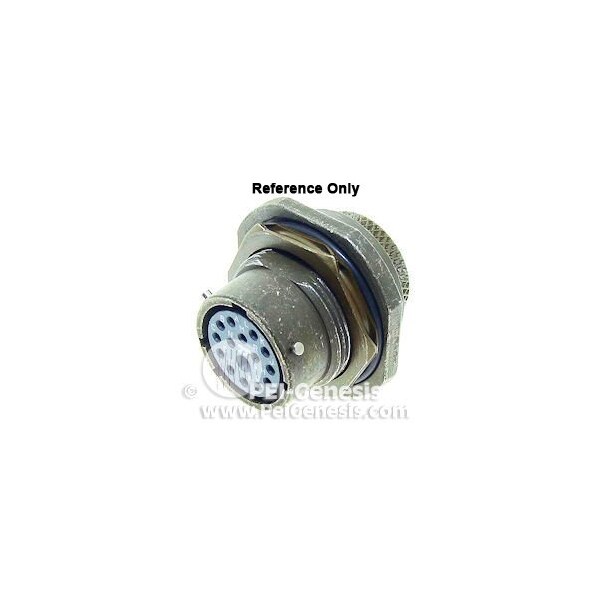

Conector de clavija KPT 6C 620
| Item | Pin & Sleeve Receptacle |
|---|---|
| Connector Type | Circular |
| Orientation | Straight |
| Insert Arrangement | 45205 |
| Shell Color | Olive Drab |
| Insert Material | Neoprene |
| Shielding | Yes |
| Contacts Supplied | Yes |
| Contact Material | Alloy |
| Operating Voltage DC | 850 |
| Shell Plating | Olive Drab Cadmium |
| Mounting Type | Jam Nut - Front Mount |
| Service Rating | I |
| Contact Mating Life | 500 |
| Connector Style | Receptacle |
| Grommet & Seals Material | Neoprene |
| Endbell Type | Nut |
| Contact Size | 6#20 |
| Operating Voltage AC V RMS Max | 600 |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Termination Method | Solder |
| Contact Plating | 50 microinches Gold Plate on Activated Area |
| No. of Contacts | 6 |
| Contact Style | Pin |
| Shell Material | Aluminum Alloy |
| Sealing | IP67 |
| Package Quantity | 1 |
