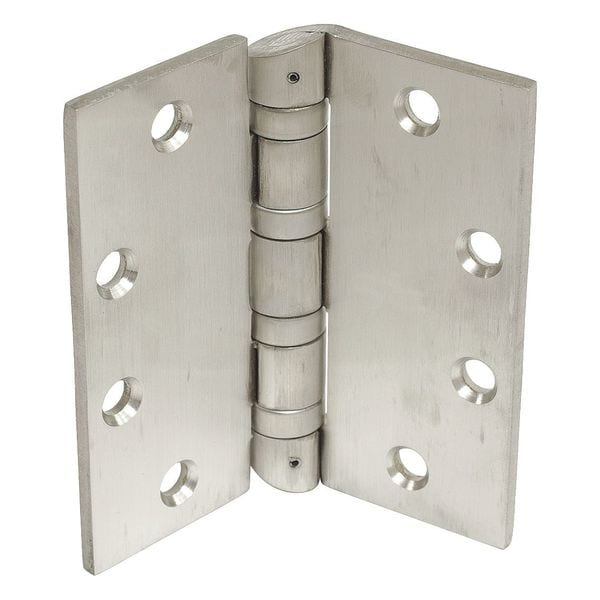

Door and Butt Hinge, Steel, Full Mortise Mounting, 4 1/2 in Leaf W x 4 1/2 in Leaf H
| Corners | Square |
|---|---|
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 0.18 in |
| Door Leaf Width | 4-1/2 in |
| Finish | Satin Chrome Plated |
| Holes per Leaf | 4 |
| Load Capacity | 250 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 1/4 in |
| Range of Motion | 110 deg |
| Required Door Thickness | 1-3/4 in |
| Features | 5 Knuckle; 4 Ball Bearing; Heavy Weight; Hospital Tip |
| Frame Leaf Height | 4-1/2 in |
| Pin Type | Hospital Tip |
| Number of Wires | 0 |
| Pin Material | Steel |
| Holes | With |
| Frame Leaf Thickness | 0.18 in |
| Item | Door and Butt Hinge |
| Frame Leaf Width | 4-1/2 in |
| Standards | ANSI/BHMA 156.7, ANSI/BHMA A156.1, UL R37965 |
| Bearing Type | Ball |
| Hardware | Yes |
| Ligature Resistant | Yes |
| UL Fire Rating | UL10C |
| Overall Width | 4-1/2 in |
| Hinge Number | Not Applicable |
| Hand Orientation | Left-Handed |
| Includes Hardware | Hardware Included |
| Corner Type | Square |
| Number of Holes per Leaf | 4 |
| Ligature-Resistant | Ligature-Resistant |
| Mounting Style | Full Mortise |
| Door Thickness - Minimum | 2 in |
| Resistance Properties | Corrosion-Resistant |
| Door Thickness - Maximum | 1-3/4 in |
| Range of Motion - Maximum | 180 deg |
| Fire Rating | 3 hr |
| Pin Diameter | 11/16 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
