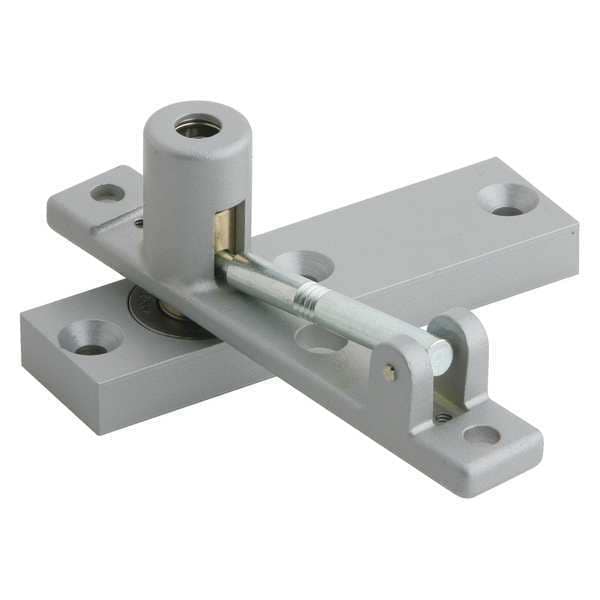

Pivot Hinge, Cast Brass, Center Hung Mounting, 1 1/4 in Leaf W x 1 5/8 in Leaf H
| Item | Pivot Hinge |
|---|---|
| Material | Cast Brass |
| Finish | Satin Chrome Plated |
| Load Capacity | 300 lb |
| Ligature Resistant | No |
| Range of Motion | 180 deg |
| Orientation | Non Handed |
| Mounting | Hung |
| Bearing Type | Sleeve |
| Holes per Leaf | 3 |
| Frame Leaf Width | 1-1/4 in |
| Frame Leaf Height | 1-5/8 in |
| Frame Leaf Thickness | 3/8 in |
| Door Leaf Width | 1-1/4 in |
| Door Leaf Height | 1-5/8 in |
| Door Leaf Thickness | 3/8 in |
| Corners | Square |
| Standards | ANSI A156.4 |
| Pin Material | Brass |
| Required Door Thickness | 1 3/4 in |
| Features | Locking |
| Holes | With |
| Pin Type | Nonremovable |
| Hardware | Included |
| Pin Dia. | 1/2 in |
| Range of Motion - Maximum | 180 deg |
| Pin Diameter | 1/2 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Includes Hardware | Hardware Included |
| Number of Holes per Leaf | 3 |
| Mounting Style | Center Hung |
| Corner Type | Square |
| Includes Holes | Holes Included |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
