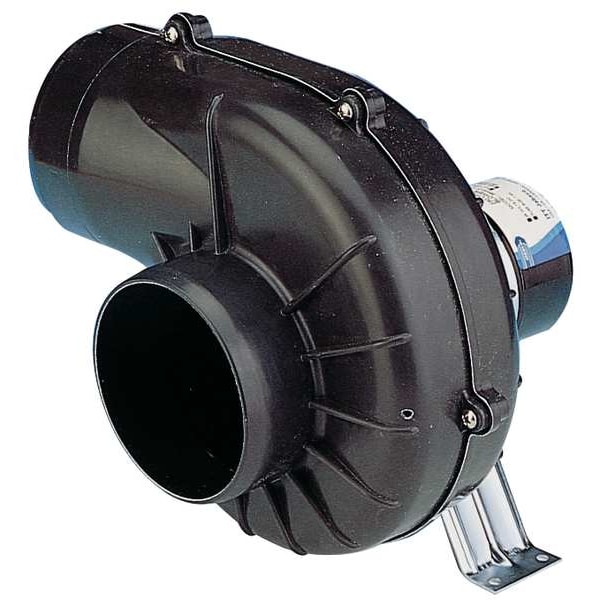

Round OEM Blower, 2500 RPM, Direct Drive, Plastic
| CFM @ 0.100-In. SP | 245 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 5.3 |
| Housing Material | Plastic |
| Includes | Mounting Bracket |
| Inlet Dia. | 4 in |
| Overall Height | 230 mm |
| Overall Width | 220 mm |
| Blower Item | Plastic Blower |
| Blower Outlet Shape | Round |
| With Flange | No |
| Blower Wheel Diameter | 4 in |
| Blower Motor Type | Wound Field DC |
| Blower Voltage | 24V DC |
| Blower Thermal Protection | No Thermal Protection |
| Blower Conduit Box | No |
| CFM @ 0.200-In. SP | 241 |
| CFM @ 0.300-In. SP | 240 |
| CFM @ 2.000-In. SP | 115 |
| Motor Insulation | Class A |
| Lead Length | 15 in |
| Wheel Type | Forward-Curved |
| RPM | 2,500 |
| Max. Ambient Temp. | 130 deg F |
| CFM @ 0.600-In. SP | 225 |
| CFM @ 0.500-In. SP | 230 |
| Agency Compliance | ISO 9097 Marine and ISO 8846, NMMA/USCG Regulation 183.410 |
| CFM @ 0.900-In. SP | 209 cfm |
| CFM @ 0.400-In. SP | 238 |
| CFM @ 1.200-In. SP | 185 cfm |
| Motor Enclosure | Totally Enclosed |
| Housing Finish | Black |
| Overall Depth | 9-3/16 in |
| Mounting Position | Multi Positional |
| Housing Color | Black |
| CFM @ 0.700-In. SP | 215 |
| CFM @ 0.800-In. SP | 212 |
| Blower Wheel Width | 2-1/2 in |
| Max. Inlet Temp. | 130 deg F |
| Bearing Type | Sleeve |
| CFM @ 0.000-In. SP | 250 |
| CFM @ 0.150-In. SP | 243 cfm |
| Item | OEM Blower |
| Outlet Dia. | 4 in |
| CFM @ 1.600-In. SP | 155 cfm |
| CFM @ 1.000-In. SP | 200 cfm |
| Outlet Width | Not Applicable |
| Outlet Height | Not Applicable |
| Wheel Material | Plastic |
| Outlet Shape | Round |
| Maximum Inlet Air Temperature | 130 deg F |
| Motor Duty Class | Intermittent |
| Includes Motor | Yes |
| Includes Mounting Hardware | Yes |
| Flange Type | Non-Flanged |
| Features | Outlet Flange Mounts Directly on Bulkhead, Quiet Running |
| Wheel Diameter | 4 in |
| Mount Type | Multiposition, Flex |
| Housing Material Finish | Black |
| Application | Engine Room Fuel Compartment, Galley or Heads |
| Number of Inlets | 1 |
| Thermal Overload Protection | No |
| Inlet Diameter | 4 in |
| Outlet Diameter | 4 in |
| Current | 5.3 A |
| Electrical Connection | Wire Leads |
| Includes Drive Package | Yes |
| Wheel Width | 2-1/2 in |
| Maximum Ambient Temperature | 130 deg F |
| Motor Insulation Class | A |
| Corrosion Resistant | Yes |
| Motor Speed | 2,500 rpm |
| Airflow @ 0.000 in SP | 250 cfm |
| Maximum Fan Speed | 2,500 rpm |
| Flange Size | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Nameplate Voltage | 24V DC |
| Standards | ISO 8846, ISO 9097, NMMA |
| Motor Type | Wound Field DC |
| Assembly | Assembled |
| OEM Replacement | No |
| Mounting | Multi Positional |
| Voltage | 24VDC |
| Type | Flex Mount |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
