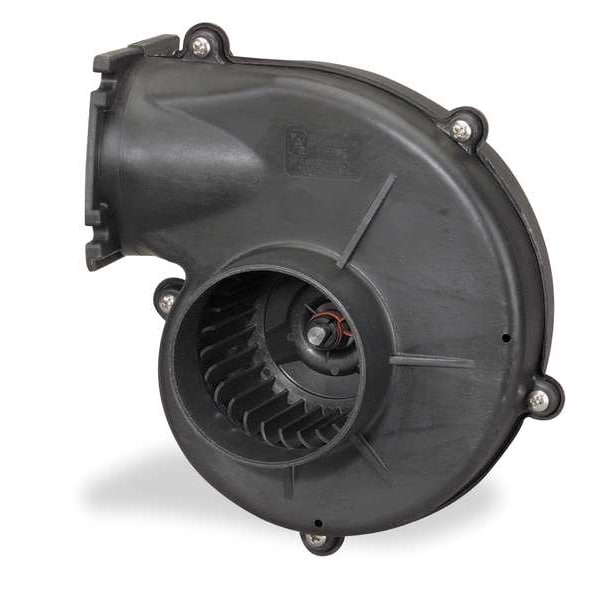

Round OEM Blower, 2870 RPM, 1 Phase, Direct Drive, Plastic
| Drive Type | Direct Drive |
|---|---|
| Full Load Amps | 0.7 |
| Housing Material | Plastic |
| Inlet Dia. | 3 in |
| Overall Height | 7-5/8 in |
| Overall Width | 7 in |
| Phase | 1 |
| Blower Item | Plastic Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Wheel Diameter | 3-1/4 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Lead Length | 13 in |
| Bearing Type | Sleeve |
| Outlet Dia. | 2-5/8 in |
| Motor Enclosure | Open Dripproof |
| CFM @ 0.600-In. SP | 14 |
| CFM @ 0.400-In. SP | 56 |
| CFM @ 0.000-In. SP | 100 |
| Hz | 60 |
| Overall Depth | 6-5/8 in |
| Item | OEM Blower |
| Max. Ambient Temp. | 130 deg F |
| Max. Inlet Temp. | 104 deg F |
| Agency Compliance | NMMA |
| CFM @ 0.200-In. SP | 75 |
| Blower Wheel Width | 1-15/16 in |
| RPM | 2,870 |
| Mounting Position | Shaft Horizontal |
| Wheel Type | Forward-Curved |
| Outlet Width | Not Applicable |
| Outlet Height | Not Applicable |
| Wheel Width | 1-15/16 in |
| Airflow @ 0.400 in SP | 56 cfm |
| Includes Motor | Yes |
| Current | 0.7 A |
| Motor Duty Class | Intermittent |
| Outlet Shape | Round |
| Electrical Connection | Wire Leads |
| Nameplate Voltage | 115V AC |
| Assembly | Assembled |
| Standards | NMMA |
| Resistance Properties | Corrosion Resistant |
| Flange Type | Flanged |
| Motor Type | Shaded Pole |
| Maximum Inlet Air Temperature | 104 deg F |
| Thermal Overload Protection | Yes |
| Maximum Ambient Temperature | 130 deg F |
| Inlet Diameter | 3 in |
| Motor Speed | 2,870 rpm |
| Frequency | 60 Hz |
| Includes Drive Package | Yes |
| Mounting Orientation | Horizontal |
| Number of Inlets | 1 |
| Features | Low Current Draw, and Slip-On Inlet Ducting Connection |
| Maximum Fan Speed | 2,870 rpm |
| Wheel Material | Plastic |
| Corrosion Resistant | Yes |
| Application | Emergency Backup Ventilation Portable Equipment, Marine, Motor, Recreational Vehicles |
| Outlet Diameter | 2-5/8 in |
| Airflow @ 0.000 in SP | 100 cfm |
| Wheel Diameter | 3-1/4 in |
| OEM Replacement | No |
| Type | Flange Mount |
| Voltage | 115 |
| Mounting | Shaft Horizontal |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
