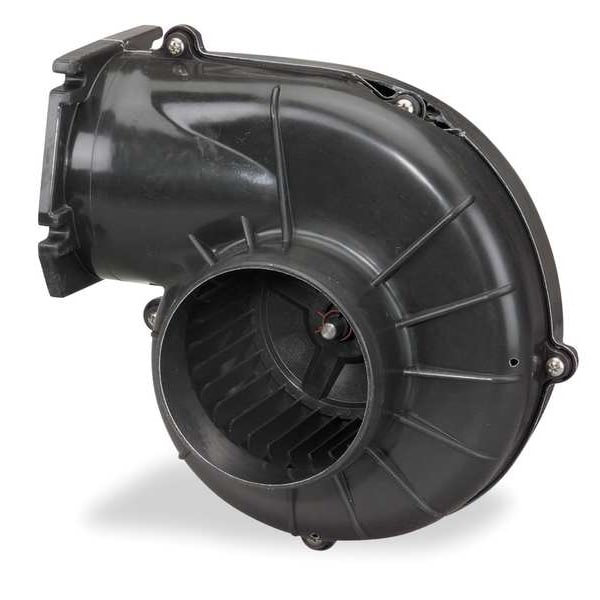

Round OEM Blower, 3115 RPM, 1 Phase, Direct Drive, Plastic
| Drive Type | Direct Drive |
|---|---|
| Full Load Amps | 10 |
| Housing Material | Plastic |
| Inlet Dia. | 4 in |
| Overall Height | 9 in |
| Overall Width | 8-3/4 in |
| Phase | 1 |
| Blower Item | Plastic Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Wheel Diameter | 4-1/2 in |
| Blower Motor Type | DC |
| Blower Voltage | 12V DC |
| Blower Thermal Protection | No Thermal Protection |
| Blower Conduit Box | No |
| RPM | 3,115 |
| Agency Compliance | ISO 9097 Marine and ISO 8846, NMMA/USCG Regulation 183.410 |
| Overall Depth | 8-3/4 in |
| CFM @ 2.000-In. SP | 108 |
| CFM @ 1.000-In. SP | 199 cfm |
| CFM @ 0.400-In. SP | 225 |
| CFM @ 0.000-In. SP | 250 |
| CFM @ 1.600-In. SP | 156 cfm |
| Item | OEM Blower |
| Max. Ambient Temp. | 130 deg F |
| Blower Wheel Width | 2-1/2 in |
| Bearing Type | Sleeve |
| Outlet Dia. | 3-3/4 in |
| CFM @ 0.200-In. SP | 236 |
| CFM @ 0.800-In. SP | 208 |
| Wheel Type | Forward-Curved |
| Lead Length | 13 in |
| Motor Enclosure | Open Dripproof |
| CFM @ 0.600-In. SP | 218 |
| Mounting Position | Shaft Horizontal |
| Hz | 60 |
| Max. Inlet Temp. | 104 deg F |
| CFM @ 1.200-In. SP | 188 cfm |
| Outlet Height | Not Applicable |
| Outlet Width | Not Applicable |
| Frequency | 60 Hz |
| Motor Speed | 3,115 rpm |
| Thermal Overload Protection | No |
| Nameplate Voltage | 12V DC |
| Maximum Inlet Air Temperature | 104 deg F |
| Maximum Ambient Temperature | 130 deg F |
| Airflow @ 0.400 in SP | 225 cfm |
| Electrical Connection | Wire Leads |
| Corrosion Resistant | Yes |
| Wheel Material | Plastic |
| Airflow @ 0.000 in SP | 250 cfm |
| Inlet Diameter | 4 in |
| Airflow @ 1.000 in SP | 199 cfm |
| Application | Emergency Backup Ventilation Portable Equipment, Marine, Motor, Recreational Vehicles |
| Includes Drive Package | Yes |
| Current | 10 A |
| Resistance Properties | Corrosion Resistant |
| Includes Motor | Yes |
| Maximum Fan Speed | 3,115 rpm |
| Assembly | Assembled |
| Flange Type | Flanged |
| Outlet Shape | Round |
| Number of Inlets | 1 |
| Outlet Diameter | 3-3/4 in |
| Mounting Orientation | Horizontal |
| Standards | ISO 8846, ISO 9097, NMMA |
| Motor Duty Class | Intermittent |
| Wheel Diameter | 4-1/2 in |
| Airflow @ 2.000 in SP | 108 cfm |
| Wheel Width | 2-1/2 in |
| Features | Low Current Draw, and Slip-On Inlet Ducting Connection |
| OEM Replacement | No |
| Mounting | Shaft Horizontal |
| Voltage | 12VDC |
| Type | Flange Mount |
| Motor Type | Permanent Magnet DC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
