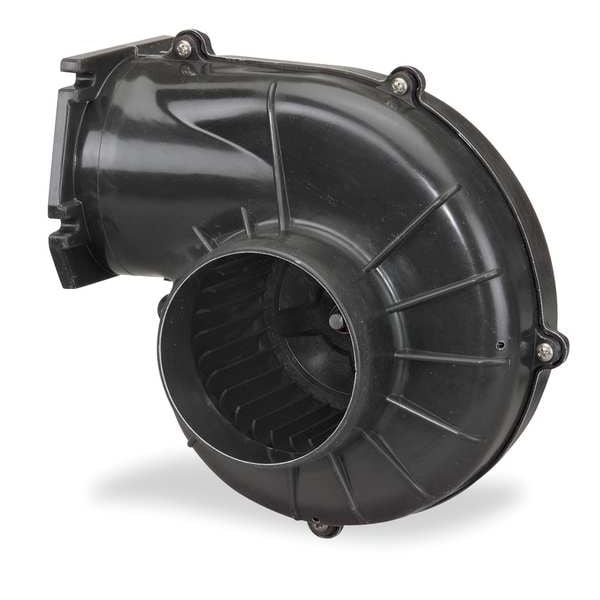

Round OEM Blower, 3200 RPM, 1 Phase, Direct Drive, Plastic
| CFM @ 0.100-In. SP | 245 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 1.5 |
| Housing Material | Plastic |
| Inlet Dia. | 4 in |
| Overall Height | 9 in |
| Overall Width | 9-3/8 in |
| Phase | 1 |
| Blower Item | Plastic Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Wheel Diameter | 4-1/2 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | No Thermal Protection |
| Blower Conduit Box | No |
| Housing Finish | Black |
| CFM @ 1.000-In. SP | 200 cfm |
| Motor Insulation | Class B |
| CFM @ 0.000-In. SP | 250 |
| Blower Wheel Width | 2-1/2 in |
| Max. Ambient Temp. | 130 deg F |
| CFM @ 1.200-In. SP | 185 cfm |
| CFM @ 0.150-In. SP | 243 cfm |
| Bearing Type | Ball |
| Hz | 60 |
| RPM | 3,200 |
| CFM @ 0.600-In. SP | 225 |
| Overall Depth | 8-3/4 in |
| CFM @ 0.500-In. SP | 230 |
| CFM @ 0.300-In. SP | 240 |
| CFM @ 1.600-In. SP | 155 cfm |
| Mounting Position | Multi Positional |
| CFM @ 0.900-In. SP | 209 cfm |
| CFM @ 2.000-In. SP | 100 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| CFM @ 0.800-In. SP | 212 |
| Housing Color | Black |
| CFM @ 0.700-In. SP | 215 |
| Lead Length | 10 in |
| CFM @ 0.400-In. SP | 238 |
| CFM @ 0.200-In. SP | 241 |
| Max. Inlet Temp. | 130 deg F |
| Item | OEM Blower |
| Wheel Type | Forward-Curved |
| Outlet Dia. | 4 in |
| Outlet Width | Not Applicable |
| Outlet Height | Not Applicable |
| Maximum Inlet Air Temperature | 130 deg F |
| Motor Duty Class | Intermittent |
| Application | Emergency Backup Ventilation Portable Equipment, Marine, Motor, Recreational Vehicles |
| Electrical Connection | Wire Leads |
| Wheel Diameter | 4-1/2 in |
| Features | Low Current Draw, and Slip-On Inlet Ducting Connection |
| Corrosion Resistant | Yes |
| Wheel Material | Plastic |
| Nameplate Voltage | 115V AC |
| Airflow @ 0.500 in SP | 230 cfm |
| Maximum Fan Speed | 3,200 rpm |
| Inlet Diameter | 4 in |
| Flange Type | Flanged |
| Airflow @ 0.000 in SP | 250 cfm |
| Airflow @ 1.000 in SP | 200 cfm |
| Outlet Shape | Round |
| Airflow @ 0.100 in SP | 245 cfm |
| Maximum Static Pressure | 1.625 in wc |
| Frequency | 60 Hz |
| Includes Drive Package | Yes |
| Mount Type | Multiposition |
| Housing Material Finish | Black |
| Outlet Diameter | 4 in |
| Current | 1.5 A |
| Motor Insulation Class | B |
| Includes Motor | Yes |
| Motor Type | Shaded Pole |
| Maximum Ambient Temperature | 130 deg F |
| Airflow @ 2.000 in SP | 100 cfm |
| Resistance Properties | Corrosion Resistant |
| Thermal Overload Protection | No |
| Motor Speed | 3,200 rpm |
| Assembly | Assembled |
| Number of Inlets | 1 |
| Wheel Width | 2-1/2 in |
| Airflow @ 0.400 in SP | 238 cfm |
| OEM Replacement | No |
| Type | Flange Mount |
| Mounting | Multi Positional |
| Voltage | 115 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
