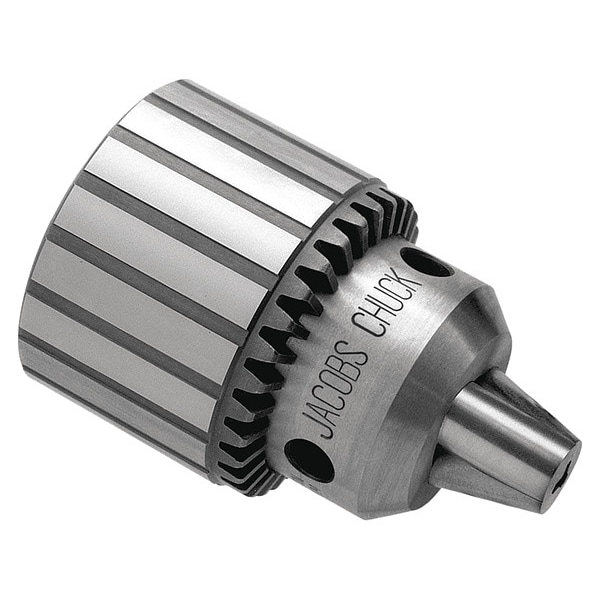

34-06 Plain Bearing Heavy Duty 1/2" Chuck
| Item | Drill Chuck |
|---|---|
| Includes | Not Applicable |
| Key Number | K3 |
| Mounting Size | JT6 |
| Capacity Min. | 0.040" |
| Nominal Capacity | 1/2 in |
| Chuck Type | Heavy Duty |
| Bearing Type | Plain |
| Mounting Type | Jacobs Taper |
| Material | Steel |
| Capacity Max. | 0.500" |
| For Use With | CNC Machining |
| Application | Coolant Thru, Drilling, High-Speed, Milling |
| Features | Hardened Keyholes, Hardened Nose, Jaws Center-Grind for Straightness and Alignment, Through-Hardened Sleeve Teeth |
| For Shank Type | Straight |
| Min. Drill Capacity | 0.0400" |
| Keying | Keyed |
| Max. Drill Capacity | 1/2 in |
| Product Type | Drill Chuck |
| T.I.R. Tolerance | 0.004 in |
| Includes Sleeve | Sleeve Included |
| Torque - Maximum | Not Applicable |
| Outside Diameter - Maximum | 2.04 in |
| Jacobs Taper Drive Type | Standard Drive |
| Includes Key | Chuck Key Included |
| Overall Length | 2-47/64 in |
| Series | 34 |
| Duty Rating | Heavy |
| Compatible Drill Diameter - Maximum | 1/2 in |
| Compatible Drill Diameter - Minimum | 3/64 in |
| Package Quantity | 1 |
