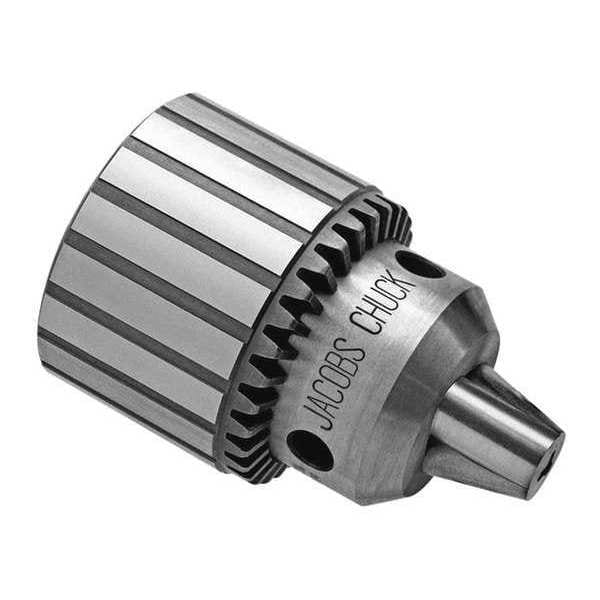

36B-5/8" Plain Bearing Heavy Duty 3/4" Chuck
| Item | Drill Chuck |
|---|---|
| Chuck Type | Keyed |
| Material | Steel |
| Bearing Type | Plain |
| Capacity Max. | 0.8 in |
| Capacity Min. | 0.188 in |
| Mounting Size | 5/8"-16 |
| Mounting Type | Threaded |
| Nominal Capacity | 3/4 in |
| Includes | Chuck Key |
| Key Number | K4 |
| Material - Machining | High Speed Steel |
| Min. Drill Capacity | 3/16 in |
| For Use With | Machine Tools |
| Max. Drill Capacity | 0.8 in |
| Keying | Keyed |
| Product Type | Drill Chuck |
| Type | Heavy Duty |
| Compatible Drill Diameter - Maximum | 51/64 in |
| Overall Length | 3-13/64 in |
| Features | Hardened Keyholes, Hardened Nose, Jaws Center-Grind for Straightness and Alignment, Through-Hardened Sleeve Teeth |
| Torque - Maximum | Not Applicable |
| Includes Sleeve | Sleeve Included |
| Outside Diameter - Maximum | 2.54 in |
| Series | 36 |
| Compatible Drill Diameter - Minimum | 3/16 in |
| Includes Key | Key Included |
| Duty Rating | Heavy |
| T.I.R. Tolerance | 0.004 in |
| Package Quantity | 1 |
