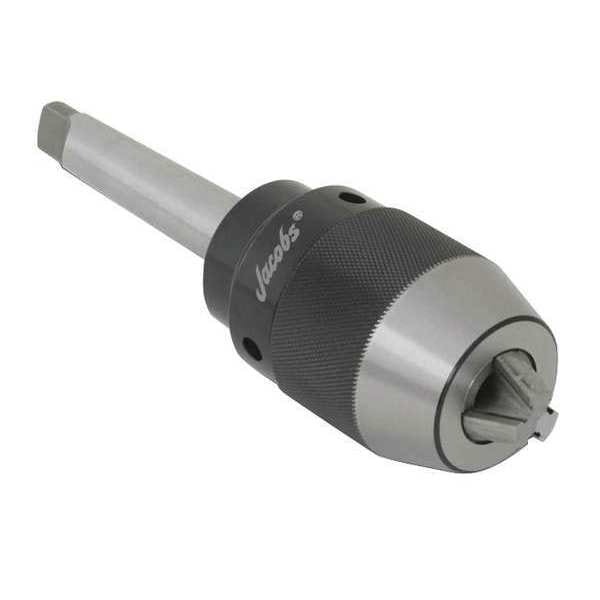

JK 160-R8 High Torque / High Precision Keyless 16mm Chuck with shnak
| Item | Drill Chuck |
|---|---|
| Chuck Type | High Torque |
| Material | Steel |
| Bearing Type | Ball |
| Capacity Max. | 0.63 in |
| Capacity Min. | 0.118 in |
| Mounting Size | R8 |
| Mounting Type | R8 |
| Key Number | Not Applicable |
| Nominal Capacity | 5/8 in |
| Includes | Wrench |
| Material - Machining | High Speed Steel |
| For Use With | Machine Tools |
| Keying | Keyless |
| Application | CNC Machines |
| Max. Drill Capacity | 5/8 in |
| Features | Compact Design Eliminates Accumulated Tolerance |
| Min. Drill Capacity | 0.118 in |
| Product Type | Drill Chuck |
| Type | High Torque with Intergrated Shank |
| Includes Arbor | Arbor Included |
| Compatible Drill Diameter - Maximum | 5/8 in |
| Duty Rating | Heavy |
| Includes Key | Key Not Included |
| T.I.R. Tolerance | 0.0016 in |
| Overall Length | 3-11/32 in |
| Compatible Drill Diameter - Minimum | 1/8 in |
| Outside Diameter - Maximum | 2.13 in |
| Torque - Maximum | Not Applicable |
| Series | JK |
| Package Quantity | 1 |
