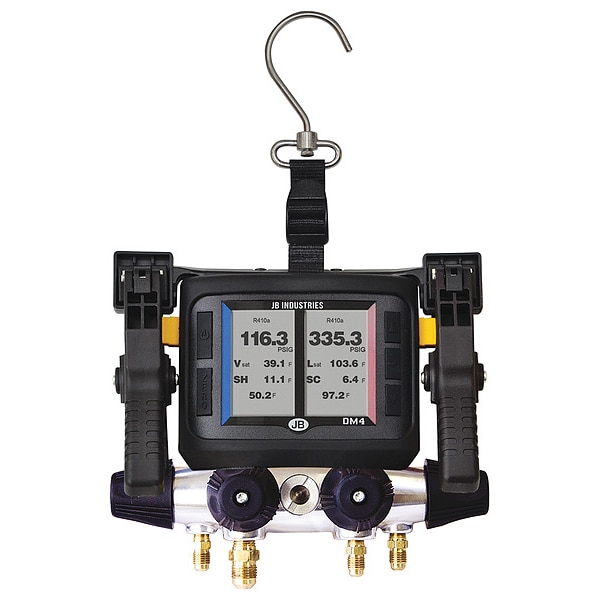

Digital Manifold Gauge, 4-Valves, Hose Length: 60 in
| Item | Manifold Gauge Kit |
|---|---|
| Number of Valves | 4 |
| Refrigerant Compatibility | Multiple Refrigerants |
| Number of Hoses | 4 |
| Vacuum Port Size | 3/8 in |
| Gauge Accuracy | +/-0.5-1-2% |
| Standards | UL Listed |
| Features | Calculates Superheat, Subcooling, Vapor and Liquid Saturation, Laser Welded Stainless Steel Transducers, Universal K-Type Clamp Thermocouples, Easy to Navigate Transflective Display Menu, Protective Boot and Water-Resistant Design, Heavy-Duty Zeppelin(R) Design, Faster Evacuation with Quarter Turn Full Open/Close Handle |
| Gauges High Side Red | 0 to 1000 psi |
| Hose Length | 5 ft |
| Gauges Low Side Blue | 29 inHg to 800 psi |
| Material | Aluminum |
| Includes | Carrying Case, Hanging Hook, K-Type Temperature Clamps |
| Product Type | Manifold Gauge Kit |
| Vacuum Port Connection Type | SAE |
| Gauge Type | High Side, Low Side |
| Vacuum Port Connection Gender | Male |
| Overall Height | 13 in |
| High Side Display Pressure - Minimum | 0 psi |
| Includes Sightglass | Sightglass Included |
| Manifold Port Connection Gender | Male |
| Manifold Port Connection Type | SAE |
| App Compatibility | Not Applicable |
| Low Side Display Pressure - Maximum | 1,000 psi |
| Gauge Diameter | 3 in |
| For Refrigerant Type | R-11, R-113, R-114, R-12, R-123, R-1234YF, R-1234ZE, R-124, R-125, R-13, R-134A, R-22, R-227EA, R-23, R-290, R-32, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407C, R-407F, R-408A, R-409A, R-410A, R-411A, R-413A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-434A, R-435A, R-437A, R-438A, R-448A, R-449A, R-454B, R-458A, R-500, R-502, R-503, R-507A, R-508B, R-600, R-600A, R-718, R-744 |
| Display Type | Digital |
| Warranty | 1 yr |
| Accuracy | +/- 0.5-1-2% |
| Response Time | 1 sec |
| Pressure Resolution | 0.1 psi |
| Includes Batteries | Batteries Included |
| Display Illumination | Backlit |
| Gauge Fill | Not Applicable |
| Pressure Units Measured | psi, Pa |
| Vacuum Port Connection Size | 3/8 in |
| Includes Vacuum Port | Vacuum Port Included |
| Includes Gauge Boots | Boot Not Included |
| Calibration Certificate Type | Not Certified |
| Overall Width | 8-1/2 in |
| A2L Compatibility | A2L Compatible |
| Temperature Units Measured | Degrees F |
| Low Side Display Pressure - Minimum | 30 inHg |
| Manifold Port Connection Size | 3/8 in |
| Manifold Port Connection Thread Direction | Right-Hand |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Temperature Resolution | 0.1 deg F |
| Battery Type | AA |
| High Side Display Pressure - Maximum | 1,000 psi |
| Number of Batteries | 3 |
| Series | ZEPPELIN |
| Hose Connection Thread Direction | Right-Hand |
| Body Material | Aluminum |
| Power Source | Battery |
| Overall Depth | 14 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
