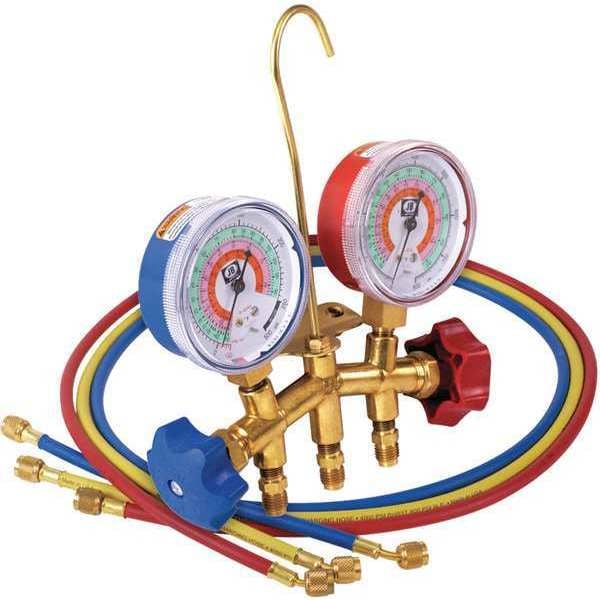

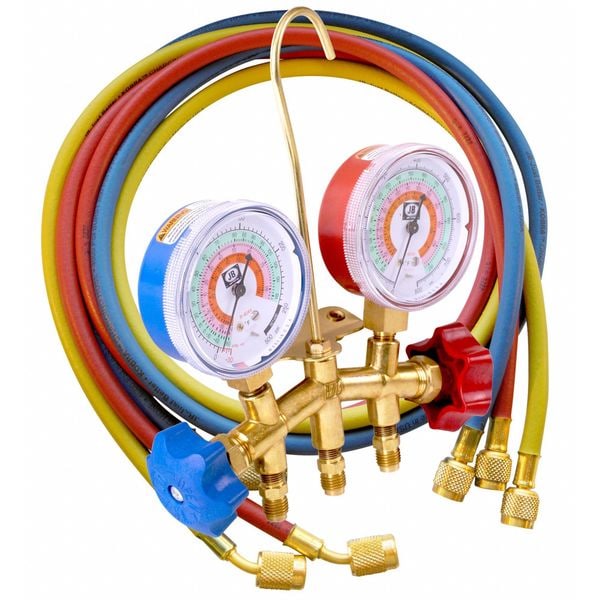

Manifold Gauge, 2-Valve
| Item | Manifold Gauge Kit |
|---|---|
| Number of Valves | 2 |
| Refrigerant Compatibility | R-22, R-404A, R-410A |
| Number of Hoses | 3 |
| Vacuum Port Size | 1/4 in |
| Includes | 60 in High Pressure Color Coded Hose Set |
| Hose Length | 5 ft |
| Material | Brass |
| Features | Secure Seal Hose, Easy Turning Plastic Hand Wheels, All Metal Gauges |
| Gauges Low Side Blue | 30 inHg to 500 psi |
| Gauges High Side Red | 0 to 800 psi |
| Gauge Accuracy | +/-3-2-3% |
| Overall Width | 3-1/2 in |
| For Use With | R-22, R-404A, R-410A |
| Overall Height | 13 in |
| Product Type | Manifold Gauge Kit |
| Type | Air Conditioning and Stationary Refrigeration |
| Gauge Diameter | 2-1/2 in |
| Hose Connection Thread Direction | Right-Hand |
| Warranty | 1 yr |
| Series | M2 |
| Manifold Port Connection Size | 1/8 in |
| Low Side Display Pressure - Minimum | 30 inHg |
| A2L Compatibility | A2L Compatible |
| Includes Gauge Boots | Boot Not Included |
| For Refrigerant Type | R-22, R-404A, R-410A |
| Response Time | Instantaneous |
| Temperature Units Measured | Degrees F |
| Manifold Port Connection Thread Direction | Right-Hand |
| Temperature Resolution | 1 deg F |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Automatic Shut-Off Time | Not Applicable |
| Overall Depth | 9-1/4 in |
| Low Side Display Pressure - Maximum | 500 psi |
| Manifold Port Connection Gender | Male |
| Calibration Certificate Type | Not Certified |
| Manifold Port Connection Type | SAE |
| App Compatibility | Not Applicable |
| Display Type | Analog |
| Accuracy | +/- 3-2-3% |
| Vacuum Port Connection Type | SAE |
| High Side Display Pressure - Maximum | 800 psi |
| Vacuum Port Connection Gender | Male |
| Gauge Type | High Side, Low Side |
| Display Illumination | Non-Illuminated |
| Body Material | Brass |
| Pressure Units Measured | in Hg, psi |
| High Side Display Pressure - Minimum | 0 psi |
| Includes Sightglass | Sightglass Not Included |
| Vacuum Port Connection Size | 1/4 in |
| For Operating System | Not Applicable |
| Includes Vacuum Port | Vacuum Port Included |
| Pressure Resolution | 1 psi |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
