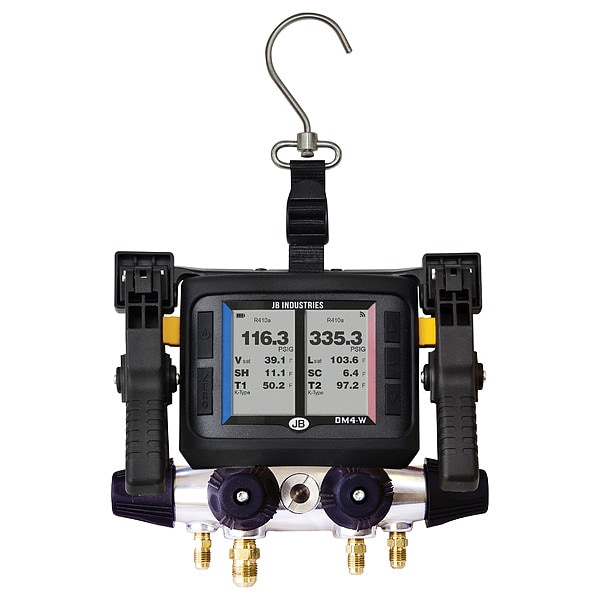

Manifold Gauge Kit, 5 ft L, 3 in Gauge
| Item | Manifold Gauge Kit |
|---|---|
| Number of Valves | 4 |
| Refrigerant Compatibility | R-11, R-113, R-114, R-12, R-123, R-1234yf, R-1234ze, R-124, R-125, R-13, R-134A, R-22, R-227EA, R-23, R-290, R-32, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407C, R-407F, R-408A, R-409A, R-410A, R-411A, R-413A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-434A, R-435A, R-437A, R-438A/MO99, R-448A, R-449A, R-458A, R-500, R-502, R-503, R-507A, R-508B, R-600, R-600A, R-718, R-744 |
| Number of Hoses | 4 |
| Vacuum Port Size | 3/8 in |
| Hose Length | 5 ft |
| Includes | Carrying Case, Hanging Hook, K-Type Temperature Clamps |
| Material | Aluminum, Stainless Steel |
| Features | 1 Year Warranty, Calculates Superheat, Subcooling, Vapor and Liquid Saturation, Convenient Strap with Hanging Hook, Measures High Side and Low Side Pressure (psi and kPa) and Temperature ( Degrees F and Degrees C), Protective Boot and Water Resistant Design, Simple, Easy-to-Navigate Menu with Transflective Display for Easy Reading in Direct Sunlight, Soft Grip Rubber Handwheels Reduce Turning to Open/Close, Universal K-Type Clamp Thermocouples, Wirelessly Connects to Smart Devices with JB GO App |
| Pressure Resolution | 0.1 psi |
| Vacuum Port Connection Gender | Male |
| Gauge Type | High Side, Low Side |
| Overall Width | 8-1/2 in |
| Includes Sightglass | Sightglass Included |
| Low Side Display Pressure - Maximum | 1,000 psi |
| Temperature Resolution | 0.1 deg F |
| High Side Display Pressure - Maximum | 1,000 psi |
| Gauge Fill | Not Applicable |
| A2L Compatibility | A2L Compatible |
| Power Source | Battery |
| Manifold Port Connection Type | SAE |
| Gauge Diameter | 3 in |
| Display Illumination | Backlit |
| Response Time | 1 sec |
| Includes Vacuum Port | Vacuum Port Included |
| Number of Batteries | 3 |
| Body Material | Aluminum |
| Overall Depth | 14 in |
| Manifold Port Connection Size | 3/8 in |
| Battery Type | AA |
| Pressure Units Measured | psi, Pa |
| Includes Batteries | Batteries Included |
| For Refrigerant Type | R-11, R-113, R-114, R-12, R-123, R-1234YF, R-1234ZE, R-124, R-125, R-13, R-134A, R-143A, R-152A, R-22, R-227EA, R-23, R-245FA, R-290, R-30, R-32, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407B, R-407C, R-407D, R-407E, R-407F, R-407H, R-408A, R-409A, R-409B, R-410A, R-410B, R-411A, R-411B, R-412A, R-413A, R-414A, R-414B, R-415A, R-415B, R-416A, R-417A, R-417C, R-418A, R-419A, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-423A, R-424A, R-425A, R-426A, R-427A, R-428A, R-429A, R-430A, R-431A, R-432A, R-433A, R-434A, R-435A, R-436B, R-437A, R-438A, R-441A, R-442A, R-443A, R-444A, R-448A, R-449A, R-450A, R-452A, R-453A, R-454B, R-458A, R-500, R-501, R-502, R-503, R-504, R-507A, R-508A, R-508B, R-509A, R-510A, R-512A, R-513A, R-600, R-600A, R-718, R-744 |
| Vacuum Port Connection Type | SAE |
| Overall Height | 13 in |
| Manifold Port Connection Thread Direction | Right-Hand |
| Warranty | 1 yr |
| App Compatibility | JB GO, JB GO V2 |
| High Side Display Pressure - Minimum | 0 psi |
| Temperature Units Measured | Degrees F |
| Product Type | Manifold Gauge Kit |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Display Type | Digital |
| Manifold Port Connection Gender | Male |
| Vacuum Port Connection Size | 3/8 in |
| Calibration Certificate Type | Not Certified |
| Includes Gauge Boots | Boot Not Included |
| Hose Connection Thread Direction | Right-Hand |
| Series | CLIMATE |
| Low Side Display Pressure - Minimum | 30 inHg |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
