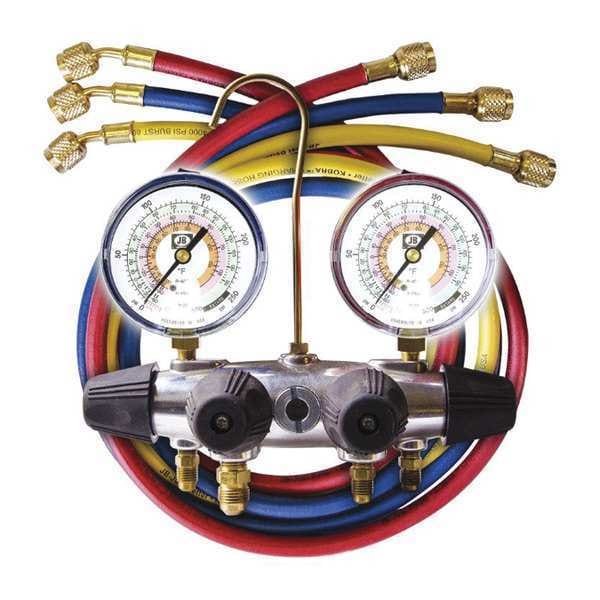

Mechanical Manifold Gauge Set, 4 Valves
| Item | Manifold Gauge Kit |
|---|---|
| Number of Valves | 4 |
| Refrigerant Compatibility | R-22, R-404A, R-410A |
| Number of Hoses | 4 |
| Vacuum Port Size | 3/8 in |
| Gauge Accuracy | +/-1.00% |
| Hose Length | 5 ft |
| Material | Brass |
| Features | LED Gauges |
| Gauges Low Side Blue | 30 inHg to 500 psi |
| Gauges High Side Red | 0 to 800 psi |
| Product Type | Manifold Gauge Kit |
| Response Time | Instantaneous |
| Pressure Units Measured | in Hg, psi |
| App Compatibility | Not Applicable |
| Accuracy | +/- 1% |
| Display Type | Analog |
| Includes Sightglass | Sightglass Included |
| High Side Display Pressure - Maximum | 800 psi |
| Body Material | Aluminum |
| Warranty | 1 yr |
| Series | ZEPPELIN |
| Temperature Units Measured | Degrees F |
| Vacuum Port Connection Size | 3/8 in |
| Gauge Type | High Side, Low Side |
| Temperature Resolution | 1 deg F |
| For Operating System | Not Applicable |
| Manifold Port Connection Gender | Male |
| Manifold Port Connection Type | SAE |
| Pressure Resolution | 1 psi |
| Vacuum Port Connection Gender | Male |
| Manifold Port Connection Thread Direction | Right-Hand |
| For Refrigerant Type | R-22, R-404A, R-410A |
| Manifold Port Connection Size | 3/8 in |
| Vacuum Port Connection Type | SAE |
| Calibration Certificate Type | Not Certified |
| Low Side Display Pressure - Maximum | 500 psi |
| Gauge Diameter | 3-1/8 in |
| Includes Gauge Boots | Boot Not Included |
| A2L Compatibility | A2L Compatible |
| High Side Display Pressure - Minimum | 0 psi |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Low Side Display Pressure - Minimum | 30 inHg |
| Includes Vacuum Port | Vacuum Port Included |
| Display Illumination | Backlit |
| Hose Connection Thread Direction | Right-Hand |
| Automatic Shut-Off Time | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
