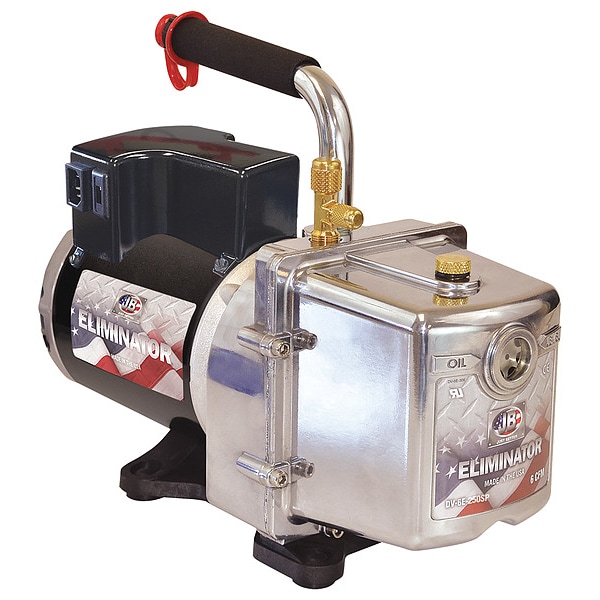

Refrigerant Evacuation Pump, 6.0 cfm, Hz: 50/60
| Item | Vacuum Pump |
|---|---|
| HP | 1/2 hp |
| Inlet Port Size | 1/4 in, 3/8 in |
| Voltage | 240V AC |
| Weight | 33 lb |
| Amps AC | 5 A |
| Displacement | 6 cfm |
| End Vacuum | 15 micron |
| Overall Length | 14 in |
| Overall Height | 9.1 in |
| Special Features | Ignition Proof |
| Oil Capacity | 25 fl oz |
| Cord | 6 ft |
| Hz | 50/60 Hz |
| Motor Type | Dual Voltage |
| Overall Width | 18 in |
| Body Material | Metal |
| Includes Hoist Clip | Hoist Clip Included |
| Includes Oil Mist Filter | Oil Mist Filter Not Included |
| Inlet 1 Port Connection Type | Flare |
| Inlet 3 Port Connection Thread Direction | Right-Hand |
| For Refrigerant Type | R-1234YF, R-32 |
| Includes Sightglass | Sightglass Included |
| Power Source | Plug-In |
| Inlet 2 Port Connection Type | Flare |
| Series | ELIMINATOR |
| Drive Type | Direct Drive |
| Connectivity | Not Applicable |
| Mobility | Handle |
| Horsepower | 0.5 |
| Standards | CE Certified, CSA Certified, EMC, UL Listed |
| Number of Batteries | Not Applicable |
| Warranty | 2 yr |
| A2L Compatibility | A2L Compatible |
| Current | 5 A |
| Ultimate Vacuum | 25 microns |
| Calibration Certificate Type | Not Certified |
| Inlet 3 Port Connection Gender | Not Applicable |
| Includes Vacuum Gauge | Gauge Not Included |
| Motor Speed | 1,725 rpm |
| Inlet 3 Port Connection Size | Not Applicable |
| Includes Isolation Valve | Isolation Valve Not Included |
| Includes Batteries | Not Applicable |
| Reservoir Port Connection Thread Direction | Right-Hand |
| Inlet 2 Port Connection Size | 3/8 in |
| Inlet 2 Port Connection Gender | Not Applicable |
| Plug Configuration | 6-15P |
| Inlet 2 Port Connection Thread Direction | Right-Hand |
| Drain Port Connection Thread Direction | Right-Hand |
| Number of Inlet Ports | 2 |
| Battery Type | Not Applicable |
| Inlet 1 Port Connection Size | 1/4 in |
| Product Type | Vacuum Pump |
| For Refrigerant Group | CFC, CO2, HC, HCFC, HFC, HFO, Propane |
| App Compatibility | Not Applicable |
| Number of Stages | Two-Stage |
| Includes Gas Ballast | Gas Ballast Not Included |
| Frequency | 60/50 Hz |
| Inlet 3 Port Connection Type | Not Applicable |
| Cord Length | 6 ft |
| Inlet 1 Port Connection Thread Direction | Right-Hand |
| Inlet 1 Port Connection Gender | Male |
| Battery Recharge | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
