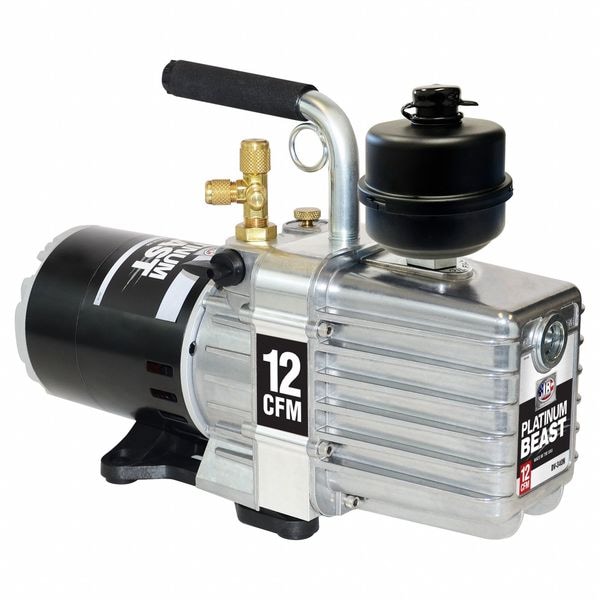

Vacuum Pump, 12 cfm, 15 micron, 120V AC
| Item | Vacuum Pump |
|---|---|
| HP | 1 hp |
| Inlet Port Size | 1/2 in, 1/4 in, 3/8 in |
| Voltage | 120V AC |
| Weight | 34 lb |
| Displacement | 12 cfm |
| End Vacuum | 15 micron |
| Body Material | Platinum |
| Special Features | Field Repairable |
| Motor Type | Dual Voltage |
| Oil Capacity | 32 fl oz |
| Features | Gas Ballast and Blank-Off Isolation Valve, Internal Check Valve Prevents Oil Backflow During Power Failure |
| Includes Isolation Valve | Isolation Valve Included |
| Includes Vacuum Gauge | Gauge Not Included |
| Warranty | 2 yr |
| For Refrigerant Group | CFC, CO2, HC, HCFC, HFC, HFO |
| Product Type | Vacuum Pump |
| App Compatibility | Not Applicable |
| Number of Inlet Ports | 3 |
| Includes Hoist Clip | Hoist Clip Included |
| Inlet 3 Port Connection Size | 1/2 in |
| Reservoir Port Connection Thread Direction | Right-Hand |
| Drain Port Connection Thread Direction | Right-Hand |
| Plug Configuration | 5-15P |
| Connectivity | Not Applicable |
| Inlet 2 Port Connection Size | 3/8 in |
| Horsepower | 1 |
| A2L Compatibility | A2L Compatible |
| Includes Gas Ballast | Gas Ballast Included |
| Inlet 3 Port Connection Type | Flare |
| Inlet 3 Port Connection Thread Direction | Right-Hand |
| Includes Sightglass | Sightglass Included |
| Calibration Certificate Type | Not Certified |
| Inlet 2 Port Connection Thread Direction | Right-Hand |
| Inlet 1 Port Connection Gender | Male |
| Inlet 2 Port Connection Type | Flare |
| Number of Stages | Two-Stage |
| Inlet 1 Port Connection Type | Flare |
| Inlet 1 Port Connection Size | 1/4 in |
| Inlet 2 Port Connection Gender | Not Applicable |
| Series | PLATINUM |
| Inlet 3 Port Connection Gender | Male |
| Includes Oil Mist Filter | Oil Mist Filter Included |
| Inlet 1 Port Connection Thread Direction | Right-Hand |
| Ultimate Vacuum | 15 microns |
| Drive Type | Direct Drive |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
