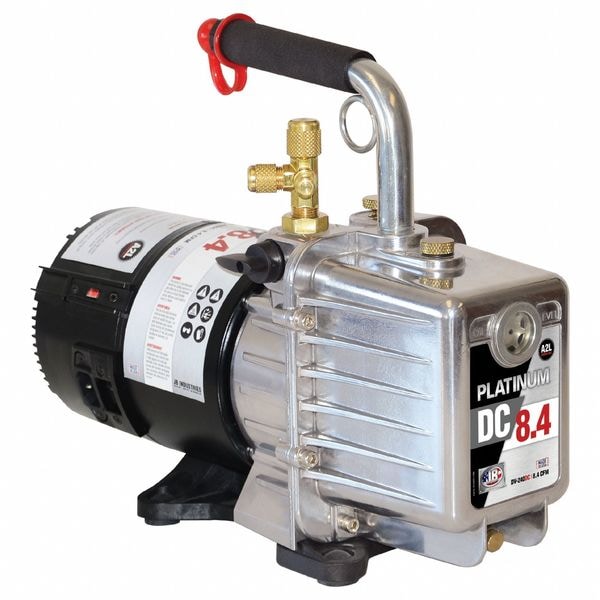

Vacuum Pump, 8.4 cfm, 15 micron, 120V AC
| Item | Vacuum Pump |
|---|---|
| HP | 1/2 hp |
| Inlet Port Size | 1/2 in, 1/4 in, 3/8 in |
| Voltage | 120V AC |
| Weight | 24 lb |
| Displacement | 8.4 cfm |
| End Vacuum | 15 micron |
| Overall Length | 14 in |
| Cord | 10 ft |
| Motor Type | Brushless DC |
| Special Features | Field Repairable |
| Includes | Brass Fittings, Splash Guard |
| Oil Capacity | 21 fl oz |
| Body Material | Platinum |
| Overall Height | 9 in |
| Overall Width | 18 in |
| Width | 18 in |
| Standards | CE Certified, UL Listed |
| Height | 9 in |
| Features | Blank-Off Isolation Valve, Gas Ballast, Internal Check Valve, Wide Voltage Operating Range |
| Plug Configuration | 5-15P |
| App Compatibility | Not Applicable |
| Includes Gas Ballast | Gas Ballast Included |
| Power Source | Plug-In |
| Drain Port Connection Thread Direction | Right-Hand |
| Inlet 1 Port Connection Type | Flare |
| Product Type | Vacuum Pump |
| Calibration Certificate Type | Not Certified |
| Warranty | 2 yr |
| Number of Batteries | Not Applicable |
| Cord Length | 10 ft |
| Inlet 1 Port Connection Size | 1/2 in |
| Includes Batteries | Not Applicable |
| For Refrigerant Group | CFC, CO2, HC, HCFC, HFC, HFO |
| Connectivity | Not Applicable |
| Number of Stages | Two-Stage |
| Inlet 1 Port Connection Gender | Male |
| Includes Isolation Valve | Isolation Valve Included |
| A2L Compatibility | A2L Compatible |
| Inlet 2 Port Connection Size | 1/4 in |
| Ultimate Vacuum | 15 microns |
| Inlet 2 Port Connection Gender | Not Applicable |
| Inlet 3 Port Connection Type | Flare |
| Includes Sightglass | Sightglass Included |
| Drive Type | Direct Drive |
| Inlet 3 Port Connection Size | 3/8 in |
| Inlet 2 Port Connection Type | Flare |
| Number of Inlet Ports | 3 |
| Battery Type | Not Applicable |
| Battery Recharge | Not Applicable |
| Reservoir Port Connection Thread Direction | Right-Hand |
| Includes Hoist Clip | Hoist Clip Included |
| Inlet 2 Port Connection Thread Direction | Right-Hand |
| Horsepower | 0.5 |
| Includes Oil Mist Filter | Oil Mist Filter Not Included |
| Inlet 3 Port Connection Gender | Male |
| Inlet 3 Port Connection Thread Direction | Right-Hand |
| Includes Vacuum Gauge | Gauge Not Included |
| Inlet 1 Port Connection Thread Direction | Right-Hand |
| Series | PLATINUM |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
