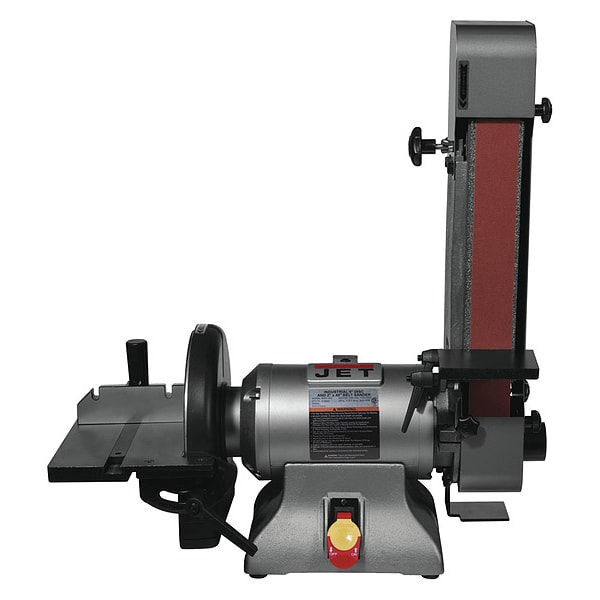

Combo Wheel and Belt Grinder
| Item | Belt and Disc Sander |
|---|---|
| Voltage | 115 V |
| Cord Length | 72 in |
| Phase | Single-Phase |
| Standards | CSA |
| Tool Weight | 74 lb |
| Switch Type | TACT |
| Features | Aluminum Disc Reduces Heat Buildup, Cast Iron Work Rests with Tool-Less Adjustments, Contact Wheel Grinding with Toolless Access, Belt Tracking, Heavy Cast Iron Bases Reduce Vibration, Solid Cast Iron Platen Offers Rigid Grinding Surface, Two Dust Collection Ports Minimize Debris Build Up |
| Application | Deburring and Finishing/Polishing of Both Ferrous and Nonferrous Alloy, Radiusing |
| Table Material | Cast Iron |
| Tool Length | 23-1/2 in |
| Max. Belt Speed | 4,712 SFPM |
| Electrical Protection | Safety Switch |
| Disc Table Angle Setting | Yes |
| Min. Belt Width | 2 in |
| Dust Management | Yes |
| Duty | Heavy -Duty |
| Overall Width | 15 in, 26-3/4 in |
| Disc Table Tilting Angle | 45 Degrees |
| Belt Length | 48 in |
| Belt Orientation | Horizontal, Vertical |
| Belt Table Angle Setting | Yes |
| Plug Type | Three-Prong |
| Min. Disc Speed | 3,600 rpm |
| Grinding Wheel Grit | 80 |
| Belt Table Size | 3 in x 4-3/8 in |
| Max. Belt Width | 2 in |
| Disc Table Size | 5 7/8 in x 11 7/8 in |
| Overall Height | 12-1/4 in, 25-7/8 in |
| Disc Table Material | Cast Iron |
| Frequency | 60 Hz |
| Bearing Type | Sealed Bearing |
| Min. Belt Speed | 4,712 SFPM |
| Lights Included | No |
| Belt Table Tilting Angle | 45 Degrees |
| Horsepower | 1 |
| Dust Collection Port Size | 2 in |
| Electrical Connection | AC Powered |
| Max. Disc Speed | 3,600 RPM |
| Current | 11 A |
| Overall Length | 23-1/2 in |
| Belt Table Material | Cast Iron |
| Maximum Disc Table Tilt-In Angle | Not Applicable |
| Grinding Wheel Diameter | 9 in |
| Belt Speed | 4,712 SFPM |
| Tool Width | 26-3/4 in |
| Speed Settings | Fixed |
| Disc Table Width | 5-7/8 in |
| Belt Width | 2 in |
| Disc Table Length | 11-7/8 in |
| Compatible Workpiece Material | Metal |
| Maximum Disc Diameter | 9 in |
| Minimum Disc Speed | 3,600 rpm |
| Belt Table Length | 4-3/8 in |
| Product Type | Belt and Disc Grinder |
| Maximum Motor Speed | 3,600 rpm |
| Grinding Wheel Speed | 3,600 rpm |
| Power Source | Corded |
| Maximum Disc Speed | 3,600 RPM |
| Tool Height | 25-7/8 in |
| Mounting Location | Benchtop |
| Belt Table Width | 3 in |
| Maximum Disc Table Tilt-Out Angle | 45 Degrees |
| Number of Speeds | 1 |
| Package Quantity | 1 |
