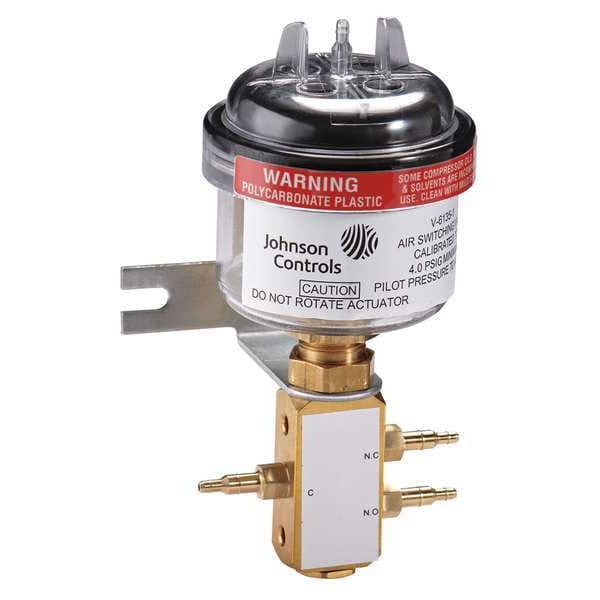

Air Switching Valve, 1/4 in Barb, 15 to 19 psi
| Item | Air Switching Valve |
|---|---|
| Control Air Pressure | 15 to 19 psi |
| Air Connections | 1/4 in Barb |
| Normally Open / Normally Closed | Normally Open/Normally Closed |
| Height | 3 in |
| Width | 5 in |
| Depth | 3 in |
| Temp. Control Range | 40 to 125 deg F |
| Max. Air Pressure | 75 psi |
| Air Consumption | 1.5 cfm |
| Includes | Bracket |
| Product Type | Air Switching Valve |
| Control Pressure - Maximum | 25 psi |
| Switch Type | Normally Open and Normally Closed |
| Air Connection Size | 5/32 in |
| Overall Height | 4-13/16 in |
| Air Connection Type | Barb |
| Switchover Pressure - Maximum | 19 psi |
| Input Pressure - Maximum | 75 psi |
| Switchover Pressure - Minimum | 15 psi |
| Overall Width | 2-3/4 in |
| Maximum Operating Temperature | 125 deg F |
| Overall Length | 3-1/8 in |
| Minimum Operating Temperature | 40 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
