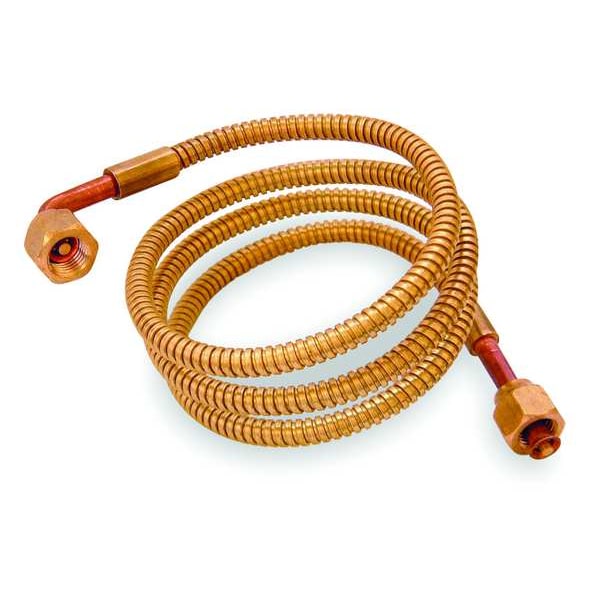

Armored Capillary, 0.060" ID x 48" L
| Item | Armored Capillary Tubing |
|---|---|
| Connection Size | 1/4 in SAE Female Flare |
| For Use With | All Common Non-Corrosive Refrigerants |
| Outside Dia. | 1/8 in |
| Inside Dia. | 0.06 in |
| Max. Working Pressure | 600 psi |
| Includes | One Straight End and One 90 Degrees End |
| Length | 48 in |
| Temp. Range | -50 Degrees to 350 Degrees F |
| Standards | CCN SFCS2, CCN SFCS8, UL Recognized SA9457 |
| Tubing Material | Copper |
| Sleeve Material | Brass |
| Operating Pressure - Maximum | 690 psi |
| Inside Diameter | 0.06 in |
| Overall Length | 48 in |
| Second Connection Size | 1/4 in |
| Second Connection Gender | Female |
| Outside Diameter | 0.13 in |
| Second Connection Type | SAE Flare |
| First Connection Gender | Female |
| Operating Temperature - Minimum | -50 deg F |
| First Connection Depressor | Depressor Not Included |
| First Connection Angle | Straight |
| Second Connection Depressor | Depressor Not Included |
| First Connection Type | SAE Flare |
| First Connection Size | 1/4 in |
| Operating Temperature - Maximum | 350 deg F |
| Second Connection Angle | 90 Degrees Elbow |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
